Watts WVS-C-MJXMJ-RP-BFG 4 - Part of the WVS Series

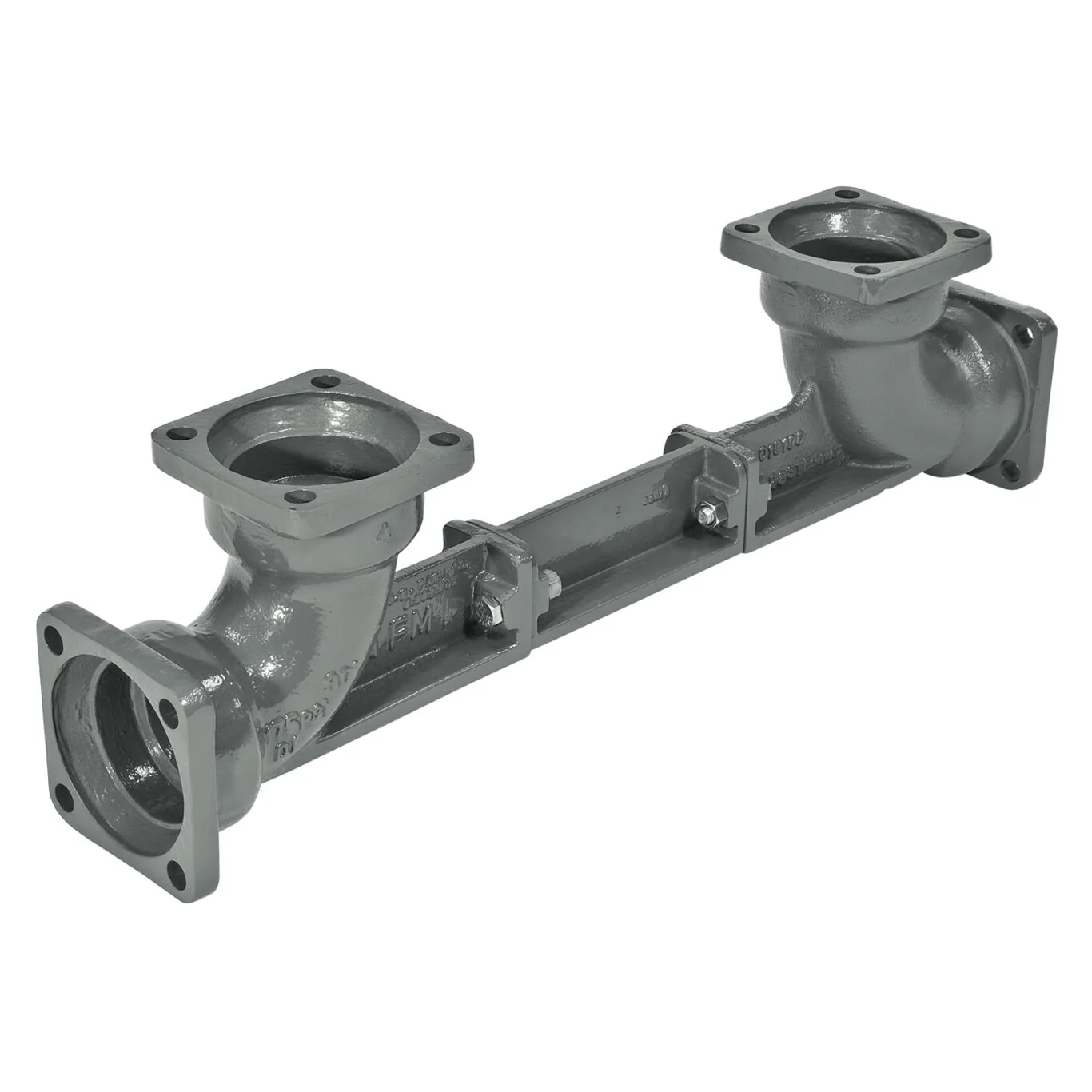

This 4 inch ductile iron valve setter with mechanical joint by mechanical joint connections is designed to augment the installation of the N-shape 957N BFG and 957N RPDA BFG backflow preventer assemblies only. This valve setter is constructed of fusion epoxy coated ductile iron and has an integral ductile iron support between elbows transfers thrust downstream, thus eliminating thrust block requirements between elbows. Mechanical joint restraint devices may be used at the pipe connections, depending on local conditions. Maximum working pressure is 175 psi (12.1 bar).

Features

• For use with 957N BFG and 957N RPDA BFG
• Flanges have ANSI B16.1 Class 125 (Standard) ANSI AWWA C153 A21.53-107
• Maximum working pressure is 175 psi (12.1 bar)
• Corrosion resistant fusion epoxy coated
• Eliminates the need for thrust blocks or other restraints at the point of installation

Specifications
Body Coating Type	Fusion Epoxy Coated
Body Material	Ductile Iron
Brand	Watts
Center Joint Bolt Material	Stainless Steel
Center Joint Nut Material	Stainless Steel
Diameter	4 IN
EAN	098268381429
Inlet Connection Size	4 IN
Inlet Connection Size-Metric	100 MM
Inlet Connection Type	Mechanical Joint
Lead Free	YES
Maximum Working Pressure-BAR	12.10
Maximum Working Pressure-PSI	175
Outlet Connection Size	4 IN
Outlet Connection Type	Mechanical Joint
Part Number	0107229
Series	WVS
Temperature Range	32 to 140 degree F,0 to 60 degree C

• Specification Sheet - WVS

UPC - 098268381429
