Watts WTD-600 3/4 - Part of the WTD Series

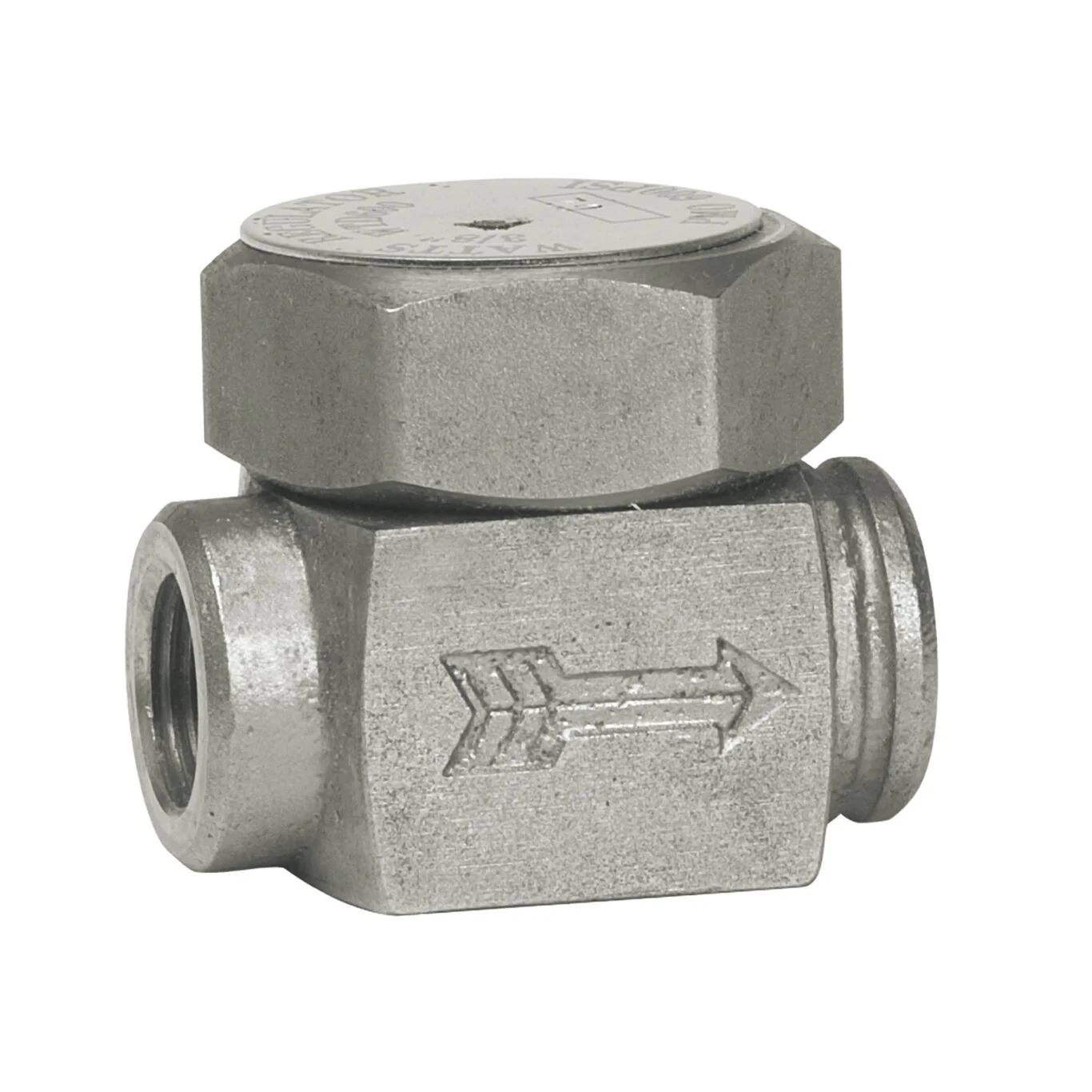

This thermodynamic steam trap, 3/4 IN Watts Model WTD, is used to efficiently drain steam mains, steam tracing lines, and small process equipment. It consists of a stainless steel body construction, stainless steel cap, and stainless steel disc. It provides a tight shutoff, is water hammer resistant, and drains condensate at saturation temperatures. It is ideal for use in steam main drainage, superheated steam applications, stream tracing lines, freeze protection for outside applications, and small process equipment.

Features

• Compact design
• Water hammer resistant
• Tight shutoff
• Stainless steel body

Specifications
Body Material	Stainless Steel
Brand	Watts
Buy American Act Compliant	NO
EAN	098268634372
Hydronic Item Type	Steam Trap
Inlet Connection Size	3/4 IN
Inlet Connection Size-Metric	20 MM
Inlet Connection Type	Female Threaded
Inlet Thread Type	NPT
Lead Free	NO
Maximum Operating Temperature-Fahrenheit	800
Maximum Pressure-PSI	600
Maximum Steam Pressure-PSI	600
Maximum Temperature-Fahrenheit	800
Maximum Working Pressure-PSI	600
Minimum Working Pressure-PSI	3.50
Outlet Connection Size	3/4 IN
Outlet Connection Type	Male Threaded
Outlet Thread Type	NPT
Part Number	0038202
Series	WTD

• Specification Sheet

UPC - 098268634372
