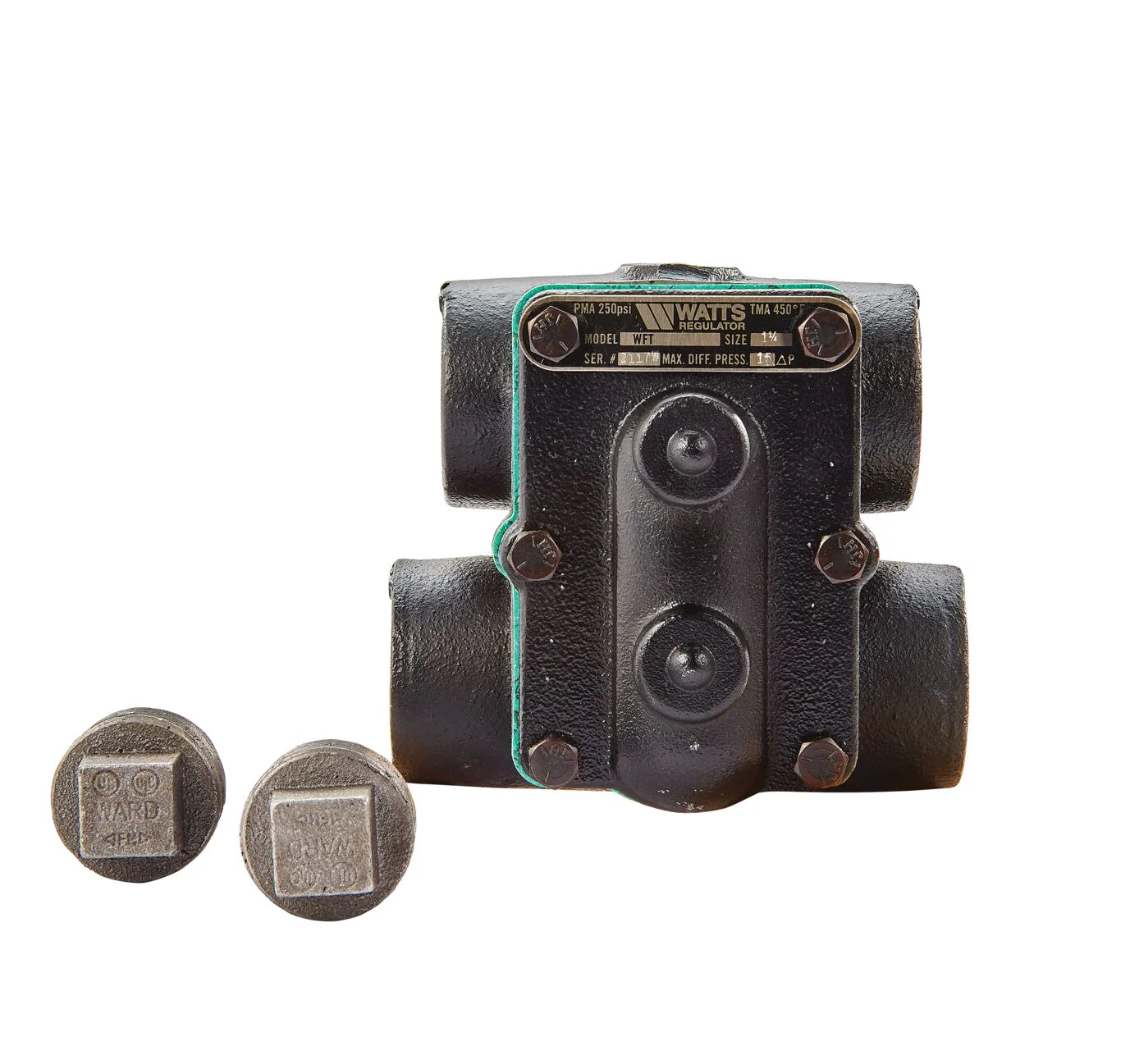

Watts WFT-15 1 - Part of the WFT Series

This float and thermostatic steam trap, 1 IN with .218 orifice, is used in steam main drips and process applications to provide continuous air venting and condensate removal. It features an iron body H-pattern design, stainless steel valve head, seat, float and thermostatic air vent. It is water hammer resistant and can be serviced without disturbing system piping and it is ideal for use in unit heaters, heat exchangers/reboilers, air heating coils, steam main drips, and process equipment. Operating pressure is 15 psi.

Features

• Universal 4-port design
• Balanced pressure thermostatic element
• Water hammer resistant
• Cast iron body and cover

Specifications
Air Venting	No Vent
Body Material	Cast Iron
Body Pattern	H-Pattern
Bottom Tapping	Yes
Bottom Tapping Size	1/2 IN
Brand	Watts
Buy American Act Compliant	NO
Contact Rating	Does Not Apply To Product
EAN	098268478495
Fastfill Feature	No
Fill Tapping Size	Does Not Apply To Product
Float Chamber Connection Size	Does Not Apply To Product
Flow Rate	Does Not Apply To Product
GDS Status	Registered
Hydronic Item Type	Steam Trap
Inlet Connection Size	1 IN
Inlet Connection Size-Metric	25 MM
Inlet Connection Type	Female Threaded
Inlet Thread Type	NPT
Lead Free	Not In Scope
Maximum Operating Temperature-Fahrenheit	353
Maximum Pressure-PSI	125
Maximum Steam Pressure-PSI	15
Maximum Temperature-Fahrenheit	250
Maximum Working Pressure-PSI	15
Outlet Connection Size	1 IN
Outlet Connection Type	Female Threaded
Outlet Thread Type	NPT
Part Number	0037105
Pipe Plug	No
Pressure Steam Discharge Capacity	Does Not Apply To Product
Purge And Drain Diameter	Does Not Apply To Product
Purge And Drain Outlet Size	Does Not Apply To Product
Series	WFT
Side Tapping	No
Side Tapping Size	Does Not Apply To Product
Strainer	No
Strainer Material	Does Not Apply To Product
Switch Type	Does Not Apply To Product
Temperature Adjustment Range	Does Not Apply To Product
Temperature Range	Does Not Apply To Product
Top 1 Tapping Size	Does Not Apply To Product
Top 2 Tapping Size	Does Not Apply To Product
Top Tapping	No
Vacuum Breaker	No
Venting Capacity	Does Not Apply To Product

• Specification Sheet - WFT

UPC - 098268478495
