Watts ST1250 1 1/2 - Part of the ST1250 Series

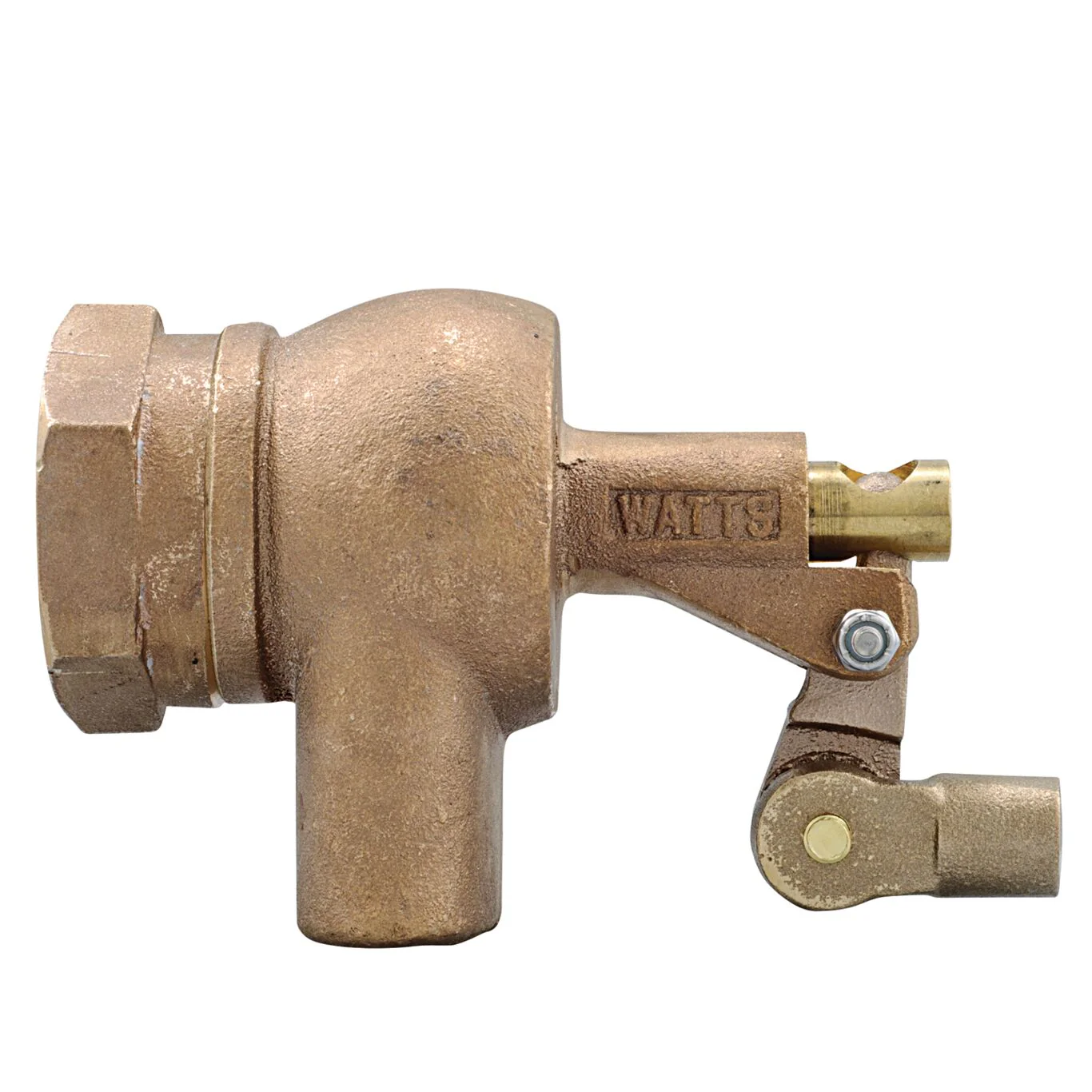

This standard duty mechanical float valve is used in commercial, industrial, and agricultural applications for controlling water flow. It has a bronze body construction with male NPT threaded end connections on 3/8 to 1 inch models and female NPT inlet-open outlet on 1 1/2 to 2 ich. models, cotter pin pivot arm assembly, replaceable seals, and replaceable plungers. It is ideal for use in air conditioning, refrigeration, and irrigation systems. The maximum pressure is 125 psi (8.7 bar).

Features

• Machined flange
• Bronze body
• Serrated arms
• Replaceable seals

Specifications
Body Material	Bronze
Brand	Watts
Buy American Act Compliant	NO
EAN	098268475142
Flow Specifications	64 GPM at 5 PSI to 233 GPM at 125 PSI
Inlet 1 Connection Size	1 1/2 IN
Inlet Pressure-PSI	55
Lead Free	Not In Scope
Maximum Pressure-PSI	125
Maximum Temperature-Fahrenheit	180
Outlet Connection Size	1 1/2 IN
Outlet Connection Type	Female Threaded
Outlet Thread Type	FPT
Part Number	0780283
Series	ST1250

UPC - 098268475142
