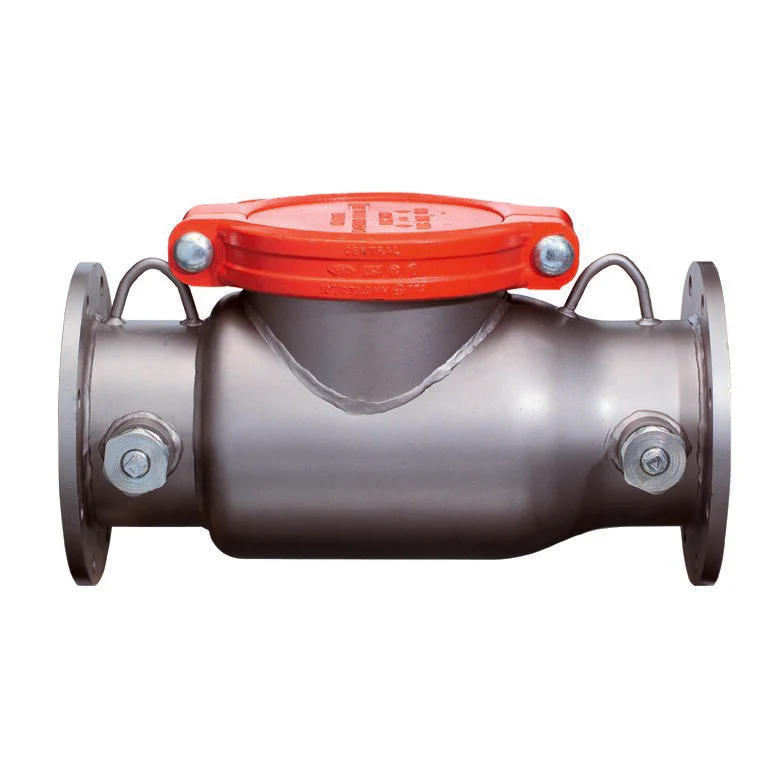

Watts SS07F 10 - Part of the SS07F Series

This 10 IN stainless steel, single detector check valve for fire sprinkler systems is used in fire protection applications to detect leakage or unauthorized use of water in fire sprinkler systems. It consists of a stainless steel body construction with flanged connection, and stainless steel linkage parts. It is lightweight, non-corrosive, and can be installed in a horizontal or vertical position. Maximum pressure is 175 psi (12.1 bar).

Features

• Stainless steel for corrosion resistance
• Flanged end connections
• Lightweight
• Horizontal or vertical installation

Specifications
Body Material	Stainless Steel
Body Pattern	Straight
Brand	Watts
Class Rating	125
EAN	098268920727
Inlet Connection Size	10 IN
Inlet Connection Size-Metric	250 MM
Inlet Connection Type	Flanged Joint
Inlet Thread Type	Does Not Apply To Product
Lead Free	NO
Maximum Operating Temperature-Celsius	43.00
Maximum Operating Temperature-Fahrenheit	110
Maximum Working Pressure-PSI	175
Minimum Temperature - Celsius	0.50
Minimum Temperature-Fahrenheit	33
Outlet Connection Size	10 IN
Outlet Connection Type	Flanged Joint
Outlet Thread Type	Does Not Apply To Product
Part Number	0065133
Series	SS07F

• Specification Sheet - SS07F

UPC - 098268920727
