Watts SS 2 TR 4X4 TXG - Part of the TR2 Series

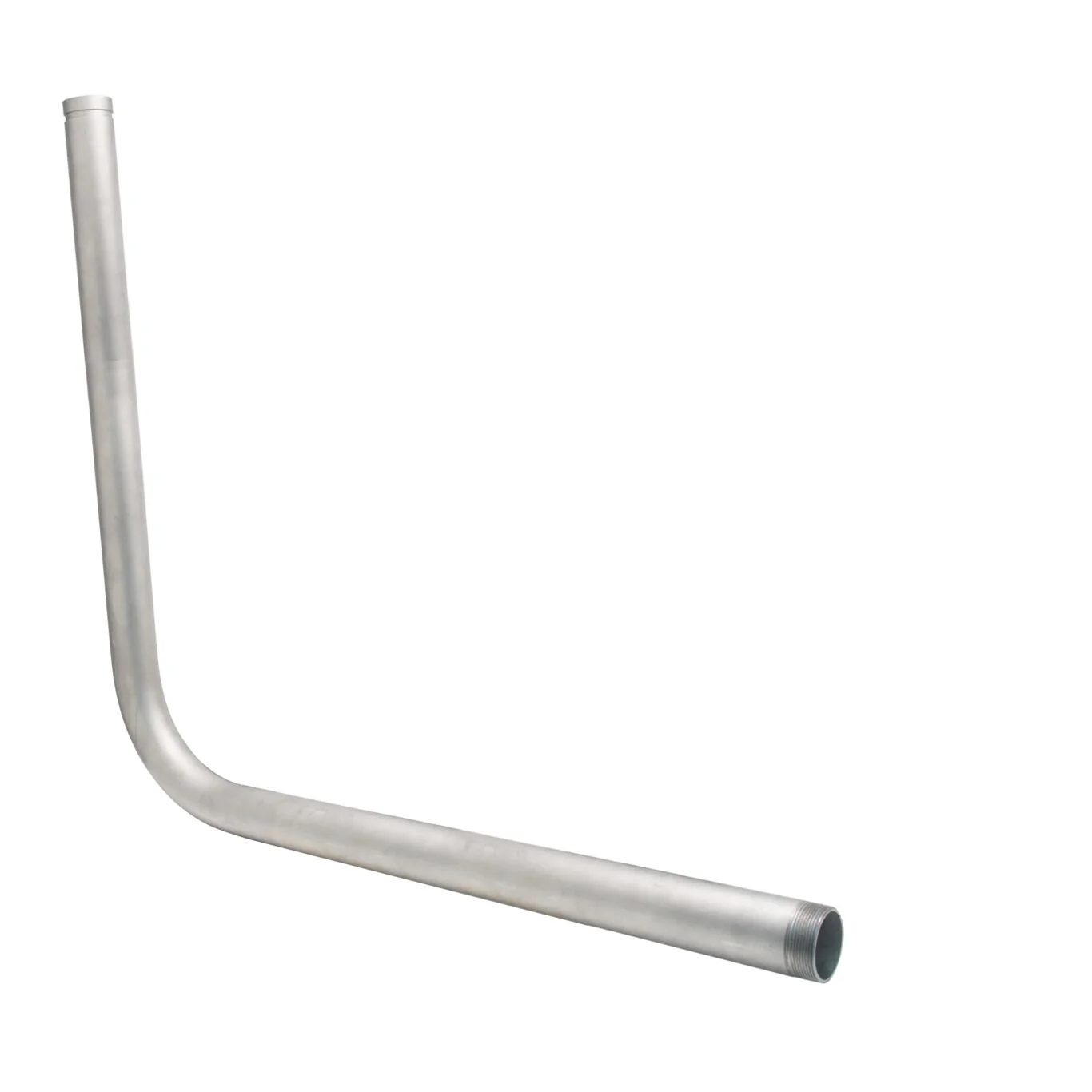

This 2 inch, 4 x 4 foot stainless steel transition riser is used to connect to the main building overhead fire system or potable water supply. The fitting passes under the foundation without joints and extends up through the floor. This unit is threaded at the inlet for easy connection to the underground supply and grooved on the building side for easy connection to either the overhead fire sprinkler system or potable water supply.

Features

• Stainless steel for corrosion resistance
• UL/ FM approved and NSF certified
• MNPT inlet x Grooved outlet
• 200 psi pressure rating

Specifications
Body Material	Stainless Steel
Brand	Watts
Buy American Act Compliant	NO
EAN	098268079173
Horizontal Leg Length	4 FT
Inlet Connection Size	2 3/8 IN
Inlet Connection Type	Male Threaded
Inlet Thread Type	NPT
Lead Free	YES
Maximum Working Pressure-PSI	200
Outlet Connection Size	2 3/8 IN
Outlet Connection Type	Grooved Joint
Outlet Thread Type	Does Not Apply To Product
Part Number	88006376
Series	TR2
Vertical Leg Length	4 FT

• Specification Sheet - Transition Riser TR2

UPC - 098268079173
