Watts SL100XL-Z5-150210 3/4 - Part of the SL100XL Series

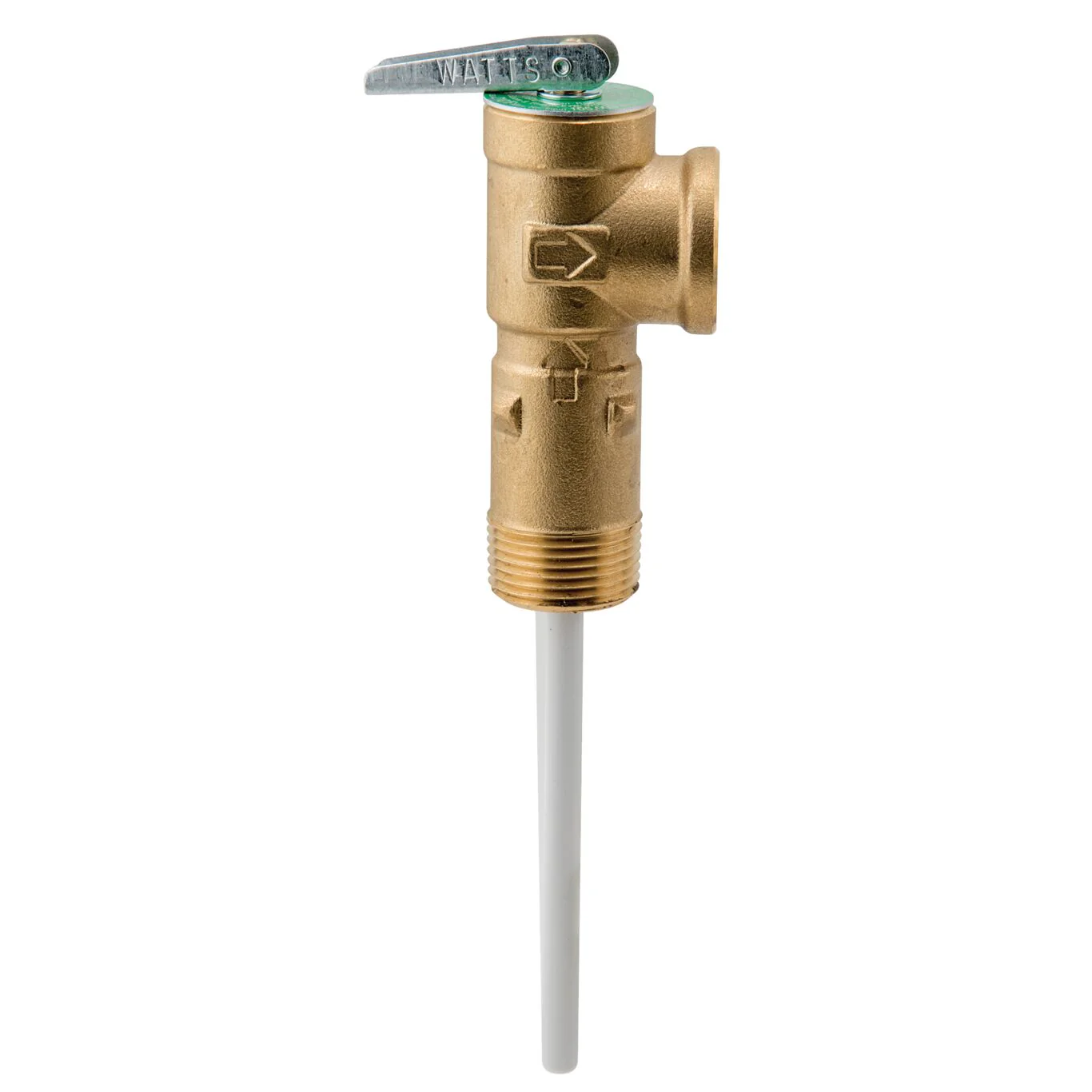

This 3/4 inch extended shank temperature and pressure relief valve is used in water heater and hot water storage tank applications to provide automatic temperature and pressure protection to hot water supply tanks and hot water heaters up to 105,000 BTU/hr. It features an extended shank for installation on water heaters with extra thick insulation as well as a bronze body with NPT male inlet and NPT female outlet connections, unique thermostat with special thermo-bonded coating, and a test lever. It is suitable for water heaters with up to 1 3/4 inches (45mm) of insulation. It is ASME rated and CSA listed. The temperature relief is 210 F (99 C), the pressure relief range is 75 to 150 psi (5.2 to 10.3 bar) and the standard pressure setting is 150 psi (10.55 bar).

Features

• Self closing safety valve for hot water heaters
• Unique thermostat with special thermo-bonded coating
• Bronze body construction
• Stainless steel spring

Specifications
Body Material	Bronze
Brand	Watts
EAN	098268739770
Inlet Connection Size	3/4 IN
Inlet Connection Type	Male Threaded
Inlet Thread Type	NPT
Lead Free	NO
Maximum Temperature-Fahrenheit	210
Maximum Working Pressure-PSI	150
Outlet Connection Size	3/4 IN
Outlet Connection Type	Female Threaded
Outlet Thread Type	NPT
Part Number	0066445
Pressure Range	75 to 150 PSI
Pressure Relief Setting-PSI	150
Protection Type	Temperature And Pressure
Series	SL100XL
Shank Length	1 1/4 IN
Temperature Relief-Fahrenheit	210
Thermostat Probe Length	3 1/2 IN
