Watts SFBV-1 3/4 - Part of the S-FBV-1 Series

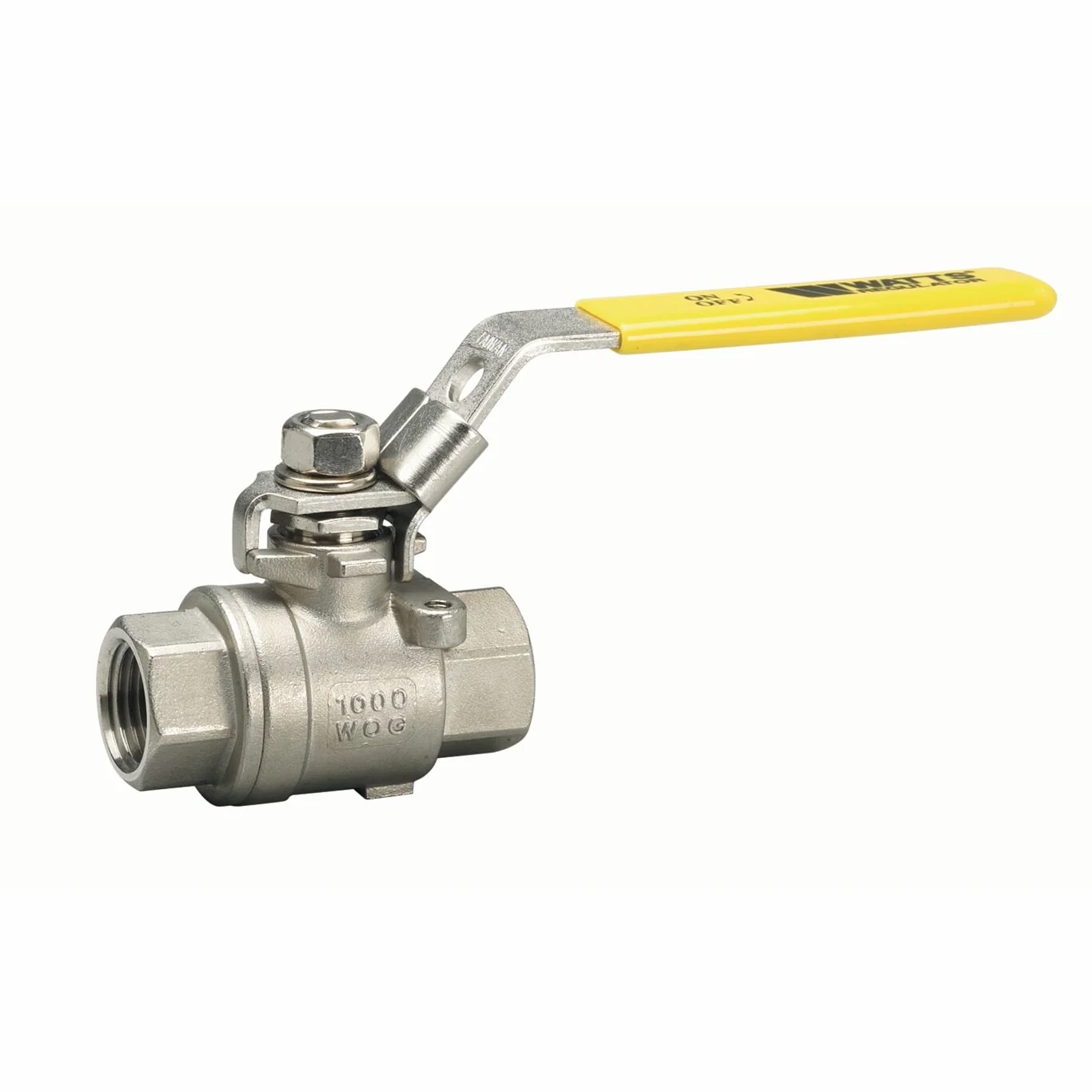

This 3/4 inch two-piece full port ball valve with female threaded end connections is used in commercial and industrial applications with high operating temperature and pressure limits. The valve features stainless steel body construction, adjustable packing gland, reinforced PTFE seats and seals, a bottom loaded blowout proof stem a vinyl insulator on a heavy duty 304 Latch-Lok stainless steel handle. The temperature range is 0 to 400 degrees F (-18 to 204 degrees C). The pressure rating is 1000 psi (68.9 bar) WOG non-shock and 125 psi (8.6 bar) WSP.

Features

• Two-piece stainless steel body construction
• Full port for minimal pressure drop
• Drilled and tapped mounting pads
• Vinyl insulated standard Latch-Lok handle to lock open or closed
• Reinforced PTFE seats and seals
• Adjustable packing gland
• Bottom loaded blowout proof stem
• Conforms to MSS-SP-110 and API-598

Specifications
Actuation	No
Assembled Dry	No
Balance Stop Plate	No
Ball Material	316 Stainless Steel
Body Finish	Stainless Steel
Body Material	Stainless Steel
Brand	Watts
Buy American Act Compliant	NO
Control Type	Lever Handle
CV Rating	37
EAN	098268386790
Electrical Rating	Does Not Apply To Product
Inlet Connection Size	3/4 IN
Inlet Connection Size-Metric	20 MM
Inlet Connection Type	Female Threaded
Inlet Thread Type	NPT
Lead Free	NO
Maximum Temperature-Fahrenheit	400
Minimum Temperature - Celsius	-18.00
Minimum Temperature-Fahrenheit	0
Operating Torque	65
Outlet Connection Size	3/4 IN
Outlet Connection Type	Female Threaded
Outlet Thread Type	FPT
Part Number	0548013
Port Type	Full
Seat Material	Reinforced PTFE
Series	S-FBV-1
Stem Packing Material	PTFE
Stem Shaft Material	Stainless Steel
Stem Type	Bottom Loaded Blowout Proof
Thrust Washer Material	PTFE
Valve Style	2-piece
WOG Rating	1000 PSI

• Specification Sheet - S-FBV-1

UPC - 098268386790
