Watts RL100XL-150210 3/4 - Part of the 100XL Series

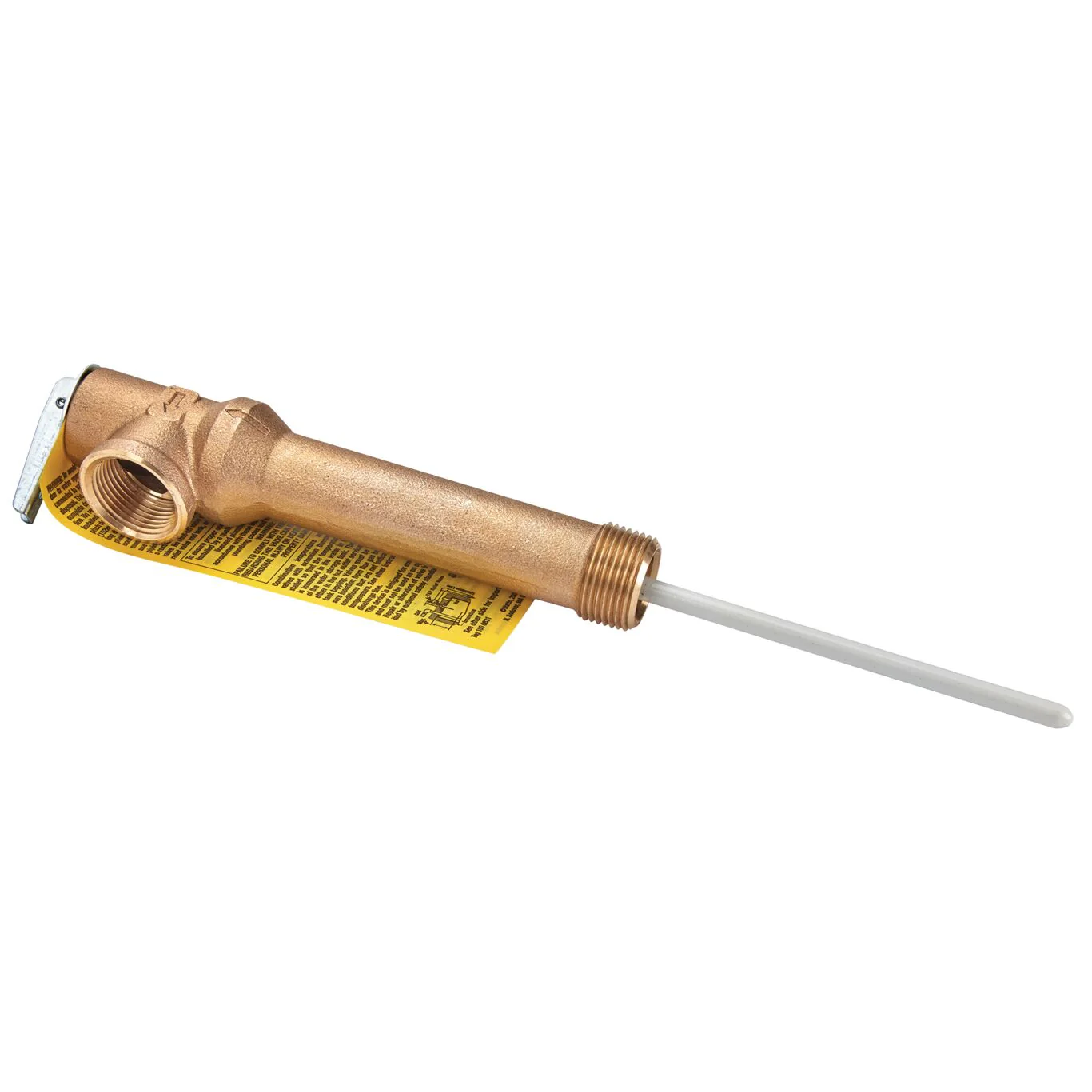

This 3/4 inch temperature and pressure relief valve is designed to provide automatic temperature and pressure protection to hot water supply tanks and hot water heaters up to 105,000 BTU per hour. It features a cast brass body with 4.75 inch long shank, NPT male inlet and 3/4 inch NPT female outlet connections, unique thermostat with special thermo-bonded coating, tamper resistant bonnet screws, automatic reseating feature, and test lever. The temperature relief is 210 degrees F (99 degrees C) and the pressure relief is set at 150 psi (10.3 bar).

Features

• Cast bronze body with 4.75 IN long shank
• 3/4 IN Male NPT inlet
• Pressure set at 150 psi (10.3 bar)
• ASME rated and CSA listed

Specifications
Body Material	Brass
Brand	Watts
EAN	098268006476
GPM-When Relieved	Does Not Apply To Product
Inlet Connection Size	3/4 IN
Inlet Connection Type	Male Threaded
Inlet Thread Type	NPT
Lead Free	NO
Maximum Temperature-Fahrenheit	210
Maximum Working Pressure-PSI	150
Outlet Connection Size	3/4 IN
Outlet Connection Type	Female Threaded
Outlet Thread Type	NPT
Part Number	0068729
Pressure Range	75 to 150 PSI
Pressure Relief Setting-PSI	150
Protection Type	Temperature And Pressure
Series	100XL
Shank Length	4.75 IN
Temperature Relief-Fahrenheit	210
Thermostat Material	Nylon Coated Copper
Thermostat Probe Length	4.46 IN

UPC - 098268006476
