Watts N240X9 125-210 1 - Part of the N240 Series

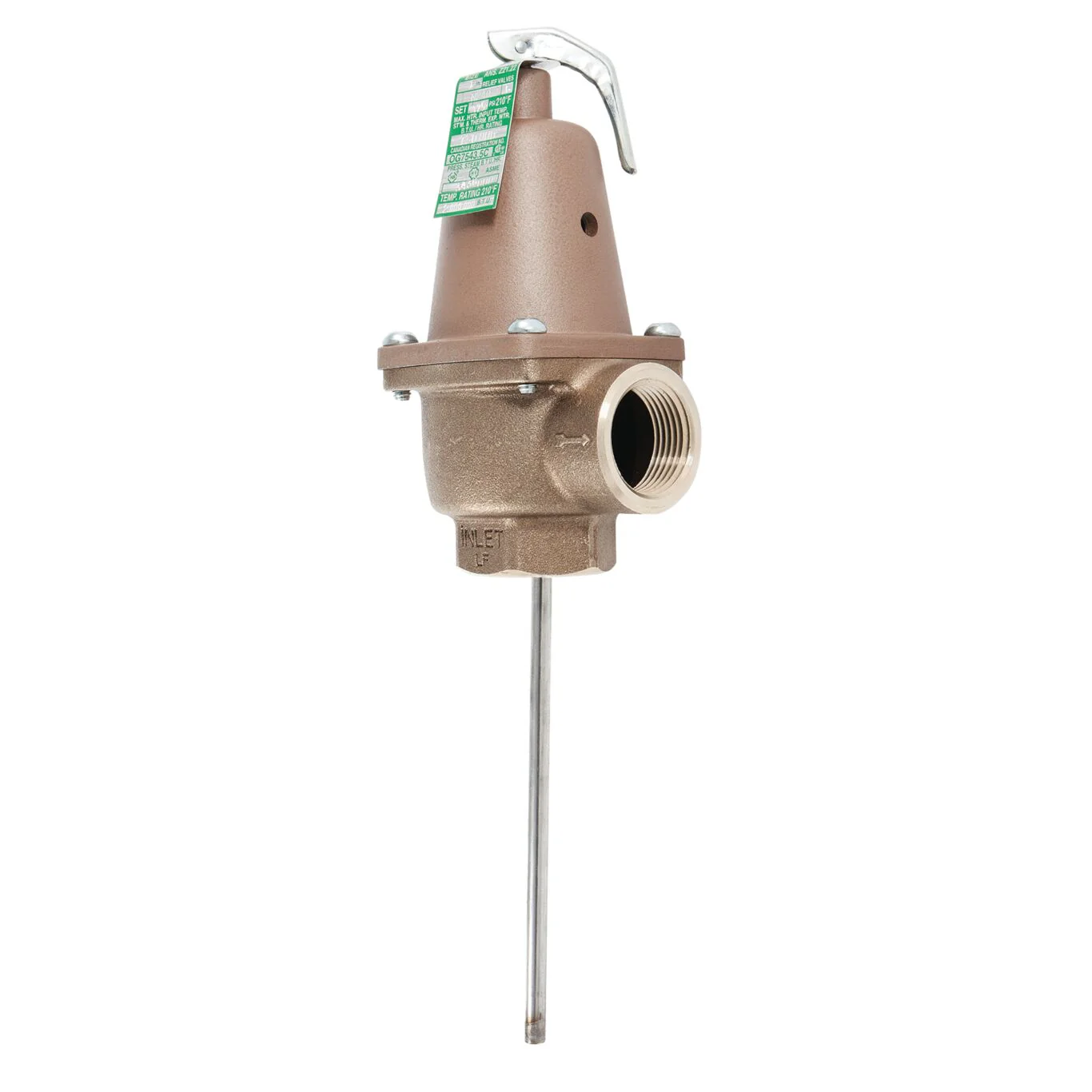

This 1 inch bronze automatic reseating temperature and pressure relief valve has a 9 inch thermostat and is installed directly in tank tapings. It is used in commercial applications to provide automatic temperature and pressure protection for hot water supply tanks and hot water heaters. This valve features a bronze body with NPT female inlet and NPT female outlet connections, thermo-bonded coated thermostat, tamper resistant bonnet screws, automatic reseating feature, and test lever. The temperature relief is 210 degrees and the pressure relief is 125 psi.

Features

• Stainless steel spring
• Tamper resistant bonnet screws
• 9 Inch thermostat length
• Non-mechanical seat to disc alignment

Specifications
Body Material	Bronze
Brand	Watts
Buy American Act Compliant	YES
EAN	098268016376
Inlet Connection Size	1 IN
Inlet Connection Type	Female Threaded
Inlet Thread Type	NPT
Lead Free	NO
Maximum Temperature-Fahrenheit	210
Outlet Connection Size	1 IN
Outlet Connection Type	Female Threaded
Outlet Thread Type	NPT
Part Number	0315160
Pressure Range	75 to 150 PSI
Pressure Relief Setting-PSI	125
Protection Type	Temperature And Pressure
Series	N240
Temperature Relief-Fahrenheit	210
Thermostat Material	Stainless Steel

• Specification Sheet - 40, 140, 240, 340
• Specification Sheet - 40, 140, 240, 340 (French)
• Specification Sheet - 40, 140, 240, 340 (Spanish)
• Specification Sheet - Flood Sensor for Relief Valve Discharge Line
• Specification Sheet - Flood Sensor for Relief Valve Discharge Line (French)
• Specification Sheet - Flood Sensor for Relief Valve Discharge Line (Spanish)
• Specification Sheet - Relief Valve Flood Sensor Retrofit Connection Kit
• Specification Sheet - Relief Valve Flood Sensor Retrofit Connection Kit (French)
• Specification Sheet - Relief Valve Flood Sensor Retrofit Connection Kit (Spanish)

UPC - 098268016376
