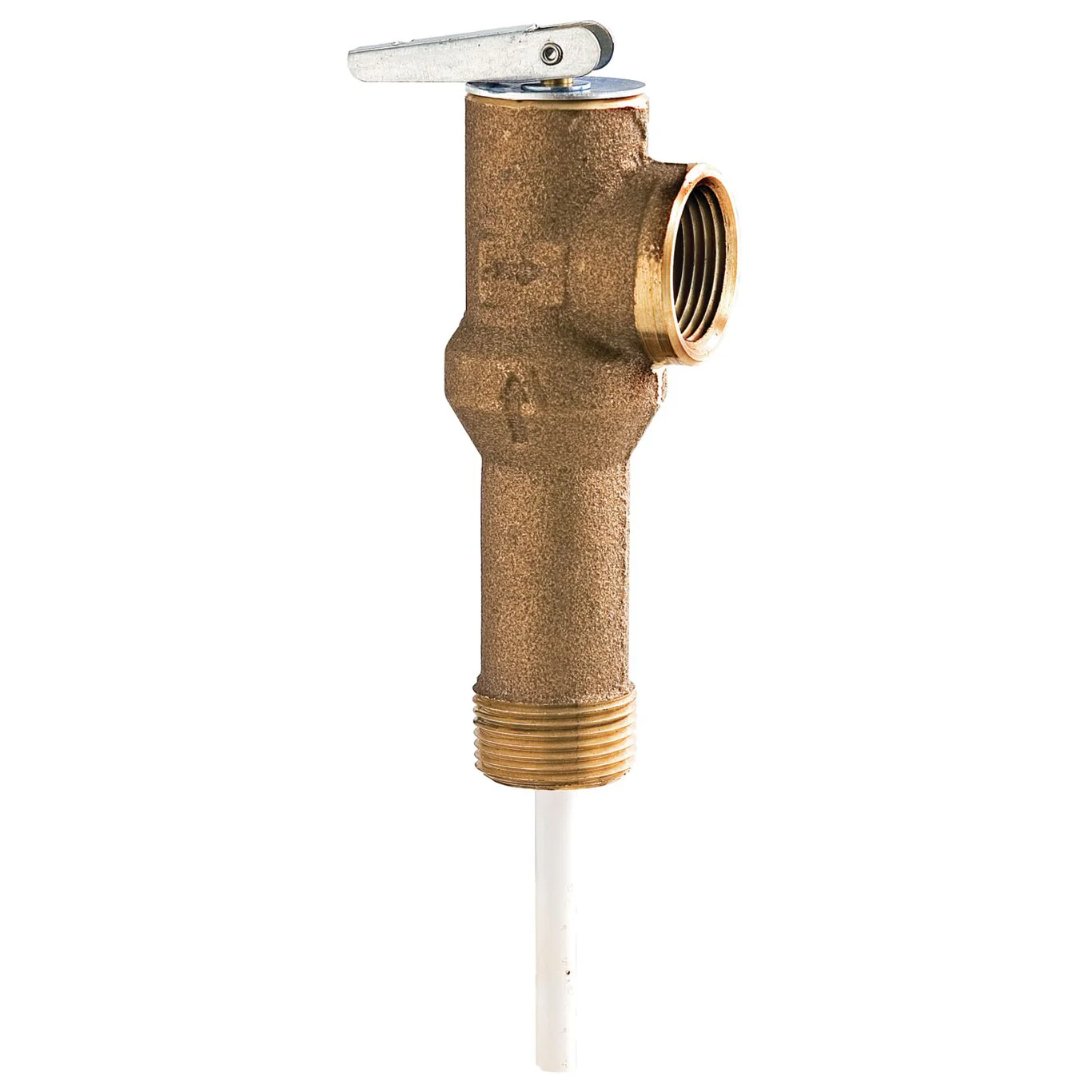

Watts LL100XLM7-2.5 3/4 - Part of the 100XL Series
This 3/4 inch extra extended shank temperature and pressure relief valve is used in water heater and hot water storage tank applications to provide automatic temperature and pressure protection to hot water supply tanks and hot water heaters up to 105,000 BTU/hr. It features an extended shank for installation on water heaters with extra thick insulation as well as a brass body with NPT male inlet and NPT female outlet connections, unique thermostat with special thermo-bonded coating, and a test lever. It is suitable for water heaters with up to 2 1/2 inches (63.5 mm) of insulation. It is ASME rated and CSA listed. The temperature relief is 210 F (99 C), the pressure relief range is 75 to 150 psi (5.2 to 10.3 bars) and the standard pressure setting is 150 psi (10.55 bar).
Features- Self closing safety valve for hot water heaters
- Unique thermostat with special thermo-bonded coating
- Brass body construction
- Temperature relief is 210 degree F (99 degree C)
- Pressure relief range is 75 to 150 psi
- ASME rated, CSA Listed
- Extended inlet shank; suitable for water heaters with up to 2 1/2 inch insulation
- Used to provide automatic temperature and pressure protection to hot water supply tanks and hot water heaters up to 105,000 BTU/hr
- ANSI Z21.22 certified
| Specifications | |
|---|---|
| Body Material | Brass |
| Brand | Watts |
| Buy American Act Compliant | YES |
| EAN | 098268214666 |
| GPM-When Relieved | Does Not Apply To Product |
| Inlet Connection Size | 3/4 IN |
| Inlet Connection Type | Male Threaded |
| Inlet Thread Type | NPT |
| Lead Free | NO |
| Maximum Temperature-Fahrenheit | 210 |
| Maximum Working Pressure-PSI | 112 |
| Outlet Connection Size | 3/4 IN |
| Outlet Connection Type | Female Threaded |
| Outlet Thread Type | NPT |
| Part Number | 0066132 |
| Pressure Range | Does Not Apply to Product |
| Pressure Relief Setting-PSI | 150 |
| Protection Type | Temperature And Pressure |
| Series | 100XL |
| Shank Length | 2 IN |
| Temperature Relief-Fahrenheit | 210 |
| Thermostat Material | Nylon |
| Thermostat Probe Length | 2 1/2 IN |
- Specification Sheet - SL100XL, L100XL, LL100XL, LLL100XL
