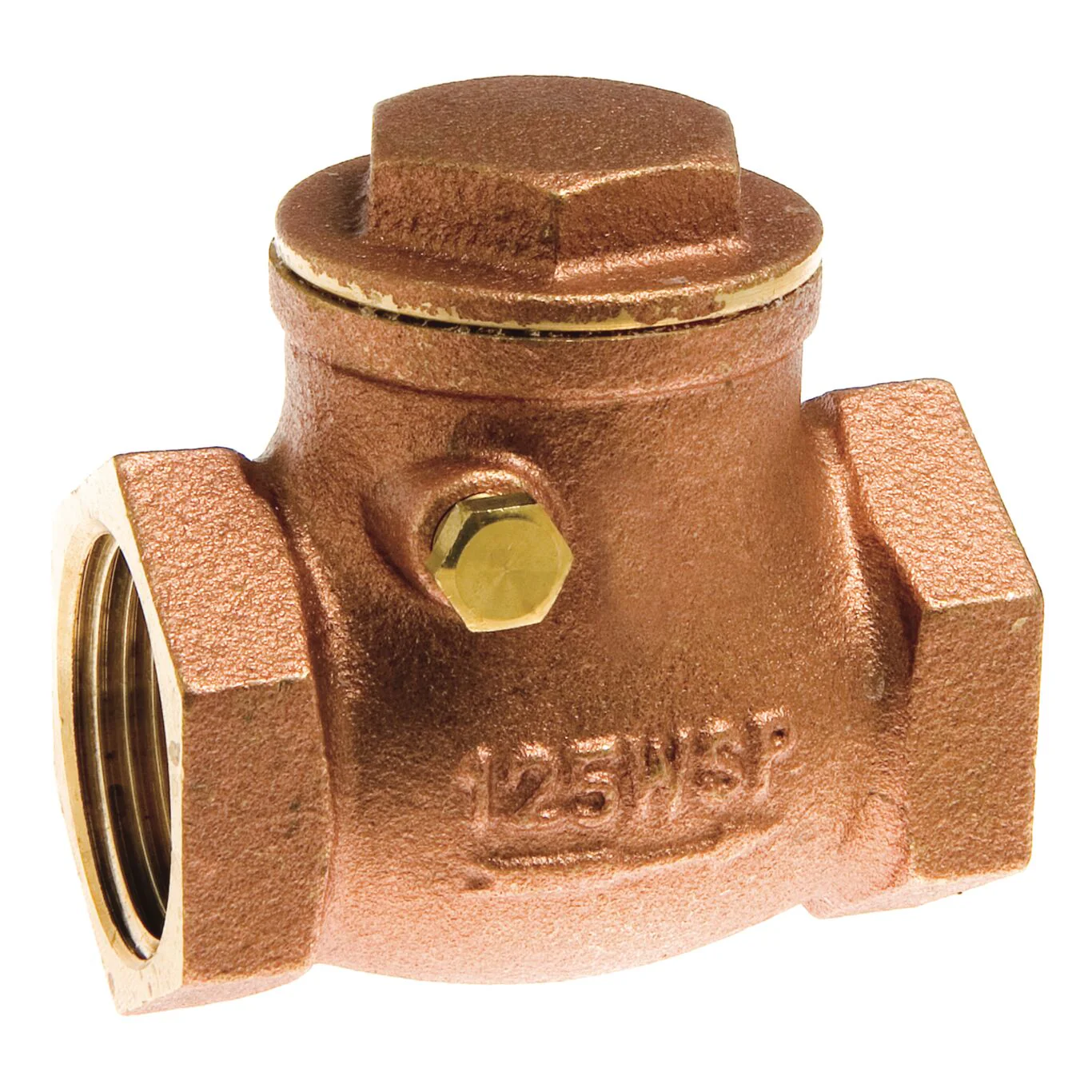

Watts LFWCV 1 - Part of the LFWCV Series

This 1 inch lead free swing check valve is used to prevent reverse flow in water and steam applications. It features a lead free brass body with NPT threaded end connections, lead free brass bonnet, PTFE gasket, lead free brass pin, screw and seat. This valve has metal-to-metal seating and provides low pressure drop and automatic closure when fluid flow is stopped. The working set pressure rating is 125 psi (8.6 bar) and maximum pressure is 200 psi (13.8 bar) WOG non-shock.

Features

• Lead free body construction
• Metal to metal seal
• NPT threaded end connections
• Maximum pressure is 200 psi

Specifications
Body Material	Lead Free Brass
Body Pattern	Tee
Brand	Watts
Buy American Act Compliant	NO
Class Rating	Does Not Apply To Product
Disc Material	Lead Free Brass
Disc Type	Swing
EAN	098268697070
Inlet Connection Size	1 IN
Inlet Connection Size-Metric	25 MM
Inlet Connection Type	Female Threaded
Inlet Thread Type	FPT
Lead Free	YES
Maximum Working Pressure-PSI	200
Outlet Connection Size	1 IN
Outlet Connection Type	Female Threaded
Outlet Thread Type	FPT
Part Number	0123496
Series	LFWCV
WOG Rating	200 PSI

• Specification Sheet - LFWCV

UPC - 098268697070
