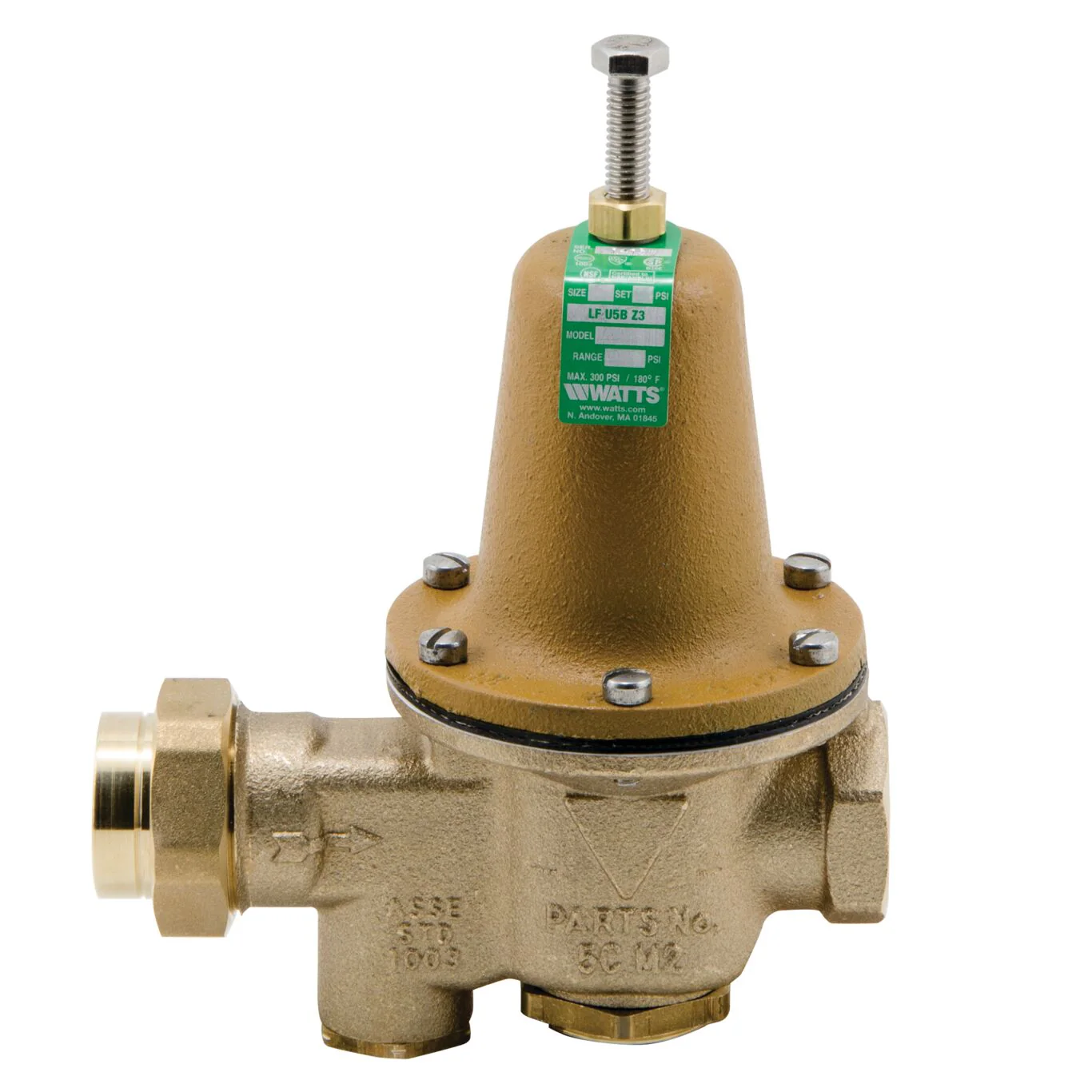

Watts LFU5B-G-HP-Z3 1 1/4 - Part of the LFU5B-Z3 Series

This 1 1/4 inch lead free high performance water pressure reducing valve is equipped for high pressure ranges with gauge tapping. It is designed to reduce incoming water pressure to protect plumbing systems and reduce water consumption for commercial, industrial and residential applications. The easy maintenance assembly consists of a replaceable seat module and a bypass feature to control thermal expansion pressure. The temperature range is 33 to 160 degrees F (0.5 to 71 degrees C). The high pressure range is 75-100 psi (518 to 690 kPa) with the standard setting at 90 psi (621 kPa).

Features

• Sealed spring cage with stainless steel cage screws
• Integral stainless steel strainer removable for cleaning
• Bypass feature controls thermal expansion pressure
• High temperature resistant reinforced diaphragm for hot water

Specifications
Adjustable Reduced Pressure Range	25 to 75
Adjustable Reduced Pressure Range-BAR	1.8 to 5.2
Body Material	Brass
Brand	Watts
Buy American Act Compliant	YES
Corrosion Resistant Coating	No
Disc Material	Reinforced EPDM
EAN	098268328547
Gauge Option	Gauge Tapping
High Pressure Reduced Pressure Range	75 to 100 PSI
High Pressure Reduced Pressure Setting	75 PSI
Inlet Connection Size	1 1/4 IN
Inlet Connection Type	Union Joint
Inlet Thread Type	NPT
Lead Free	YES
Maximum Operating Temperature-Fahrenheit	160
Maximum Working Pressure-BAR	20.70
Maximum Working Pressure-PSI	300
Minimum Temperature - Celsius	0.50
Minimum Temperature-Fahrenheit	33
Outlet Connection Size	1 1/4 IN
Outlet Connection Type	Female Threaded
Outlet Thread Type	NPT
Part Number	0009185
Series	LFU5B-Z3
Standard Reduced Pressure Setting-BAR	3.40
Standard Reduced Pressure Setting-PSI	50
Strainer	Yes
Strainer Material	Stainless Steel
Thermal Expansion Bypass	Yes
Valve Style	Standard

• Specification Sheet - LFU5B-Z3

UPC - 098268328547
