Watts LFTP300T 1/2 - Part of the LFTP300 Series

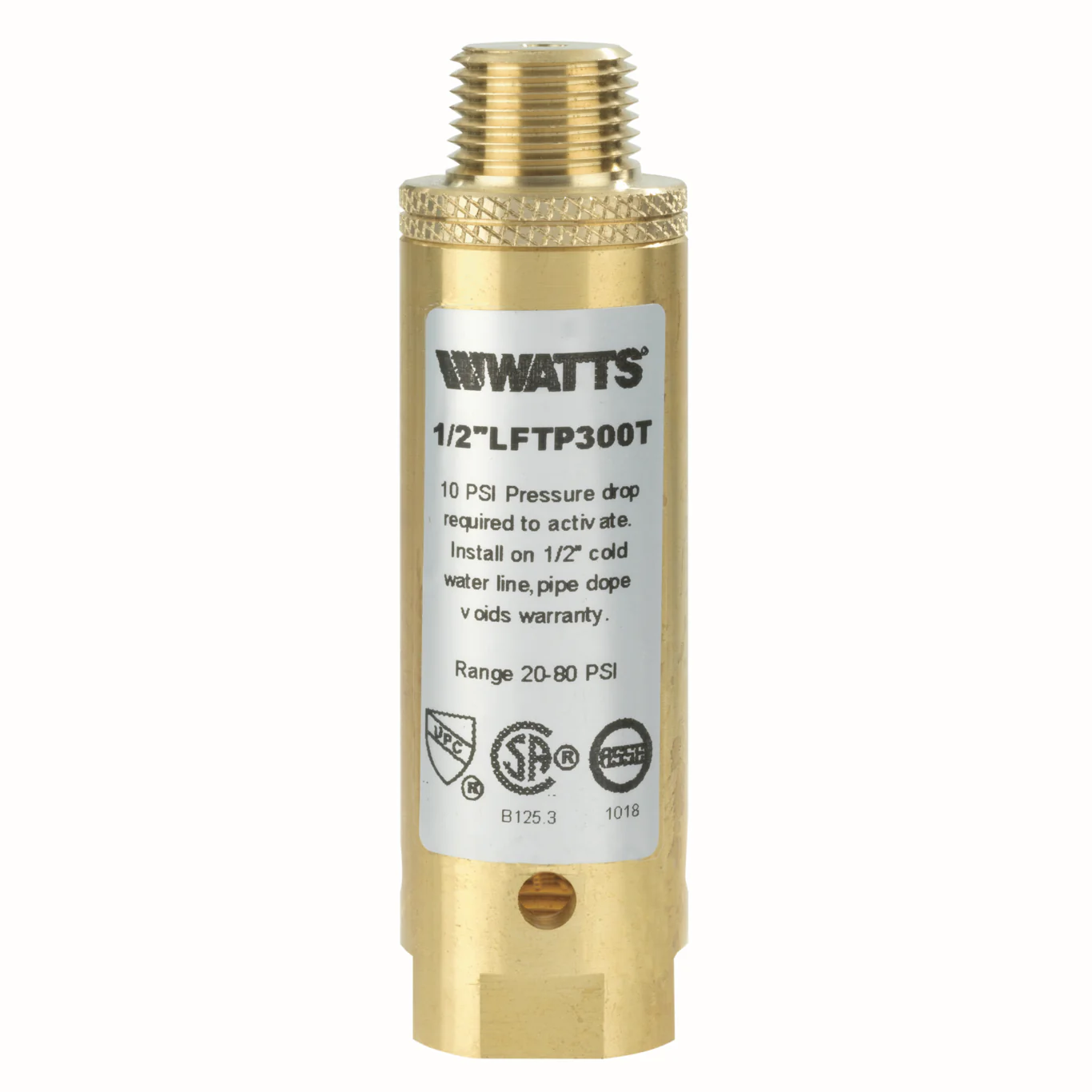

This 1/2 inch trap primer is installed in plumbing systems to prevent floor drain traps from losing their water seal by evaporation. It operates by sensing the pressure drop in the supply line from downstream fixtures or appliances. This trap primer features a lead free brass body with EDPM seals, built-in air gap, and 1/2 inch male NPT inlet by 1/2 inch female NPT outlet. The minimum supply pressure must exceed 25 psi (172 kPa) and the maximum supply pressure is 125 psi (8.6 bar).

Features

• Lead free brass construction
• Built-in air gap
• Prevents backflow of sewer gas into building
• Tested and approved with ASSE standard 1018 and listed by IAPMO

Specifications
Body Material	Brass
Brand	Watts
Buy American Act Compliant	NO
EAN	098268580433
Inlet Connection Size	1/2 IN
Inlet Connection Type	Male Threaded
Lead Free	YES
Maximum Water Pressure-PSI	125
Outlet Connection Size	1/2 IN
Outlet Connection Type	Female Threaded
Part Number	0121238
Series	LFTP300

• Specification Sheet - LFTP300

UPC - 098268580433
