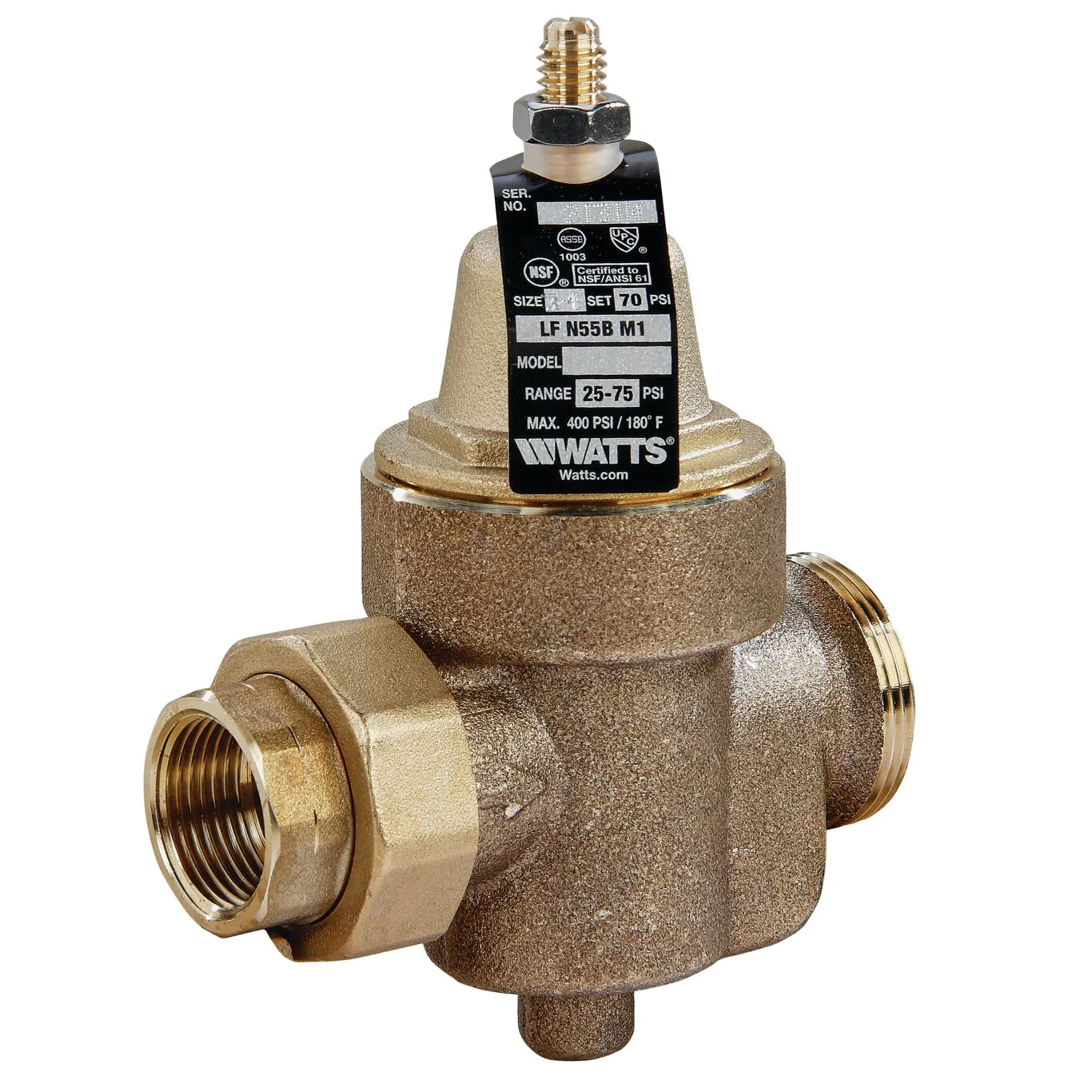

Watts LFN55BM1-U-070 1 - Part of the LFN55B-M1 Series

This 1 inch water pressure reducing valve is used in commercial and residential applications to reduce incoming water pressure for protection of plumbing system components and to reduce water consumption. It consists of a lead free brass body construction, female NPT union inlet by female NPT outlet connection, integral stainless steel strainer, thermoplastic seat, brass sealed spring cage for accessible outdoor waterworks or pit installations, and a thermal expansion bypass. The temperature range is 33 to 180 degrees F (0.5 to 82 degrees C). Suitable for up to 400 psi (27.6 bar), the pressure range can be adjusted from 25 to 75 psi (172 to 517 kPa). Factory set at 70 psi (345 kPa).

Features

• Sealed spring cage for accessible outdoor or waterworks pit installations
• Integral stainless steel strainer removable for cleaning
• Engineered copper-silicon body material
• Thermoplastic seat and bronze cage

Specifications
Adjustable Reduced Pressure Range	25 to 75
Adjustable Reduced Pressure Range-BAR	1.7 to 5.2
Body Material	Lead Free Copper Silicon Alloy
Brand	Watts
Buy American Act Compliant	YES
Corrosion Resistant Coating	No
Disc Material	Elastomer
EAN	098268092707
Gauge Option	No Gauge
Inlet Connection Size	1 IN
Inlet Connection Type	Union Joint
Inlet Thread Type	NPT
Lead Free	YES
Maximum Operating Temperature-Fahrenheit	180
Maximum Working Pressure-BAR	27.60
Maximum Working Pressure-PSI	400
Minimum Temperature - Celsius	0.50
Minimum Temperature-Fahrenheit	33
Outlet Connection Size	1 IN
Outlet Connection Type	Female Threaded
Outlet Thread Type	FPT
Part Number	0009763
Series	LFN55B-M1
Standard Reduced Pressure Setting-BAR	3.40
Standard Reduced Pressure Setting-PSI	50
Strainer	Yes
Strainer Material	Stainless Steel
Thermal Expansion Bypass	Yes
Trim Material	Bronze
Type	Kit
Valve Style	Standard

• Specification Sheet - LFN55B-M1
• Specification Sheet - LFN55B-M1 (Spanish)

UPC - 098268092707
