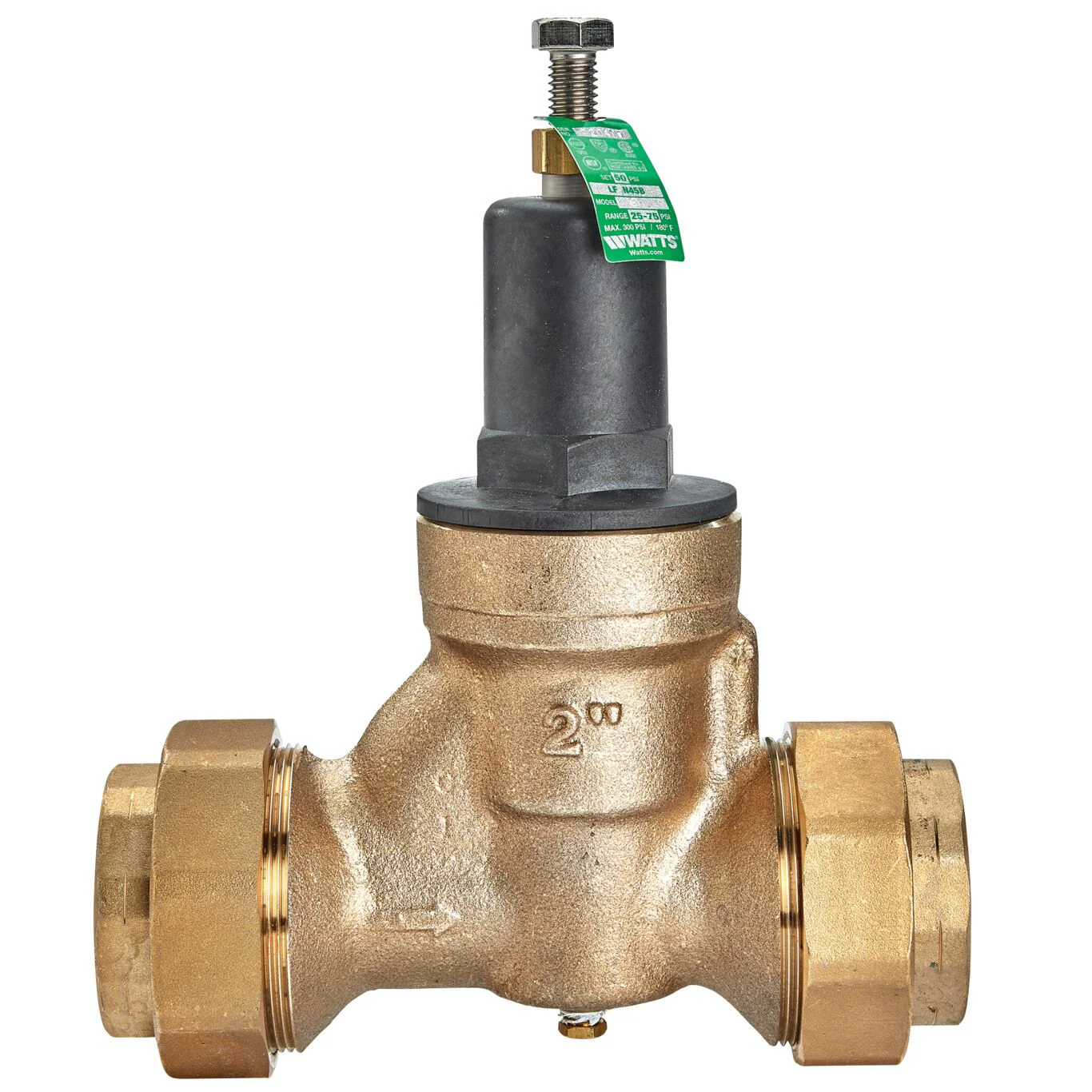

Watts LFN45B-DU-G - Part of the LFN45B-L Series

This 2 inch water pressure reducing valve with gauge tapping is used in commercial and residential applications to reduce incoming water pressure for protection of plumbing system components and to reduce water consumption. It consists of a lead free brass body construction, integral stainless steel strainer and thermal expansion bypass, double union threaded end connections. The maximum working pressure is 300 psi (21 bar), The adjustable reduced pressure range is 25 to 75 psi (172 to 517 kPa) and the standard pressure setting is 50 psi (345 kPa).

Features

• Thermoplastic seat and cage
• Integral stainless steel strainer removable for cleaning
• Gauge tapping
• Bypass feature controls thermal expansion pressure

Specifications
Adjustable Reduced Pressure Range	25 to 75
Adjustable Reduced Pressure Range-BAR	1.7 to 5.2
Body Material	Lead Free Copper Silicon Alloy
Brand	Watts
Corrosion Resistant Coating	No
Disc Material	EPDM
EAN	098268413045
Gauge Option	Gauge Tapping
High Pressure Reduced Pressure Range	Does Not Apply To Product
High Pressure Reduced Pressure Setting	Does Not Apply To Product
Inlet Connection Size	2 IN
Inlet Connection Type	Union Female Threaded
Inlet Thread Type	NPT
Lead Free	YES
Maximum Operating Temperature-Fahrenheit	180
Maximum Working Pressure-BAR	20.70
Maximum Working Pressure-PSI	300
Minimum Temperature - Celsius	0.50
Minimum Temperature-Fahrenheit	33
Outlet Connection Size	2 IN
Outlet Connection Type	Union Female Threaded
Outlet Thread Type	NPT
Part Number	0009521
Series	LFN45B-L
Standard Reduced Pressure Setting-BAR	3.40
Standard Reduced Pressure Setting-PSI	50
Strainer	Yes
Strainer Material	Stainless Steel
Thermal Expansion Bypass	Yes
Trim Material	Does Not Apply To Product
Valve Style	Standard

• Specification Sheet - LFN45B-L for 1-1/4 to 2 IN Sizes
• Specification Sheet - LFN45B-L for 1-1/4 to 2 IN Sizes (Spanish)

UPC - 098268413045
