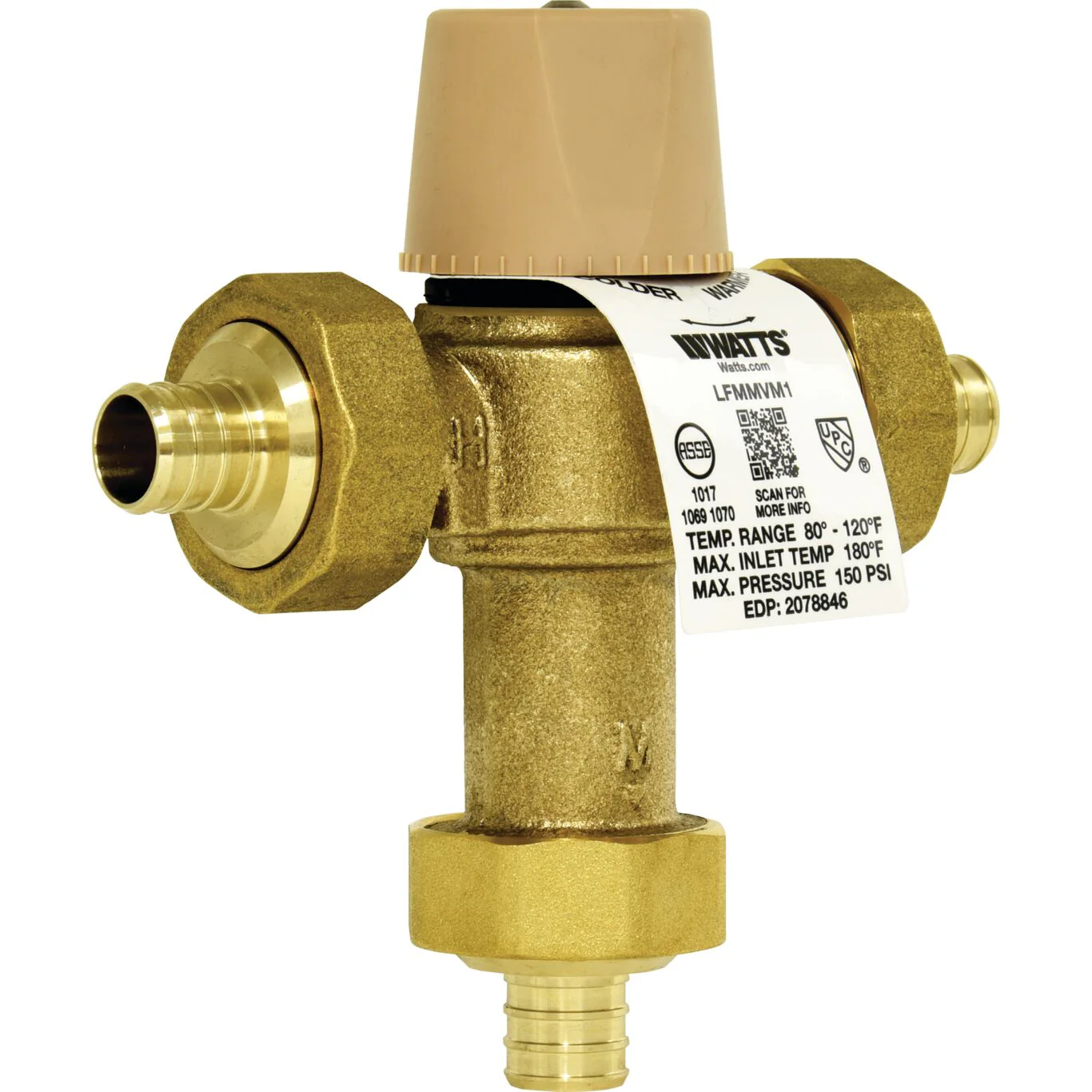

Watts LFMMVM1-PEX 1/2 - Part of the LFMMV Series

This 1/2 inch lead free thermostatic mixing valve is designed for residential, commercial or institutional environments for supplying baths or lavatories with tempered water. The double throttling design controls both hot and cold water supply to the mixed outlet. It consists of a lead free brass body, crimp end connections for PEX tubing, solid wax hydraulic principle thermostat, integral filter washers and check valves with a locking mechanism for the temperature setting. The adjustable field range temperature at mixed outlet is 80 to 120 degrees F (27 to 49 degrees C). The maximum pressure rating is 150 psi (10.3 bar).

Features

• Lead free brass construction
• Thermal actuation technology for precise temperature control
• Locking mechanism secures temperature setting
• ASSE 1070, ASSE 1069, ASSE 1017 and UPC listed

Specifications
Body Finish	Rough Bronze
Body Material	Lead Free Copper Silicon Alloy
Brand	Watts
Buy American Act Compliant	YES
Capacity	20 GPM at 125 PSI
Cold Inlet Temperature Range	39 to 85 degree F
Cold Water Bypass	No
Cold Water Inlet Connection Size	1/2 IN
Cold Water Inlet Connection Type	Crimped
Cold Water Inlet Thread Type	Does Not Apply To Product
EAN	098268451771
Factory Set Temperature-Fahrenheit	105
Flow Rate	0.5 to 20 GPM
Hot Inlet Temperature Range	120 to 180 degree F
Hot Water Inlet Connection Size	1/2 IN
Hot Water Inlet Connection Type	Crimped
Hot Water Inlet Thread Type	Does Not Apply To Product
Lead Free	YES
Maximum Pressure Differential	25 Percent
Maximum Working Pressure-PSI	150
Minimum Differential Temperature-Fahrenheit	5
Minimum Static Pressure-PSI	30
Outlet Connection Size	1/2 IN
Outlet Connection Size-Metric	15 MM
Outlet Connection Type	Crimped
Outlet Temperature Accuracy	+/- 7 degree F
Outlet Thread Type	Does Not Apply To Product
Part Number	0559114
Series	LFMMV
Temperature Adjustment Range	80 to 120 degree F
Wi-Fi Enabled	No
