Watts LFMMV-HTK 3/4 - Part of the LFMMV Series

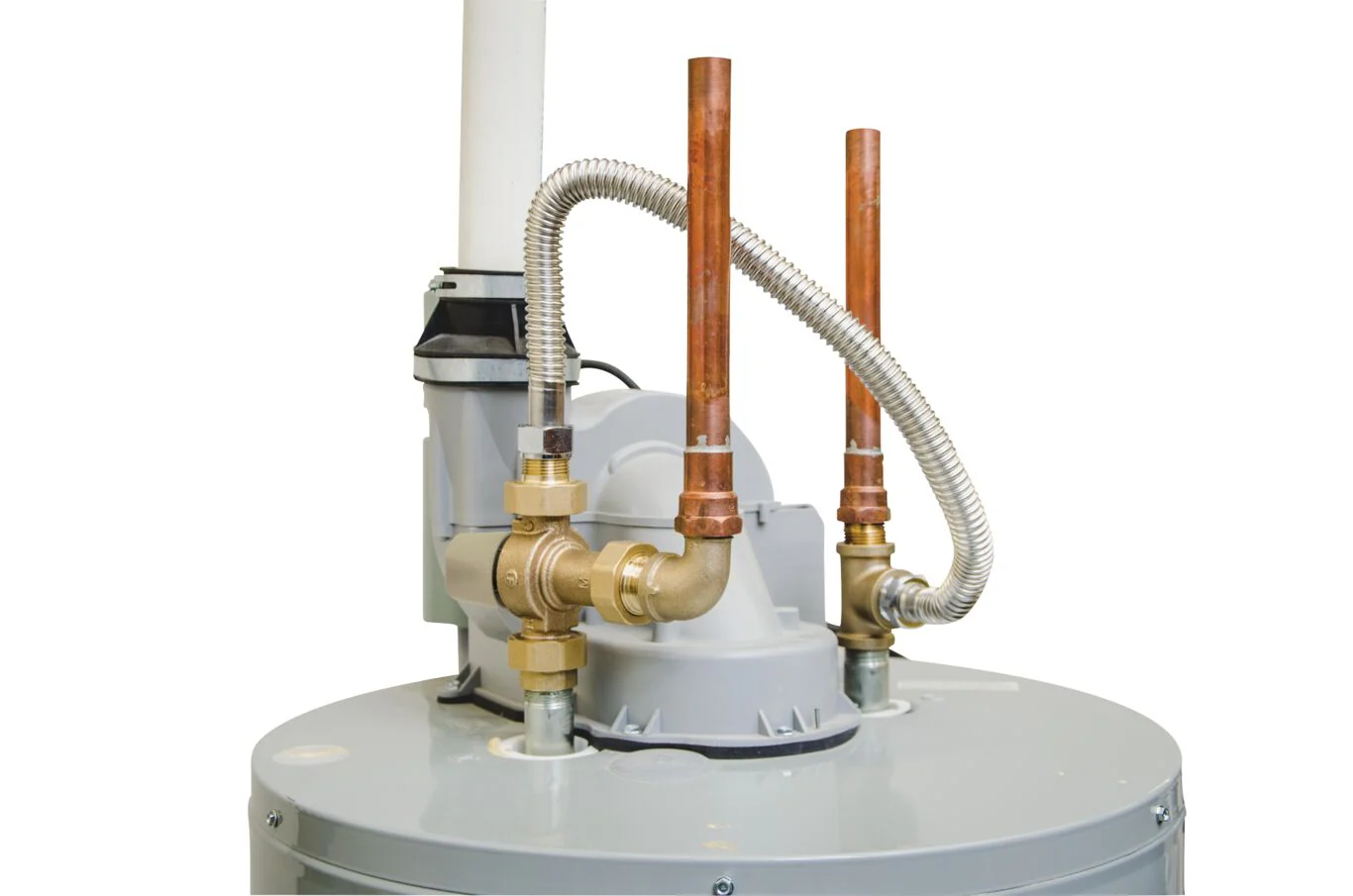

This 3/4 inch lead free thermostatic hot water mixing valve kit is designed for residential, commercial or institutional environments for supplying tempered water. This kit contains a 3/4 inch mixing valve, Model LLMMV, stainless steel hose, a tee and an elbow. The thermostatic mixing valve consists of a lead free brass body, threaded union end connections, solid wax hydraulic principle thermostat, integral filter washers and check valves with a locking mechanism for the temperature setting. The double throttling design controls both hot and cold water supply to the mixed outlet. The adjustable field range temperature at mixed outlet is 80 to 120 degrees F (27 to 49 degrees C). The maximum pressure rating is 150 psi (10.3 bar) and maximum temperature rating is 200 degrees F (93 degrees C).

Features

• Lead free brass construction
• Thermal actuation technology for precise temperature control
• Includes a stainless steel hose, tee and elbow
• ASSE 1070, ASSE 1017 and UPC listed

Specifications
Body Finish	Rough Bronze
Body Material	Lead Free Copper Silicon Alloy
Brand	Watts
Buy American Act Compliant	YES
Capacity	20 GPM at 125 PSI
Cold Inlet Temperature Range	39 to 80 degree F
Cold Water Bypass	No
Cold Water Inlet Connection Size	3/4 IN
EAN	098268086263
Factory Set Temperature-Fahrenheit	105
Flow Rate	0.5 to 13 GPM
Hot Inlet Temperature Range	120 to 180 degree F
Hot Water Inlet Connection Size	3/4 IN
Lead Free	YES
Maximum Pressure Differential	25 percent
Maximum Working Pressure-PSI	125
Minimum Differential Temperature-Fahrenheit	5
Minimum Static Pressure-PSI	30
Outlet Connection Size	3/4 IN
Outlet Connection Size-Metric	19 MM
Part Number	0559178
Series	LFMMV
Temperature Adjustment Range	80 to 120 degree F
Wi-Fi Enabled	No

• Specification Sheet - LFMMV
• Specification Sheet - LFMMV (Spanish)
• Specification Sheet - LFMMV-HTK

UPC - 098268086263
