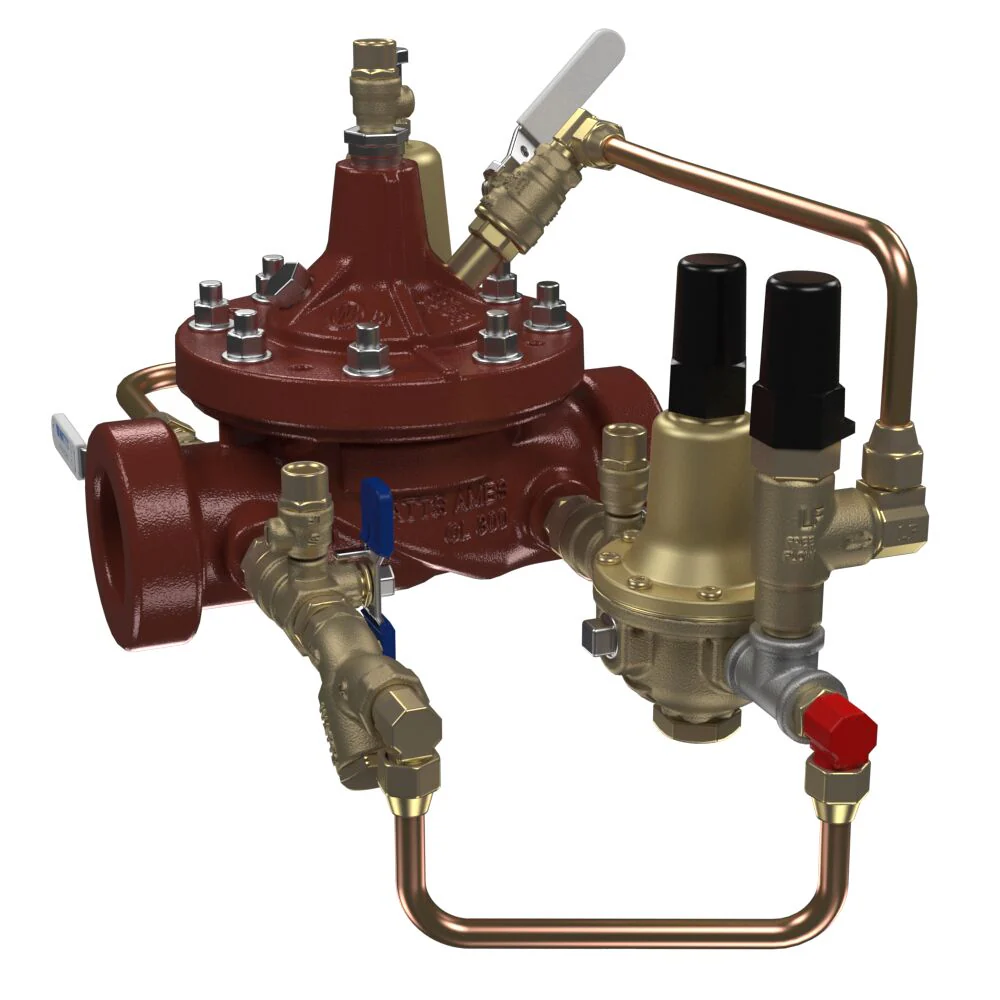

Watts LFM115-74 THD 25-75 P/G P/G 2 - Part of the LFM115-74 Series

This Watts 2 inch, globe, Threaded, ArmorTek epoxy coated Pressure Reducing Valve is designed to automatically reduce a fluctuating higher inlet pressure to a constant lower downstream pressure regardless of varying flow rates. The quick closing action of the valve limits possible damaging high inlet pressure from passing through the valve to downstream piping. Flow requirements below the normal range of the main line valve are handled by a separate, low flow by-pass valve. 25-75PSI adjustment range, with Position Indicator.

Features

• Pressure Reducing Valve (30-300psi)
• 25 - 75psi Low Flow By-Pass Range
• I/O Gauges & Position Indicator
• ArmorTek Coating

Specifications
Adjustable Reduced Pressure Range	30-300 psi
Adjustable Reduced Pressure Range-BAR	2.1-20.7 bar
ArmorTek Technology	Yes
Body Material	Ductile Iron
Brand	Watts
Coating	Bonded Epoxy
EAN	098268634891
Inlet Connection Size	2 IN
Inlet Connection Type	Female Threaded
Lead Free	Yes
Maximum Operating Temperature-Fahrenheit	225
Maximum Working Pressure-PSI	400
Outlet Connection Size	2 IN
Outlet Connection Type	Female Threaded
Part Number	1GE00128
Pilot Control System Fitting Material	Brass
Pilot Control System Tubing Material	Copper
Series	LFM115-74
Trim Material	316 Stainless Steel
Valve Style	Mustang
Warranty Name	Standard Watts Warranty

• Submittal Package - Automatic Control Valve LFM115-74

UPC - 098268634891
