Watts LFM115-74 4 - Part of the LFM115-74 Series

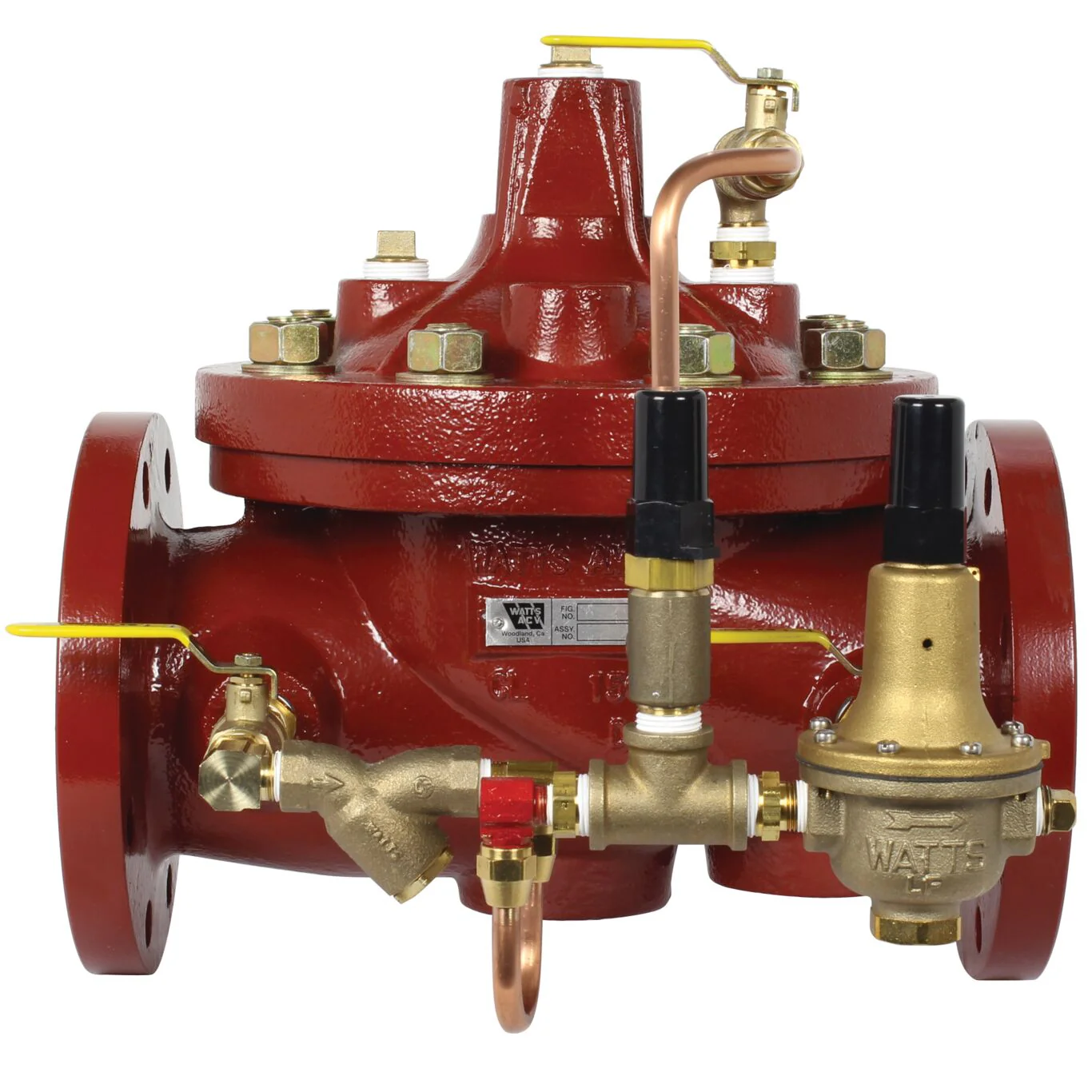

This 4 inch globe pattern class 150 flanged epoxy coated pressure reducing control valve, Mustang series M115-74, is designed to automatically reduce a fluctuating higher inlet pressure to a constant lower downstream pressure regardless of varying flow rates. The quick closing action of the valve limits possible damaging high inlet pressure from passing through the valve to downstream piping. Flow requirements below the normal range of the main line valve are handled by a separate, low flow by-pass valve. This valve includes full port, isolation cocks, and pilot circuit Y strainer.

Features

• Globe pattern
• Class 150 flanged
• Epoxy coated
• Copper tubing/brass fittings

Specifications
ArmorTek Technology	No
Brand	Watts
Buy American Act Compliant	NO
Coating	Bonded Epoxy
EAN	098268048070
Lead Free	Yes
Part Number	V8583-15
Series	LFM115-74
Warranty Name	Standard Watts Warranty

• Submittal Package - Automatic Control Valve LFM115-74

UPC - 098268048070
