Watts LFLLL210-5-M2 3/4 - Part of the LF210-5 Series

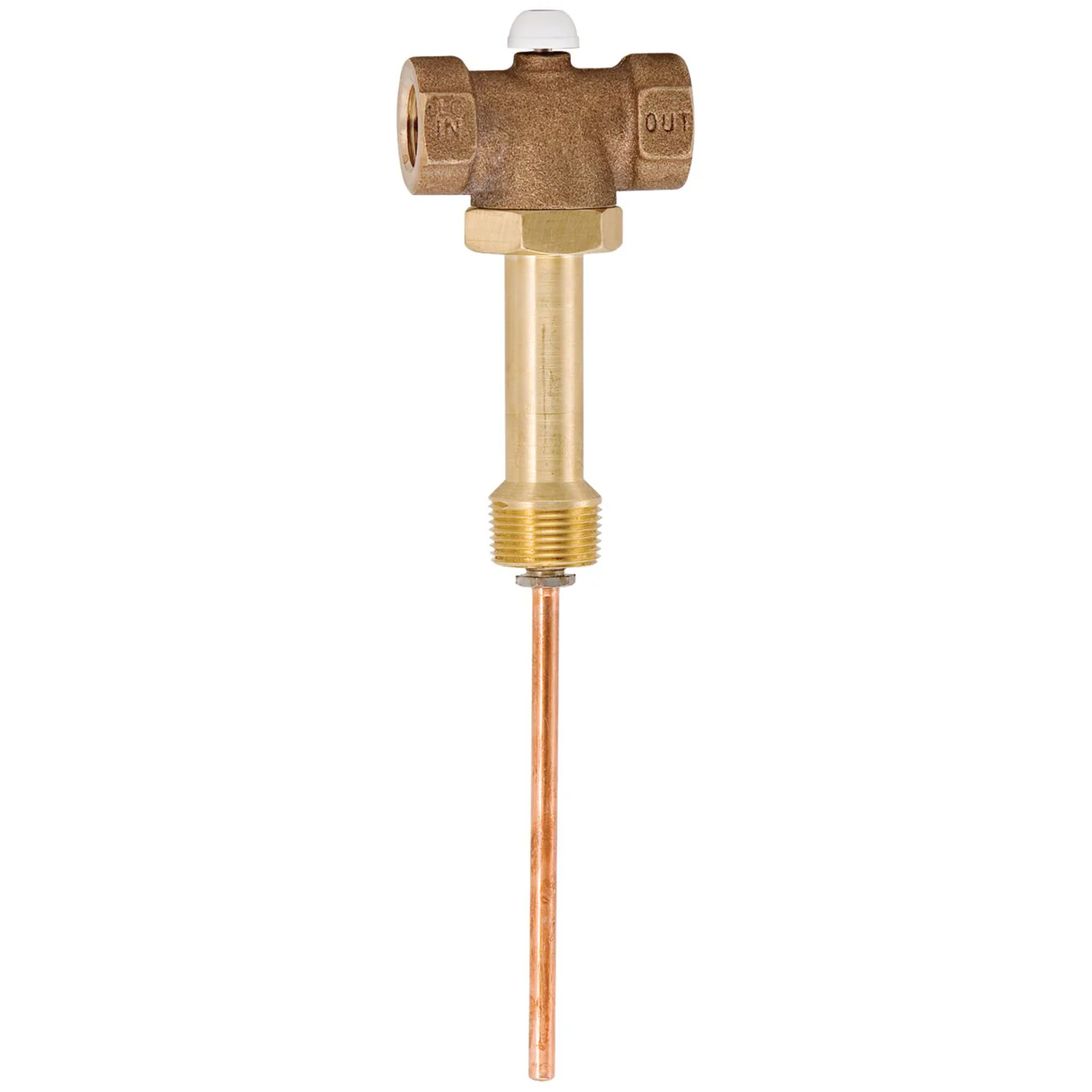

This 3/4 inch lead free automatic gas shutoff valve is used in gas water heater applications to protect against overheating the water in the domestic hot water supply heating system. It is a self contained device consisting of disc-to-metal seating, manual reset button, trip latch assembly, stainless steel spring seats, thermostat with extension tube and extended shank for up to 3 inch thick insulation. This immersion-type valve automatically shuts off the gas supply to the heater if the temperature reaches 210 degrees F (99 degrees C).

Features

• Extended shank for water heaters with up to 3 IN of tank insulation
• Burn N disc to metal seating for a positive seal
• Manual reset button to resume heater service
• Snap acting trip latch closes the valve at a controlled temperature

Specifications
Body Material	Lead Free Copper Silicon Alloy
Brand	Watts
EAN	098268457308
Inlet Connection Size	1/2 IN
Inlet Connection Type	Female Threaded
Inlet Thread Type	NPT
Lead Free	YES
Maximum Temperature-Fahrenheit	210
Outlet Connection Size	1/2 IN
Outlet Connection Type	Female Threaded
Outlet Thread Type	NPT
Part Number	0295399
Protection Type	Temperature
Series	LF210-5
Shank Length	2 7/8 IN
Temperature Relief-Fahrenheit	210
Thermostat Probe Length	8 13/16 IN

• Specification Sheet - LF210-5

UPC - 098268457308
