Watts LFLL100XL 150-210 3/4 - Part of the LF100XL Series

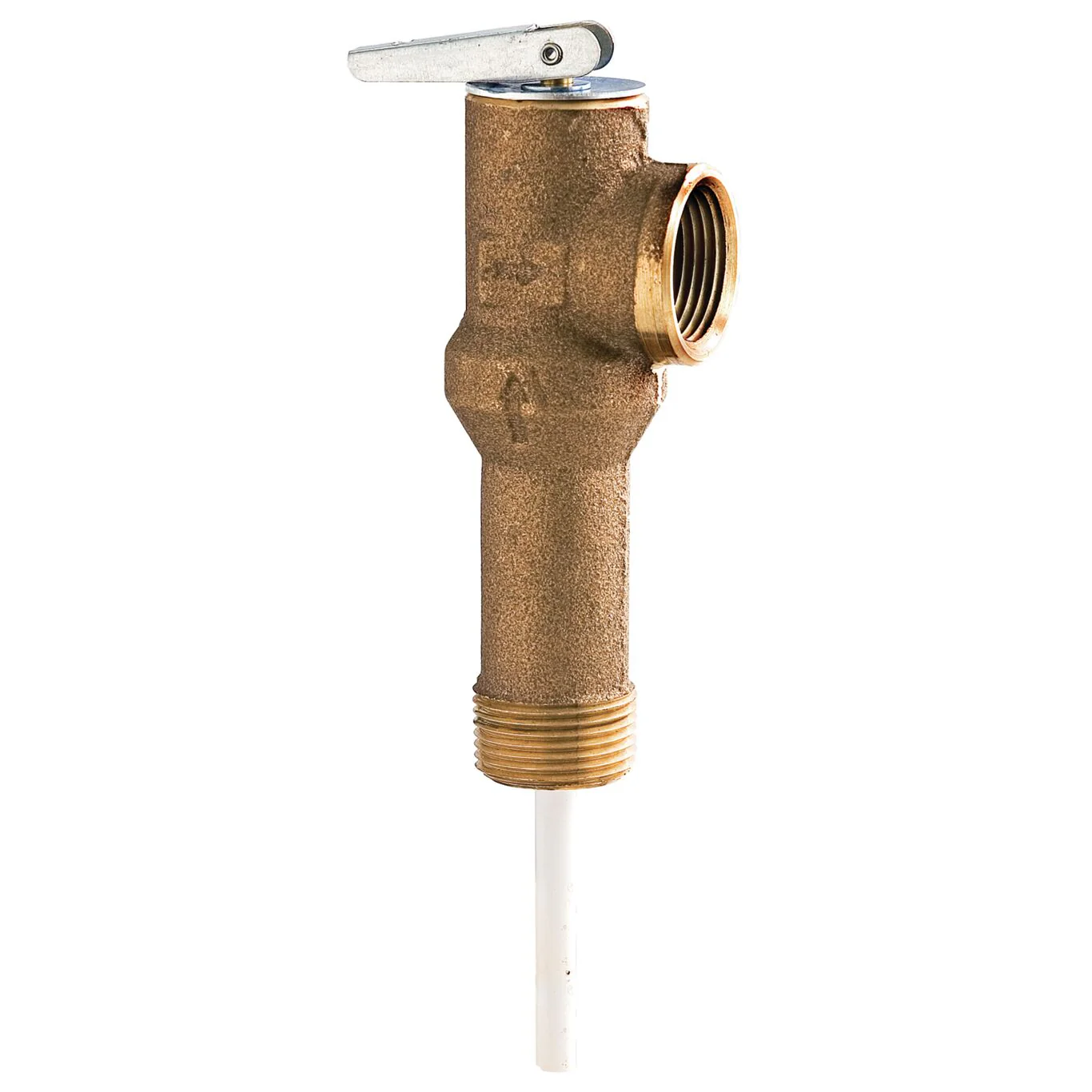

This 3/4 inch lead free temperature and pressure relief valve is designed to provide automatic temperature and pressure protection to hot water supply tanks and hot water heaters up to 105,000 BTU/hr. This two-in-one relief valve provides a proven and cost effective means to protect against excessive temperature and pressure emergency conditions. It features a lead free copper alloy body with extended shank to accommodated up to 2 1/2 IN of insulation, NPT male inlet and NPT female outlet connections, a unique thermostat with special thermo-bonded coating, and test lever. The temperature relief is 210 degrees F (99 degrees C) and the pressure relief is set at 150 psi (10.3 bar).

Features

• Lead free copper alloy body construction
• Extended shank for thick tank insulation up to 2 1/2 inches
• Extension thermostat with thermo-bonded coating
• Stainless steel spring

Specifications
Body Material	Lead Free Copper Silicon Alloy
Brand	Watts
Buy American Act Compliant	YES
EAN	098268432374
GPM-When Relieved	Does Not Apply To Product
Inlet Connection Size	3/4 IN
Inlet Connection Type	Male Threaded
Inlet Thread Type	NPT
Lead Free	YES
Maximum Temperature-Fahrenheit	210
Maximum Working Pressure-PSI	113
Outlet Connection Size	3/4 IN
Outlet Connection Type	Female Threaded
Outlet Thread Type	NPT
Part Number	0556002
Pressure Range	Does Not Apply To Product
Pressure Relief Setting-PSI	150
Protection Type	Temperature And Pressure
Series	LF100XL
Shank Length	2 1/16 IN
Temperature Relief-Fahrenheit	210
Thermostat Material	Copper
Thermostat Probe Length	2 IN

• Specification Sheet - LF1L, LF1XL, LF10L, LF100XL

UPC - 098268432374
