Watts LFH560 3/4 - Part of the LFH560 Series

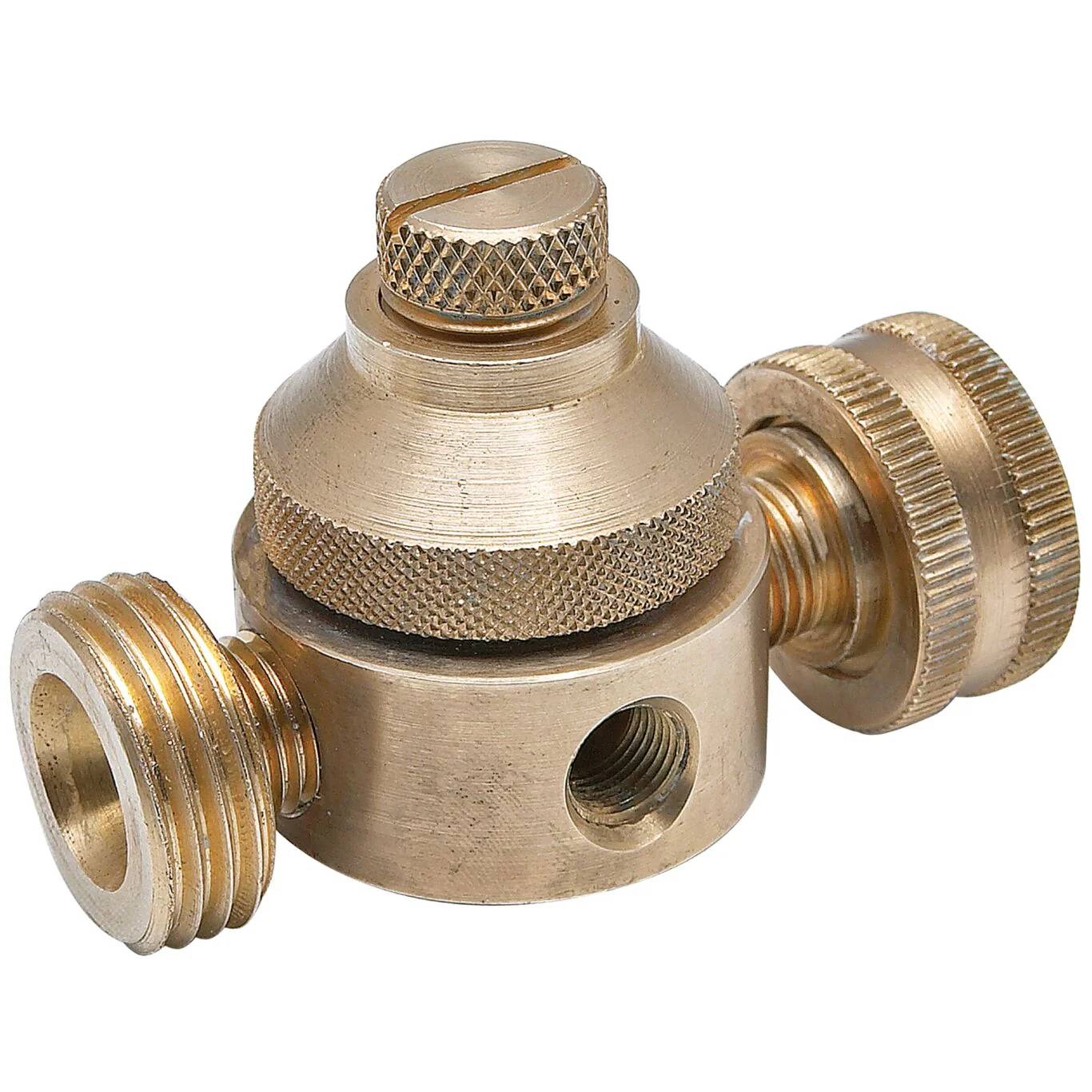

This 3/4 inch lead free mini water pressure regulator is designed to reduce incoming water pressure to protect plumbing system components and reduce water consumption. It is used in OEM applications to regulate water pressure in systems where a small economical package is required such as grid systems and recreational vehicles. It consists of a rugged lead free brass body, female hose inlet by male hose outlet threaded connections, plugged gauge port, Buna-N seat and diaphragm, oversized orifice, stainless steel stem and spring, and a heavy duty slotted and knurled adjusting screw. The adjustable reduced pressure range is 10 to 60 psi (0.68 to 4.13 bar) and is factory set at 40 psi (2.8 bar).

Features

• Lead free brass body
• Stainless steel stem and spring
• Oversized orifice
• Heavy duty slotted and knurled adjusting screw

Specifications
Adjustable Reduced Pressure Range	10 to 60
Adjustable Reduced Pressure Range-BAR	0.7 to 4.1
Body Material	Lead Free Brass
Brand	Watts
Corrosion Resistant Coating	No
Disc Material	Buna-N
EAN	098268582079
Gauge Option	No Gauge
High Pressure Reduced Pressure Range	Does Not Apply To Product
High Pressure Reduced Pressure Setting	Does Not Apply To Product
Inlet Connection Size	3/4 IN
Inlet Connection Type	Female Threaded
Inlet Thread Type	NH
Lead Free	YES
Maximum Operating Temperature-Fahrenheit	140
Maximum Working Pressure-BAR	21.00
Maximum Working Pressure-PSI	300
Minimum Temperature - Celsius	0.60
Minimum Temperature-Fahrenheit	33
Outlet Connection Size	3/4 IN
Outlet Connection Type	Female Threaded
Outlet Thread Type	NH
Part Number	0121264
Series	LFH560
Standard Reduced Pressure Setting-BAR	2.80
Standard Reduced Pressure Setting-PSI	40
Strainer	No
Strainer Material	Does Not Apply To Product
Thermal Expansion Bypass	No
Trim Material	Lead Free Brass
Type	Kit
Valve Style	Standard

• Specification Sheet - LF560, LFH560

UPC - 098268582079
