Watts LFFBV-3C-SS 1 1/2 - Part of the LFFBV-3C-SS Series

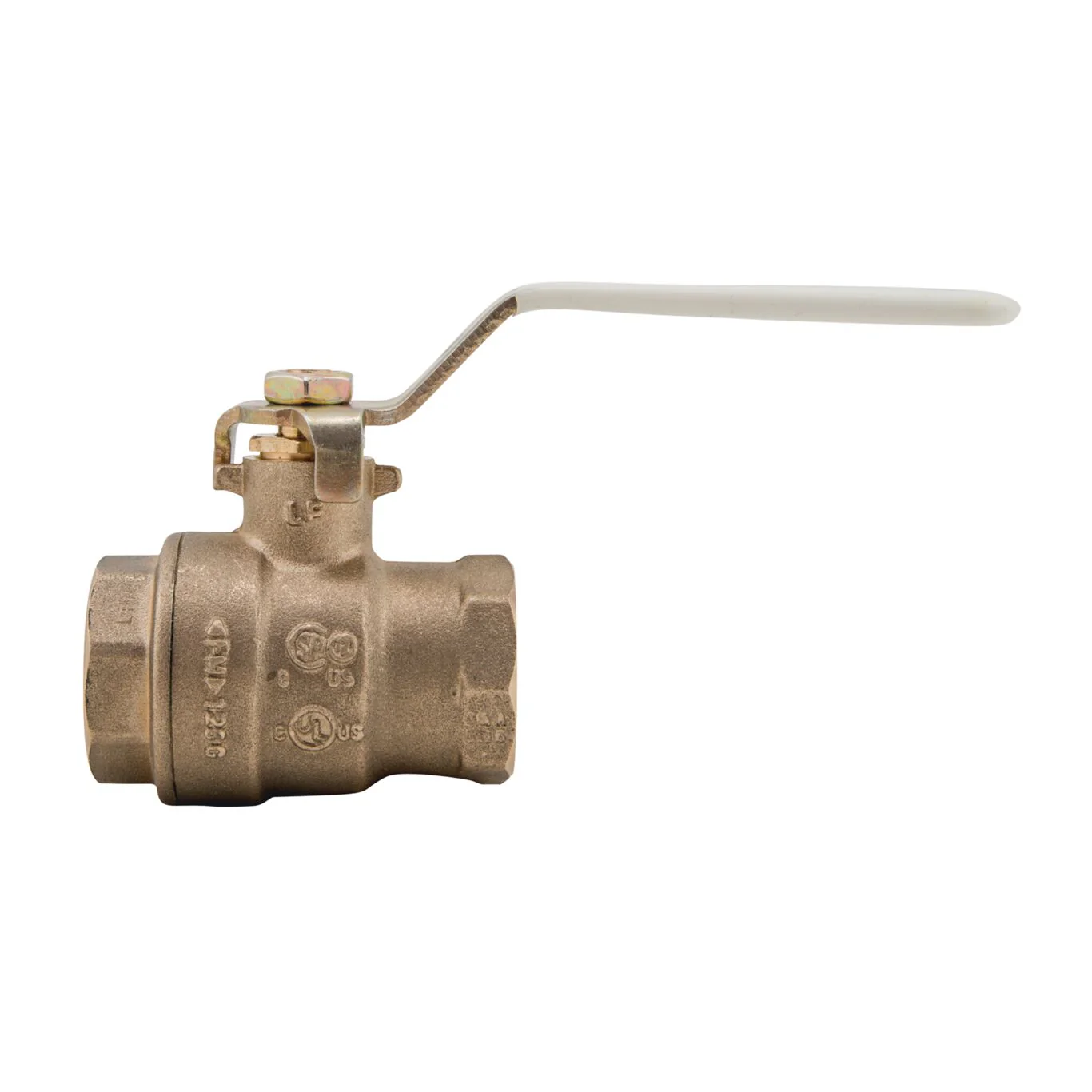

This 1 1/2 inch 2-piece full port lead free ball valve is used in commercial and industrial applications for a full range of liquids and gases. It features a lead free brass body with threaded end connections, bottom-loaded blowout proof stem, virgin PTFE seat, thrust washer, adjustable stem packing gland, stem packing nut, stainless steel ball and stem, lead free brass adapter and steel handle. The pressure rating is 600 psi WOG and 150 psi WSP.

Features

• Lead free construction
• Stainless steel ball and stem
• Bottom loaded blowout proof stem
• Threaded end connections

Specifications
Actuation	No
Assembled Dry	Yes
Balance Stop Plate	No
Ball Material	316 Stainless Steel
Body Finish	Brass
Body Material	Lead Free Copper Silicon Alloy Brass
Brand	Watts
Buy American Act Compliant	NO
Class Rating	Does Not Apply To Product
Control Type	Lever Handle
CV Rating	Does Not Apply To Product
EAN	098268695908
Electrical Rating	Does Not Apply To Product
Inlet Connection Size	1 1/2 IN
Inlet Connection Size-Metric	40 MM
Inlet Connection Type	Female Threaded
Inlet Thread Type	NPT
Lead Free	YES
Maximum Temperature-Fahrenheit	400
Minimum Temperature - Celsius	-18.00
Minimum Temperature-Fahrenheit	0
Operating Torque	Does Not Apply To Product
Outlet Connection Size	1 1/2 IN
Outlet Connection Type	Female Threaded
Outlet Thread Type	NPT
Part Number	0123466
Port Type	Full
Seat Material	Virgin PTFE
Series	LFFBV-3C-SS
Stem Packing Material	Virgin PTFE
Stem Shaft Material	316 Stainless Steel
Stem Type	Bottom Loaded Blowout Proof
Thrust Washer Material	Virgin PTFE
Valve Style	2-piece
WOG Rating	600 PSI

• Specification Sheet - LFFBV-3C-SS

UPC - 098268695908
