Watts LFFBV 1 1/4 - Part of the LFFBV Series

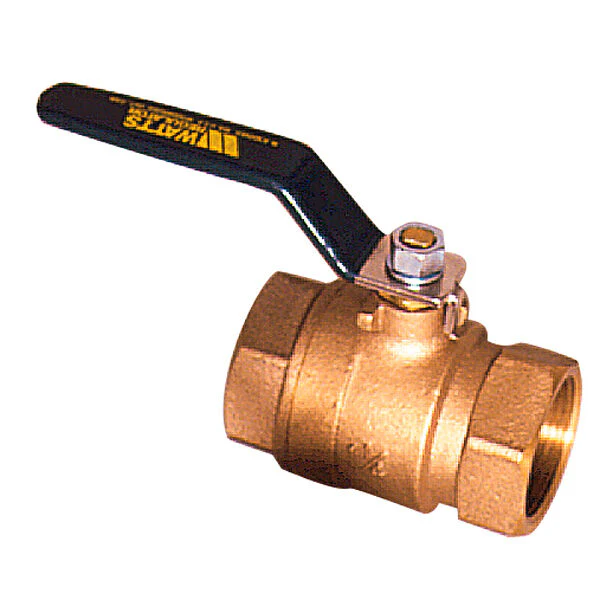

This 1 1/4 inch lead free two-piece, full port, ball valve with female threaded end connections is used in commercial and industrial backflow applications. The valve features bronze body construction, adjustable packing gland, chrome-plated bronze ball, virgin PTFE seats and seals, a bottom loaded blowout proof stem and zinc-plated carbon steel handle with vinyl insulator. Each valve undergoes extensive factory testing before it is shipped, assuring a quality Watts product. The temperature range is 0 to 350 degrees F (-18 to 177 degrees C) at 50 psi (344.7 kPa). The pressure range is 600 psi (41.3 bar) WOG non-shock at 100 degrees F (38 degrees C) and 125 psi (8.6 bar) WSP

Features

• Bronze body construction with chrome-plated brass ball
• Full port for minimal pressure drop
• Excellent for throttling and balancing applications for non-abrasive liquids
• Two-piece construction

Specifications
Actuation	No
Assembled Dry	No
Balance Stop Plate	No
Ball Material	Brass
Body Finish	Bronze
Body Material	Bronze
Brand	Watts
Buy American Act Compliant	NO
Class Rating	Does Not Apply To Product
Control Type	Lever Handle
CV Rating	110 GPM
EAN	098268500431
Electrical Rating	Does Not Apply To Product
Inlet Connection Size	1 1/4 IN
Inlet Connection Size-Metric	32 MM
Inlet Connection Type	Female Threaded
Inlet Thread Type	NPT
Lead Free	YES
Maximum Temperature-Fahrenheit	350
Minimum Temperature - Celsius	-18.00
Minimum Temperature-Fahrenheit	0
Operating Torque	250 in-lbs
Outlet Connection Size	1 1/4 IN
Outlet Connection Type	Female Threaded
Outlet Thread Type	FPT
Part Number	0792509
Port Type	Full
Seat Material	Virgin PTFE
Series	LFFBV
Stem Packing Material	Virgin PTFE
Stem Shaft Material	Brass
Stem Type	Bottom Loaded Blowout Proof
Thrust Washer Material	Virgin PTFE
Valve Style	2-piece
WOG Rating	600 PSI

• Specification Sheet - LFFBV

UPC - 098268500431
