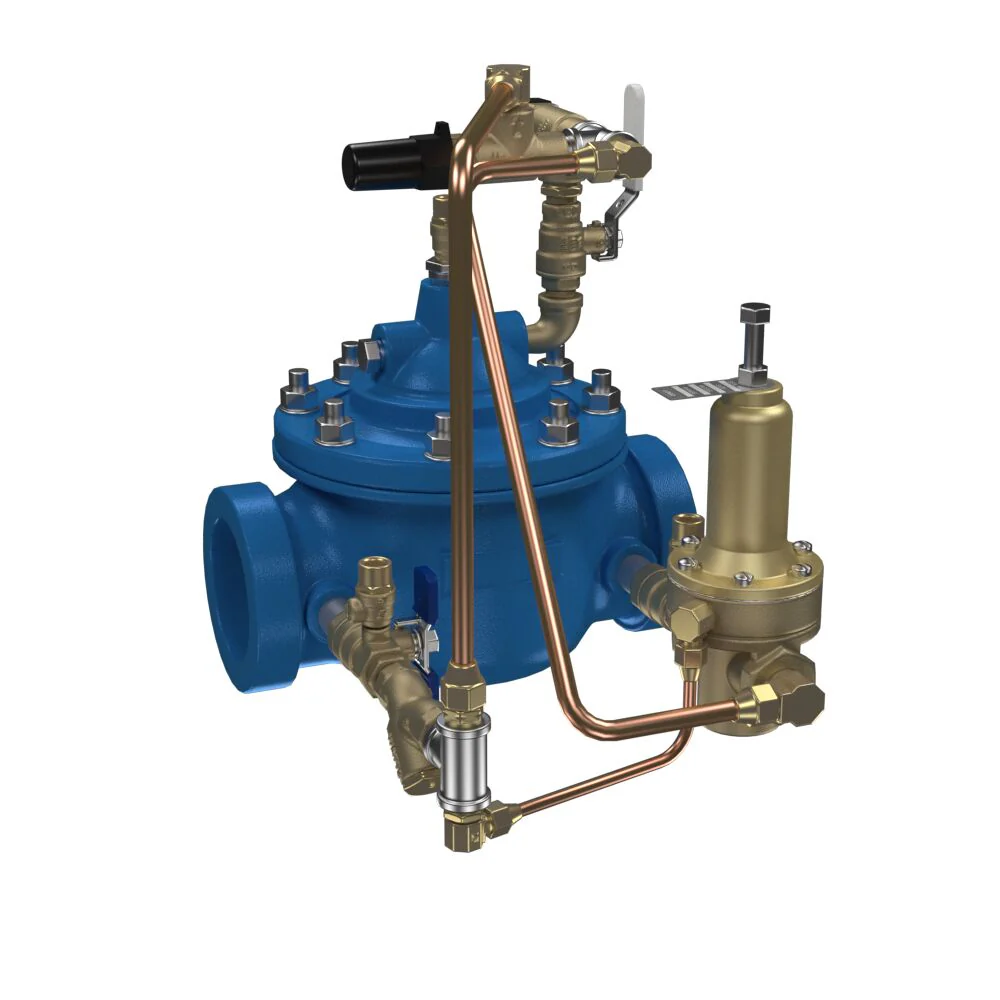

Watts LFF116 THD B 20-200 LS 1 1/2 - Part of the LFF116 Series

This 1 1/2 inch ACV is armed with ArmorTek^®, a patented 3-part advanced epoxy coating system designed to limit both microbial induced (MIC) and exposed metal substrate corrosion. This pressure relief control valve is designed to permit flow when upstream pressure is above the adjustable setpoint of the control pilot, and throttle toward closed when upstream pressure falls below the adjustable setpoint. When the valve is installed off the main line on the branch of a tee, it serves as a pressure relief control valve. It is normally closed and quickly opens when upstream pressure exceeds the pilot setting, relieving excess pressure. When the valve is located connecting two distribution zones, the valve acts as a pressure sustaining control valve. When the valve is installed on the discharge of a pump, it acts as backpressure control valve. This Classic valve style has a globe body pattern with threaded end connections, pilot adjustment range of 20-200 psi, configured with Buna elastomers, and limit switch.

Features

• Body construction with patented 3-part ArmorTek epoxy coating for advanced corrosion resistance
• Globe body pattern with threaded end connections
• Pilot adjustment range 20-200 psi
• Body and cover are constructed of strong and durable ductile iron (ASTM A536)
• Includes limit switch

Specifications
Adjustable Reduced Pressure Range	20-200 psi
Adjustable Reduced Pressure Range-BAR	1.4 - 13.8 BAR
ArmorTek Technology	Yes
Brand	Watts
Coating	Epoxy Coated Using ArmorTek Technology
EAN	098268639254
Inlet Connection Size	1 1/2 IN
Inlet Connection Type	Female Threaded
Lead Free	YES
Maximum Operating Temperature-Fahrenheit	160
Maximum Working Pressure-PSI	400
Outlet Connection Size	1 1/2 IN
Outlet Connection Type	Female Threaded
Part Number	2GK00039
Series	LFF116
Valve Style	Classic
Warranty Name	Watts Warranty - ACV ArmorTek

• Schematic - Automatic Control Valve LFF116

UPC - 098268639254
