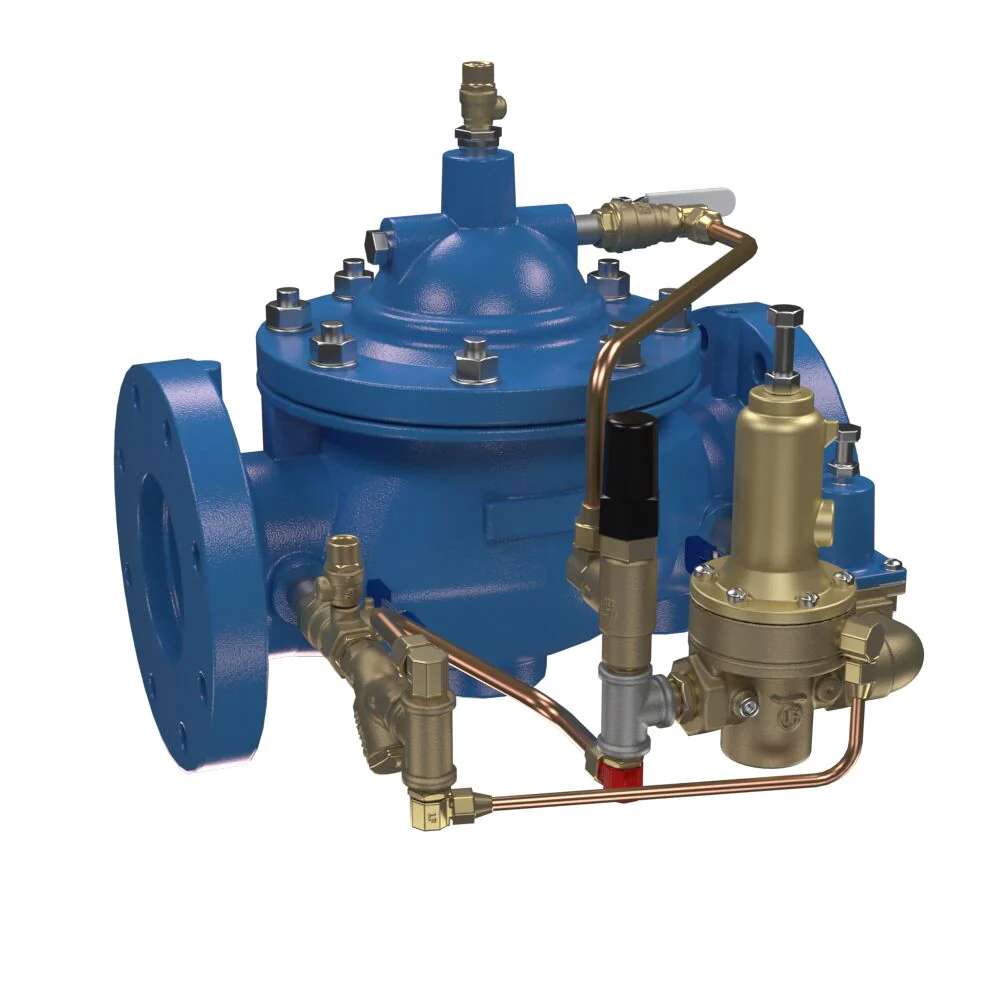

Watts LFF115-2 150 4 - Part of the LFF115-2 Series

This 4 inch ACV is armed with ArmorTek^®, a patented 3-part advanced epoxy coating system designed to limit both microbial induced (MIC) and exposed metal substrate corrosion. This pressure reducing and sustaining control valve is designed to automatically reduce a fluctuating higher upstream pressure to a constant lower downstream pressure regardless of varying flow rates, and sustain a minimum upstream pressure. This Classic valve style has a globe body pattern with class 150 flanged end connections.

Features

• Body construction with patented 3-part ArmorTek epoxy coating for advanced corrosion resistance
• Globe body pattern with class 150 flanged end connections
• Includes sustaining control valve
• Range 20-175 psi (standard)

Specifications
Adjustable Reduced Pressure Range	20 - 175 PSI
Adjustable Reduced Pressure Range-BAR	1.4 - 12.1 BAR
ArmorTek Technology	Yes
Body Material	Ductile Iron
Brand	Watts
Coating	Epoxy Coated Using ArmorTek Technology
EAN	098268591118
Inlet Connection Size	4 IN
Inlet Connection Type	Flanged Joint
Lead Free	YES
Maximum Operating Temperature-Fahrenheit	160
Maximum Working Pressure-PSI	250
Outlet Connection Size	4 IN
Outlet Connection Type	Flanged Joint
Part Number	2GE00029
Series	LFF115-2
Valve Style	Classic
Warranty Name	Watts Warranty - ACV ArmorTek

• Schematic - Automatic Control Valve LFF115-2

UPC - 098268591118
