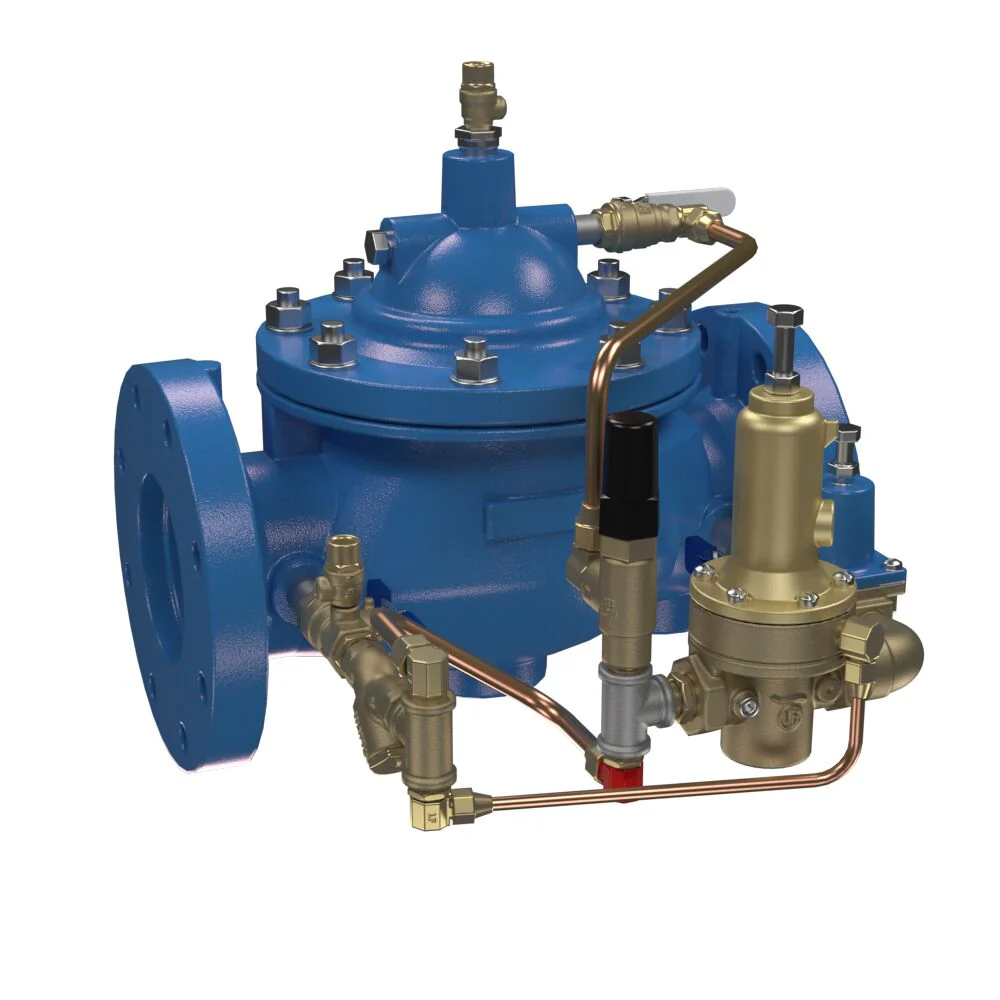

Watts LFF115 150 B 2-30 LS 8 - Part of the LFF115 Series

This 8 inch ACV is armed with ArmorTek^®, a patented 3-part advanced epoxy coating system designed to limit both microbial induced (MIC) and exposed metal substrate corrosion. This pressure reducing control valve is designed to automatically reduce a fluctuating higher inlet pressure to a constant lower downstream pressure regardless of varying flow rates. The quick closing action of the valve limits possible damaging high inlet pressure from passing through the valve to downstream piping. This Classic valve style has a globe body pattern with class 150 flanged end connections, a pressure range of 2-30psi, configured with inlet and outlet gauge ports, and Buna-N elastomers, and limit switch.

Features

• Body construction with patented 3-part ArmorTek epoxy coating for advanced corrosion resistance
• Globe body pattern with class 150 flanged end connections
• Range 2-30 psi (standard)
• Inlet/outlet gauge ports, gauge not included
• Includes limit switch

Specifications
Adjustable Reduced Pressure Range	2 - 30 PSI
Adjustable Reduced Pressure Range-BAR	Does Not Apply to Product
ArmorTek Technology	Yes
Body Material	Ductile Iron
Brand	Watts
Coating	Epoxy Coated Using ArmorTek Technology
EAN	098268616057
Inlet Connection Size	8 IN
Inlet Connection Type	Flanged Joint
Lead Free	YES
Maximum Operating Temperature-Fahrenheit	160
Maximum Working Pressure-PSI	250
Outlet Connection Size	8 IN
Outlet Connection Type	Flanged Joint
Part Number	2GE00149
Series	LFF115
Valve Style	Classic
Warranty Name	Watts Warranty - ACV ArmorTek

• Schematic - Automatic Control Valve LFF115
• Schematic - Automatic Control Valve LFF115 (Spanish)

UPC - 098268616057
