Watts LFF113FP 150-FP2 8 - Part of the LFF113FP Series

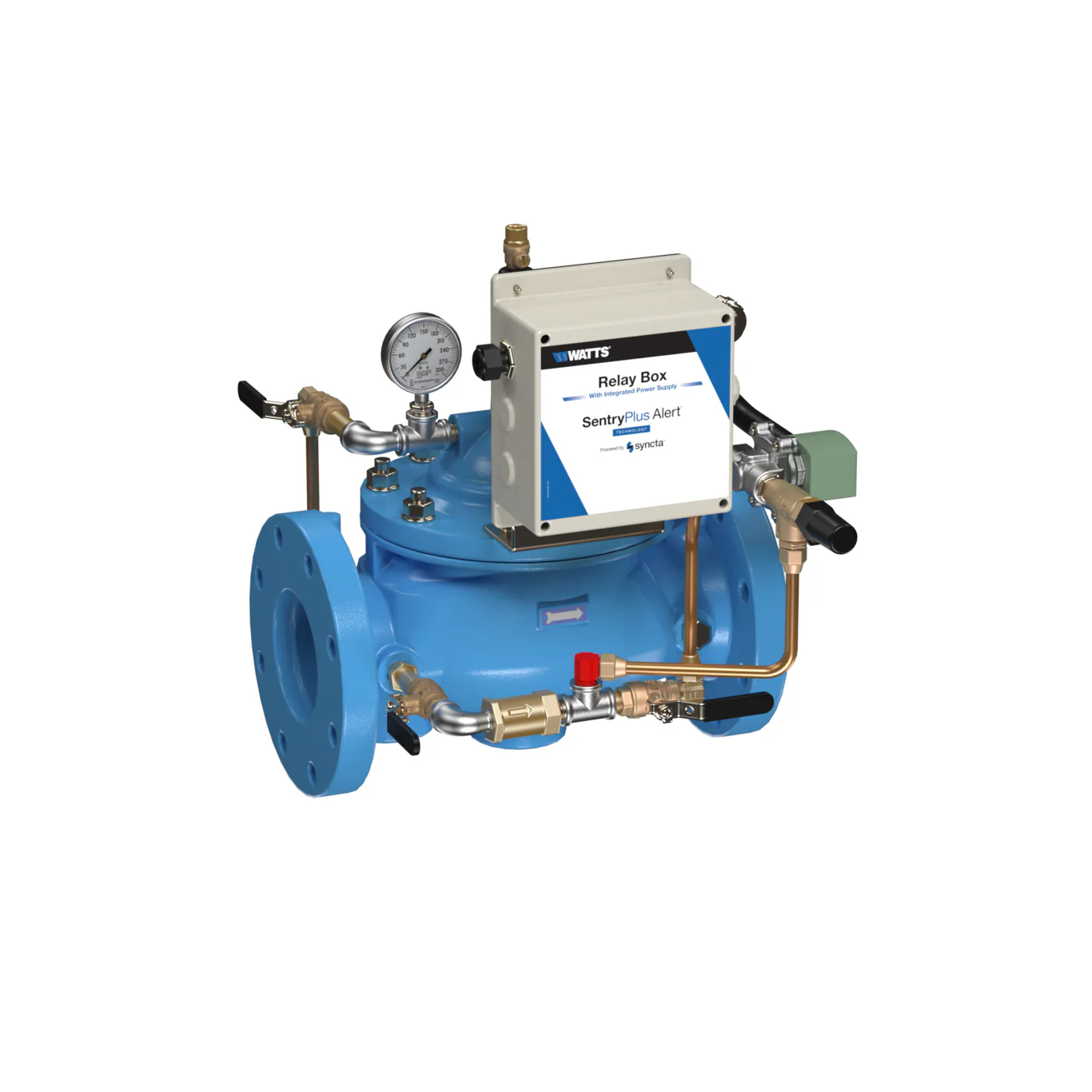

This 8 inch LFF113FP flood protection shutdown control valve protects against property damage caused by continuous discharge from a reduced pressure zone backflow assembly. With SentryPlus Alert® continuous monitoring technology in place, the flood sensor and sensor activation module attached to the assembly relief valve signal the relay box when discharge is continuous. The activation module includes a tiny time delay to prevent signaling based on intermittent or nuisance relief valve discharges. Activated through an add-on connection kit, the sensor can trigger the alert system sending notification of flood detection to facility personnel. This Classic valve style has a globe body pattern with class 150 flanged end connections.
Features- Class 150 flanged
- SentryPlus Alert flood monitoring and alert system
- Multi-channel alert capabilities
- Solenoid control
| Specifications | |
|---|---|
| ArmorTek Technology | No |
| Body Material | Ductile Iron |
| Brand | Watts |
| EAN | 737733053941 |
| Inlet Connection Size | 8 IN |
| Inlet Connection Type | Flanged Joint |
| Inlet Thread Type | Does Not Apply To Product |
| Lead Free | Yes |
| Outlet Connection Size | 8 IN |
| Outlet Connection Type | Flanged Joint |
| Outlet Thread Type | Does Not Apply To Product |
| Part Number | F8800-19 |
| Series | LFF113FP |
| Trim Material | 316 Stainless Steel |
| Warranty Name | Standard Watts Warranty |
- Specification Sheet - LFF113FP
- Specification Sheet - LFF113FP (French)
- Specification Sheet - LFF113FP (Spanish)
