Watts LFDPTG3-2 1/2 0-75 1/2 - Part of the LFDPTG-3 Series

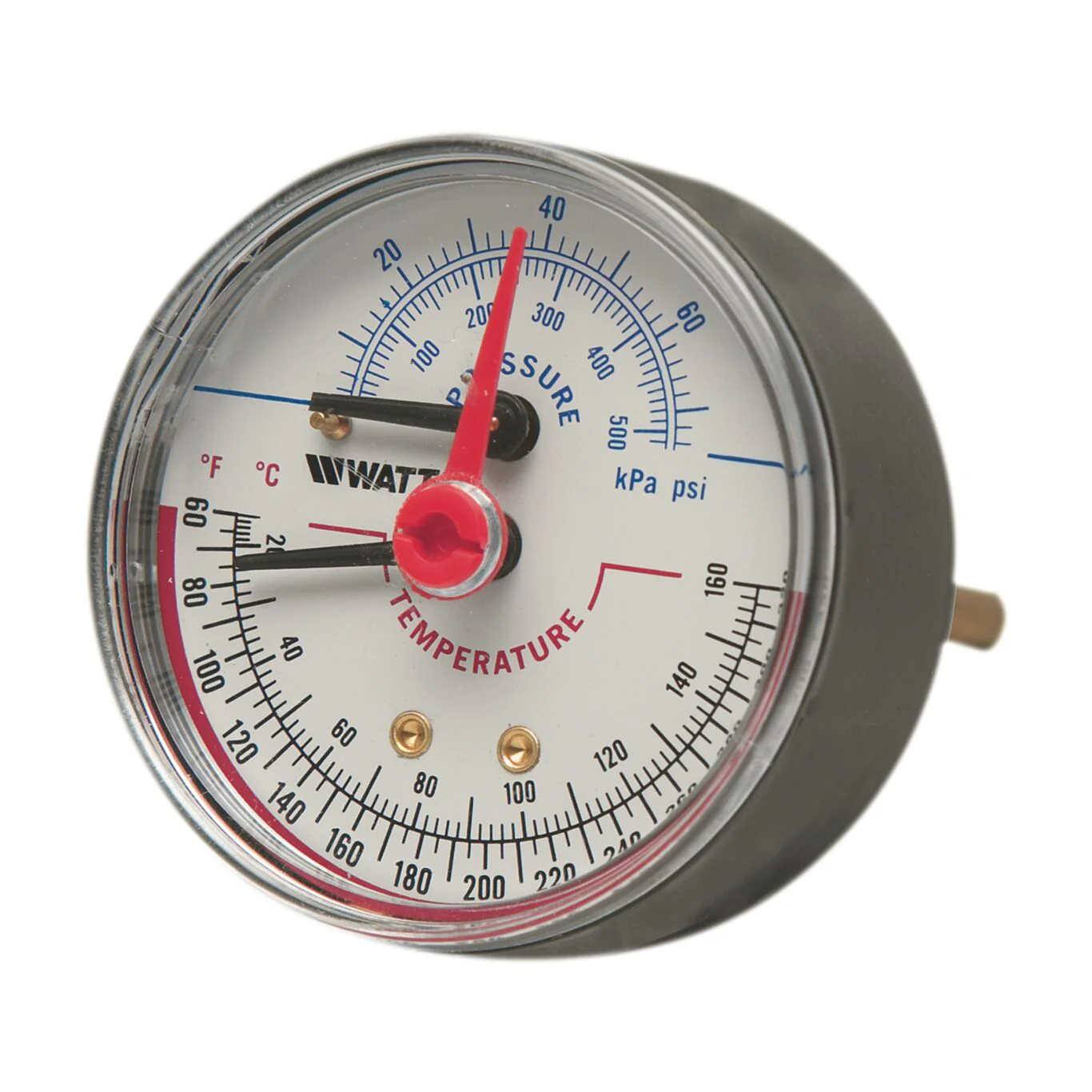

This 1/2 inch lead free center back entry pressure temperature gauge is used in commercial, residential, and institutional HVAC applications. It features a center back entry with extended temperature element, a black enamel steel case, Kostil polymer window, 1/2 inch NPT connection, bimetal spiral spring, and copper alloy Bourdon tube pressure element with ASME Type B accuracy. This gauge features a 2 1/2 inch dial with pressure rating scale from 0 to 75 psi and temperature range 60 to 320 degrees F.

Features

• Copper alloy Bourdon sensing element
• Black enamel steel case
• Kostil polymer window
• Tin alloy welding

Specifications
Air Valve	No
Brand	Watts
Buy American Act Compliant	NO
Case Material	Steel
Dial Size	2 1/2 IN
EAN	098268589863
Entry Style	Back
Inlet Connection Size	1/2 IN
Inlet Connection Type	Male Threaded
Lead Free	YES
Manual Shutoff	No
Maximum Operating Temperature-Fahrenheit	320
Minimum Temperature-Fahrenheit	60
Part Number	0121686
Pressure Scale	0 to 75 PSI
Sensing Element	Yes
Sensing Fluid	No
Series	LFDPTG-3
Stem Shaft Material	Lead Free Brass
Temperature Range	60 to 320 degrees F
Thermostat Probe Length	Does Not Apply To Product
Thermowell	No
VR Retaining Valve	No

• Specification Sheet - LFDPTG-3

UPC - 098268589863
