Watts LFB6080G2-SS 3/8 - Part of the LFB6080G2-SS Series

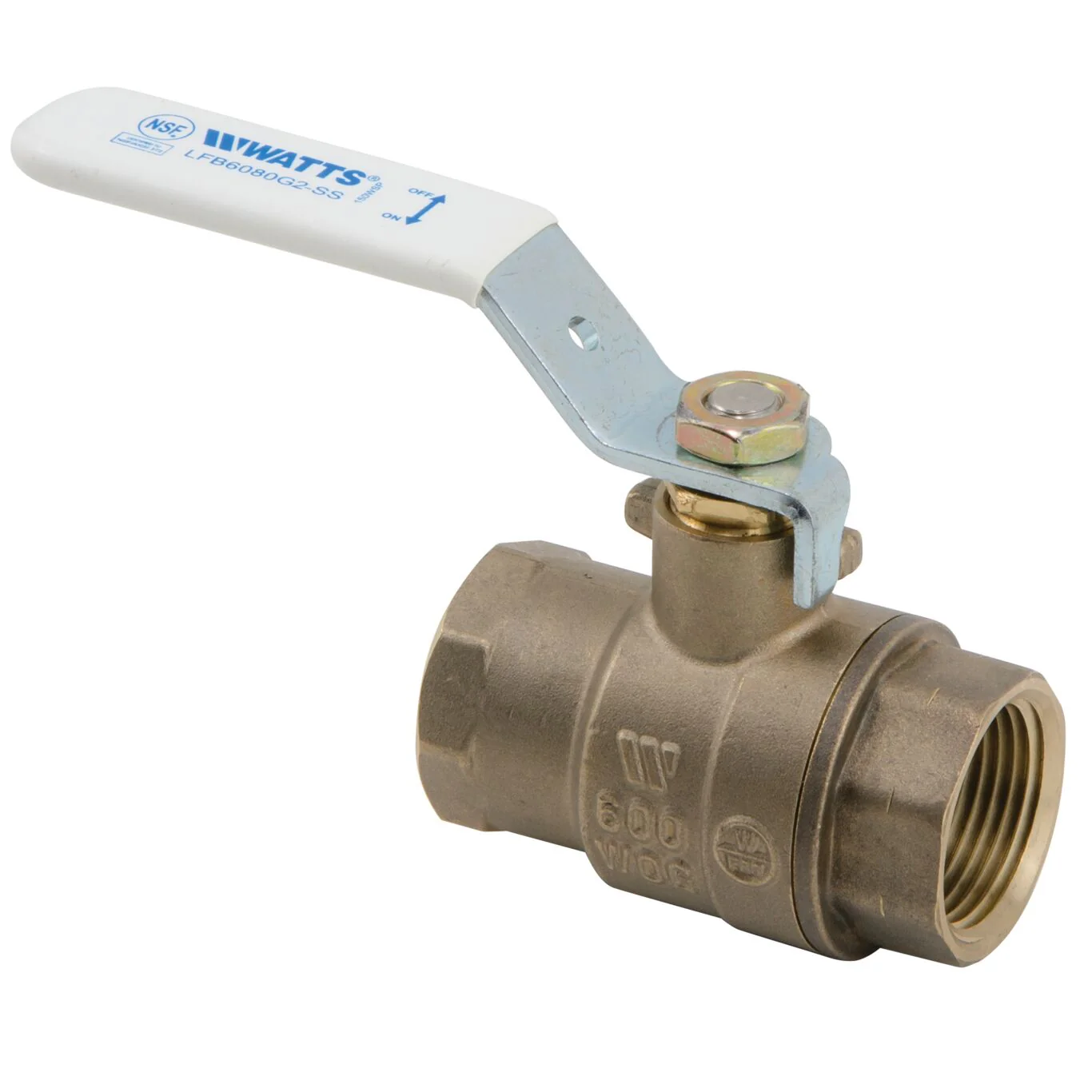

This 3/8 inch lead free 2-piece full port ball valve with stainless steel ball and stem and NPT threaded end connections is used in commercial and industrial applications for a full range of liquids and gases. A full port orifice ensures minimal pressure drop, while the stainless steel ball and stem provide lasting service. It consists of Durafill (carbon glass filled PTFE) seat, bottom loaded blowout proof stem, and adjustable stem packing. This ball valve is rated for 600 WOG/150 WSP.

Features

• Stainless steel ball and stem
• White handles for easy lead free identification
• 600 WOG, 150 WSP
• Full port design

Specifications
Actuation	No
Assembled Dry	Yes
Balance Stop Plate	No
Ball Material	316 Stainless Steel
Body Finish	Bronze
Body Material	Bronze
Brand	Watts
Class Rating	Does Not Apply To Product
Control Type	Lever Handle
CV Rating	Does Not Apply To Product
EAN	098268763683
Electrical Rating	Does Not Apply To Product
Inlet Connection Size	3/8 IN
Inlet Connection Size-Metric	10 MM
Inlet Connection Type	Female Threaded
Inlet Thread Type	NPT
Lead Free	YES
Maximum Temperature-Fahrenheit	400
Minimum Temperature - Celsius	-18.00
Minimum Temperature-Fahrenheit	0
Operating Torque	Does Not Apply To Product
Outlet Connection Size	3/8 IN
Outlet Connection Type	Female Threaded
Outlet Thread Type	NPT
Part Number	0450116
Port Type	Full
Seat Material	Virgin PTFE
Series	LFB6080G2-SS
Stem Packing Material	Virgin PTFE
Stem Shaft Material	316 Stainless Steel
Stem Type	Blowout Proof
Thrust Washer Material	Virgin PTFE
Type	Kit
Valve Style	2-piece
WOG Rating	600 PSI

• Specification Sheet - LFB6080G2-SS, LFB6081G2-SS

UPC - 098268763683
