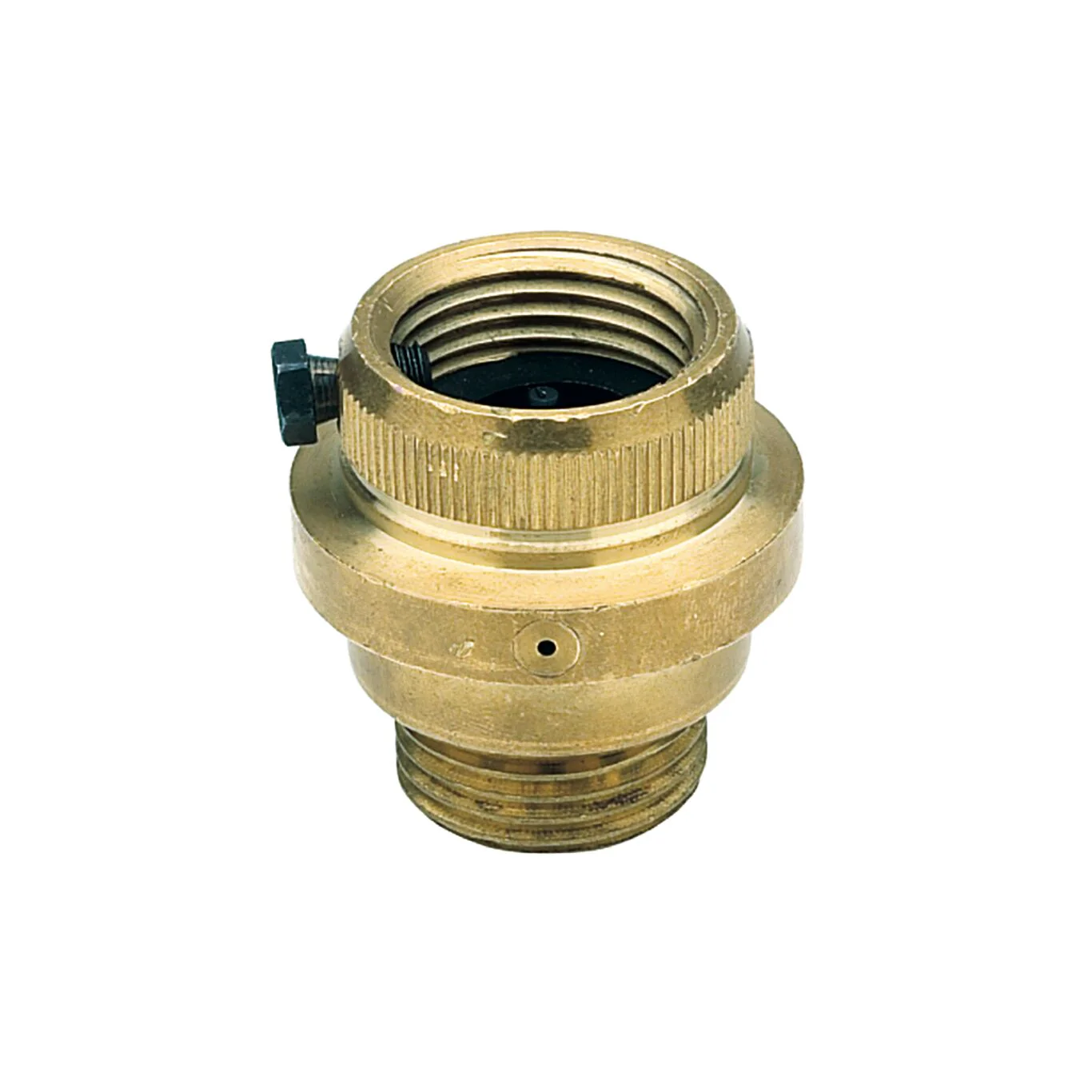

Watts LF8FR 3/4 - Part of the LF8 Series

This 3/4 inch lead free hose connection vacuum breaker backflow preventer is designed to prevent the flow of contaminated water back into the potable water supply and is specially made to permit the attachment of portable hoses to hose thread faucets. It provides protection against backsiphonage for health hazard installations requiring non-continuous pressure. This vacuum breaker backflow preventer has a freeze relief feature that protects the valve from freeze damage. It attaches to a sill cock with a 3/4 inch female hose thread by 3/4 inch male hose thread connection. The maximum pressure is 125 psi and maximum temperature is 180 degrees F.

Features

• Lead Free construction
• Easy to install
• Break away set screw
• No special tools required for servicing

Specifications
Backflow Preventer Type	Vacuum Breaker
Body Finish	Brass
Body Material	Lead Free Brass
Body Pattern	Does Not Apply To Product
Brand	Watts
Buy American Act Compliant	NO
Bypass	No
Bypass Size	Does Not Apply To Product
Cap And Tether	No
Disc Material	Rubber
EAN	098268434811
Elbow Fitting	No
Hazard Protection Level	Health Hazard
Hot And Harsh Water	No
Hydrant Connection	No
Inlet Connection Size	3/4 IN
Inlet Connection Size-Metric	20 MM
Inlet Connection Type	Female Threaded
Inlet Shutoff Valve Type	No Shutoff Valve
Inlet Thread Type	GHT
Lead Free	YES
Maximum Temperature-Fahrenheit	180
Maximum Working Pressure-BAR	8.60
Maximum Working Pressure-PSI	125
Meter Type	No Meter
Minimum Temperature - Celsius	0.50
Minimum Temperature-Fahrenheit	33
Outlet Connection Size	3/4 IN
Outlet Connection Type	Male Threaded
Outlet Shutoff Valve Type	No Shutoff Valve
Outlet Thread Type	GHT
Part Number	0792094
Polymer Coating	No
Pressure Operation	Continuous
Protection Type	Backsiphonage
Series	LF8
Strainer	No
Technologies	Does Not Apply To Product

• Specification Sheet - LF8

UPC - 098268434811
