Watts LF601 3/8 - Part of the LF601 Series

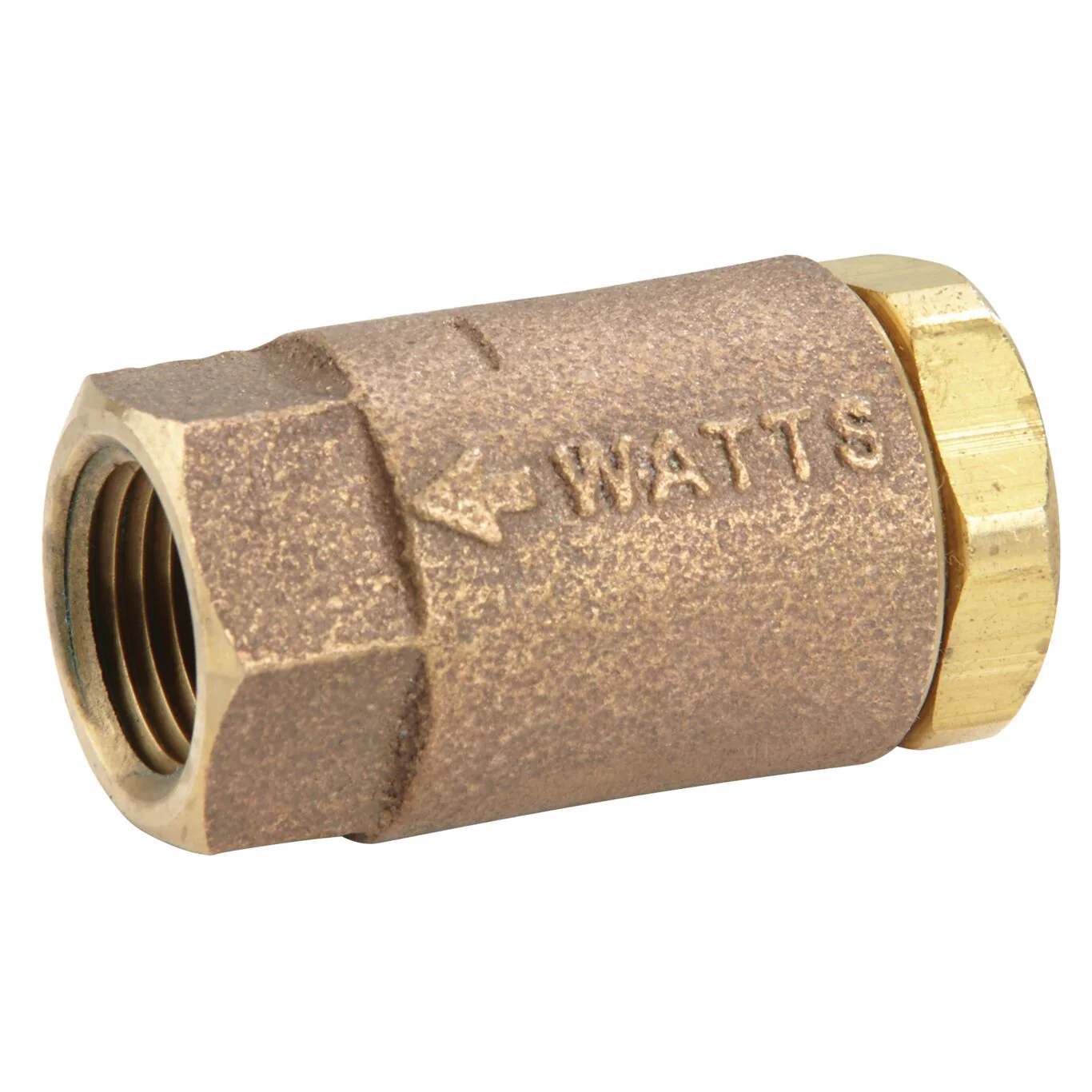

This 3/8 inch lead free Maxi-Flo check valve is used in general industrial and plumbing applications to prevent the effects of water hammer in the piping system. It provides a silent operation with low pressure drop and can be installed horizontally or vertically. This valve consists of a lead free brass body, lead free brass check and adapter, Viton^® disc, and NPT female threaded end connections. The maximum pressure rating is 400 psi (27.6 bar), WOG non-shock at 100 degrees F (38 degrees C).

Features

• Lead free brass body
• Integral lead free brass seat
• Silent operation
• Viton^® disc

Specifications
Body Material	Lead Free Cast Copper Silicon Alloy
Body Pattern	Straight
Brand	Watts
Disc Material	Viton
Disc Type	Conical
EAN	098268653335
Inlet Connection Size	3/8 IN
Inlet Connection Size-Metric	10 MM
Inlet Connection Type	Female Threaded
Inlet Thread Type	FPT
Lead Free	YES
Maximum Operating Temperature-Celsius	38.00
Maximum Operating Temperature-Fahrenheit	100
Maximum Working Pressure-PSI	400
Minimum Temperature - Celsius	-29.00
Minimum Temperature-Fahrenheit	-20
Outlet Connection Size	3/8 IN
Outlet Connection Type	Female Threaded
Outlet Thread Type	FPT
Part Number	0123072
Pressure-Temperature Rating	400 PSI at 100 degree F
Pressure-Temperature Rating-BAR	27.6 BAR at 38 degree C
Seat Material	Lead Free Brass
Series	LF601
WOG Rating	400 PSI

• Specification Sheet - 601

UPC - 098268653335
