Watts LF6 3/8 - Part of the LF6 Series

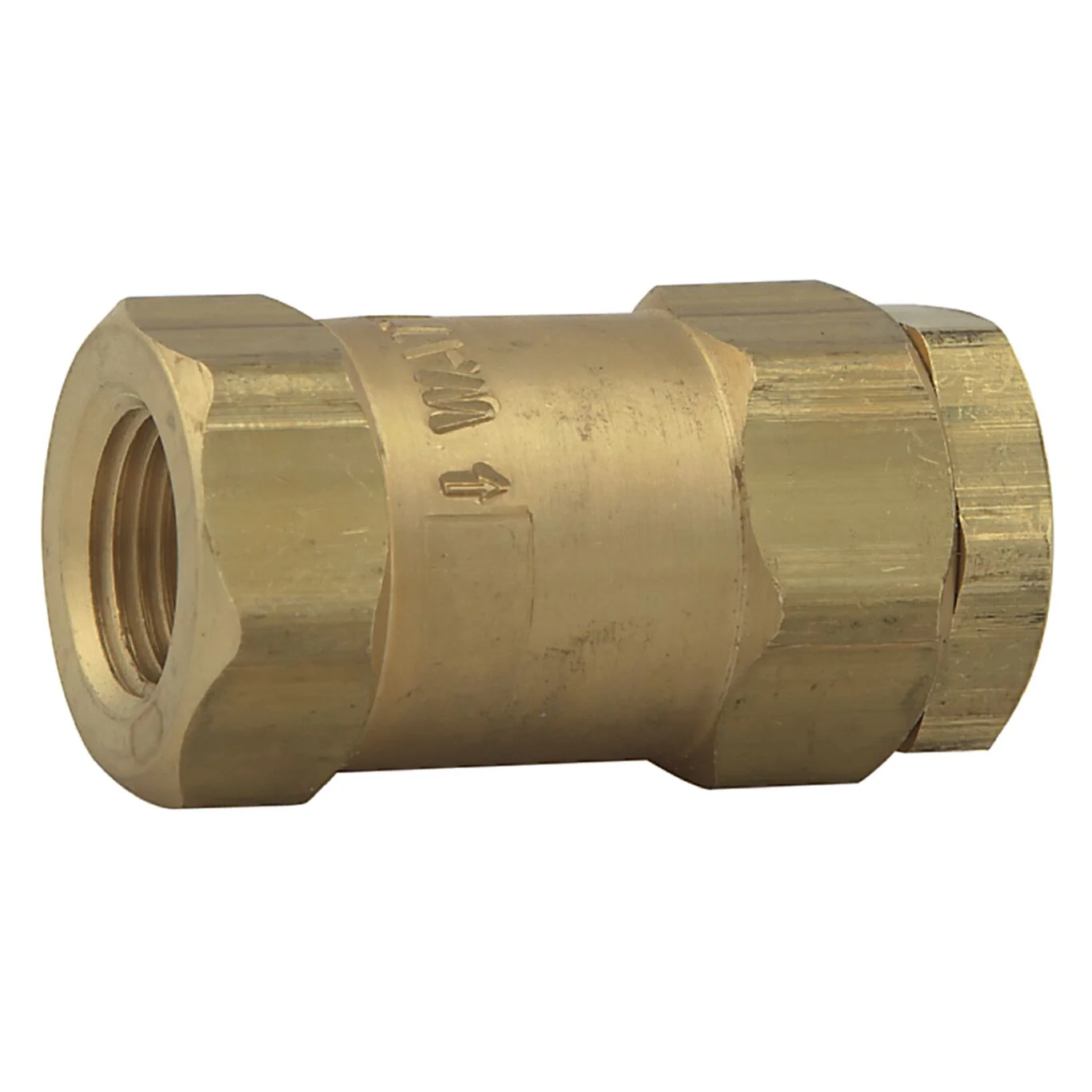

This 3/8 inch lead free MIDI check valve is used in general industrial and plumbing applications to prevent the effects of water hammer in the piping system. It provides a silent operation with low opening pressure, low pressure drop and can be installed horizontally or vertically. This valve consists of a lead free brass body, elastomer seat, NPT female threaded end connections, positive back stop, and a unique positive check module. The maximum pressure is 200 psi (13.8 bar) and the maximum temperature is 180 degrees F (82 degrees C).

Features

• Lead free brass body
• Elastomer seat
• NPT female x female threaded connections
• Bubble tight seating

Specifications
Body Material	Lead Free Copper Silicon Alloy
Body Pattern	Straight
Brand	Watts
Class Rating	Does Not Apply To Product
Disc Material	Does Not Apply To Product
Disc Type	Does Not Apply To Product
EAN	098268653168
Inlet Connection Size	3/8 IN
Inlet Connection Size-Metric	10 MM
Inlet Connection Type	Female Threaded
Inlet Thread Type	NPT
Lead Free	YES
Maximum Operating Temperature-Celsius	82.00
Maximum Operating Temperature-Fahrenheit	180
Maximum Working Pressure-PSI	200
Minimum Temperature - Celsius	-18.00
Minimum Temperature-Fahrenheit	0
Outlet Connection Size	3/8 IN
Outlet Connection Type	Female Threaded
Outlet Thread Type	NPT
Part Number	0123067
Pressure-Temperature Rating	200 PSI
Pressure-Temperature Rating-BAR	13.8 BAR
Seat Material	Metal
Series	LF6
WOG Rating	200 PSI

• Specification Sheet - LF6/P6

UPC - 098268653168
