Watts LF560G-0-125 1/8 - Part of the LF560 Series

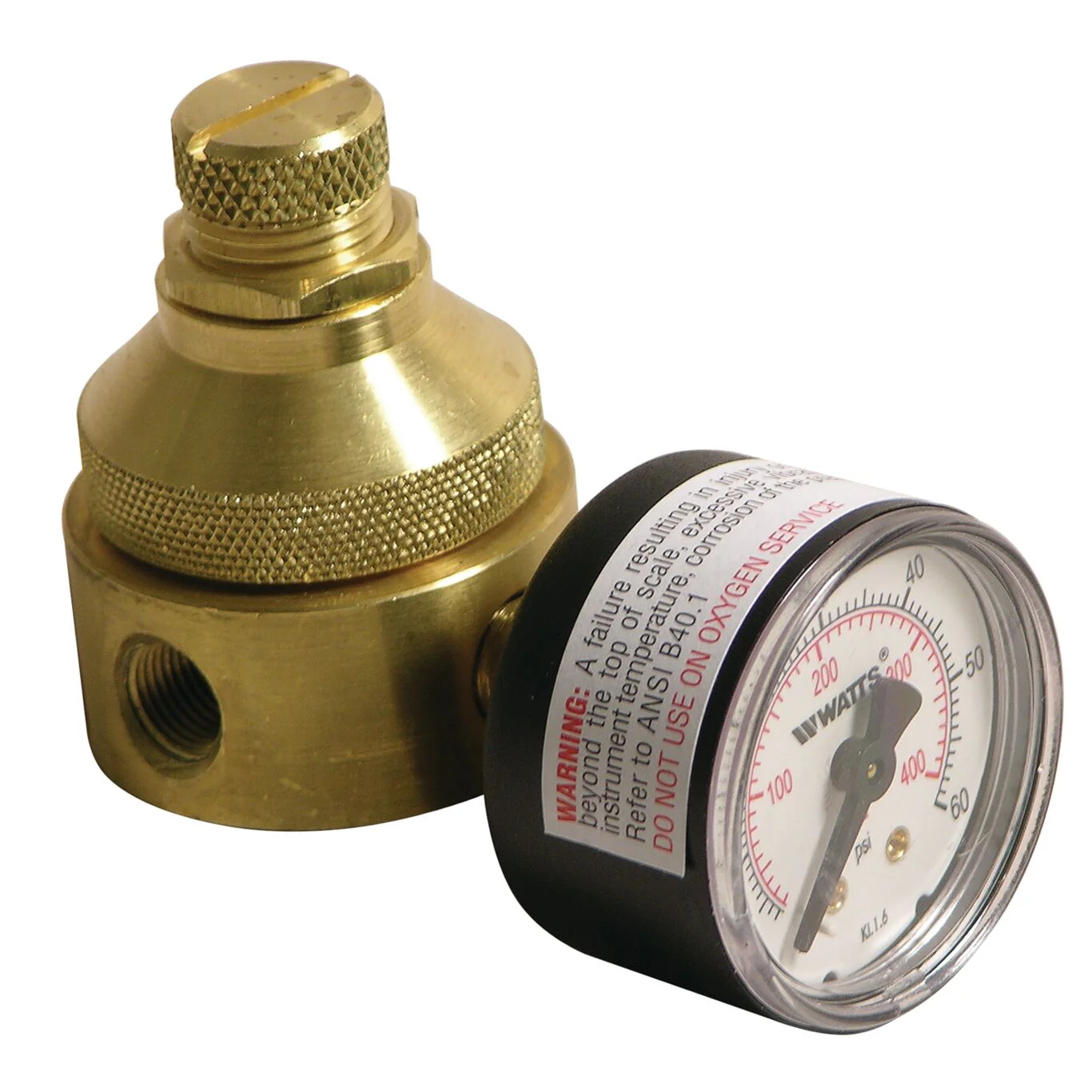

This 1/8 inch lead free mini water pressure regulator is designed to reduce incoming water pressure to protect plumbing system components and to reduce water consumption. It used in industrial process applications to regulate water pressure in systems where a small economical package is required. It has an oversized orifice that is ideal for use in miscellaneous plumbing applications and OEM equipment such as a travel trailer. It consists of a rugged lead free brass body, female NPT connections, gauge port with gauge, Buna-N seat and diaphragm, stainless steel stem and spring, and a heavy duty slotted and knurled adjusting screw. The reduced pressure range is 0 to 125 psi (0 to 8.6 bar)and is factory set at 40 psi (2.8 bar).

Features

• Lead free brass body
• Stainless steel stem and spring
• Oversized orifice
• Heavy duty slotted and knurled adjusting screw

Specifications
Adjustable Reduced Pressure Range	0 to 125
Adjustable Reduced Pressure Range-BAR	0 to 8.61
Body Material	Lead Free Brass
Brand	Watts
Corrosion Resistant Coating	No
Disc Material	Buna-N
EAN	098268429008
Gauge Option	Gauge Tapping
Inlet Connection Size	1/8 IN
Inlet Connection Type	Female Threaded
Inlet Thread Type	NPT
Lead Free	YES
Maximum Operating Temperature-Fahrenheit	140
Maximum Working Pressure-BAR	20.70
Maximum Working Pressure-PSI	300
Minimum Temperature - Celsius	0.50
Minimum Temperature-Fahrenheit	0
Outlet Connection Size	1/8 IN
Outlet Connection Type	Female Threaded
Outlet Thread Type	NPT
Part Number	0009843
Series	LF560
Standard Reduced Pressure Setting-BAR	5.60
Standard Reduced Pressure Setting-PSI	80
Strainer	No
Strainer Material	Does Not Apply To Product
Thermal Expansion Bypass	No
Trim Material	Does Not Apply To Product
Type	Kit
Valve Style	2-way

• Specification Sheet - LF560, LFH560

UPC - 098268429008
