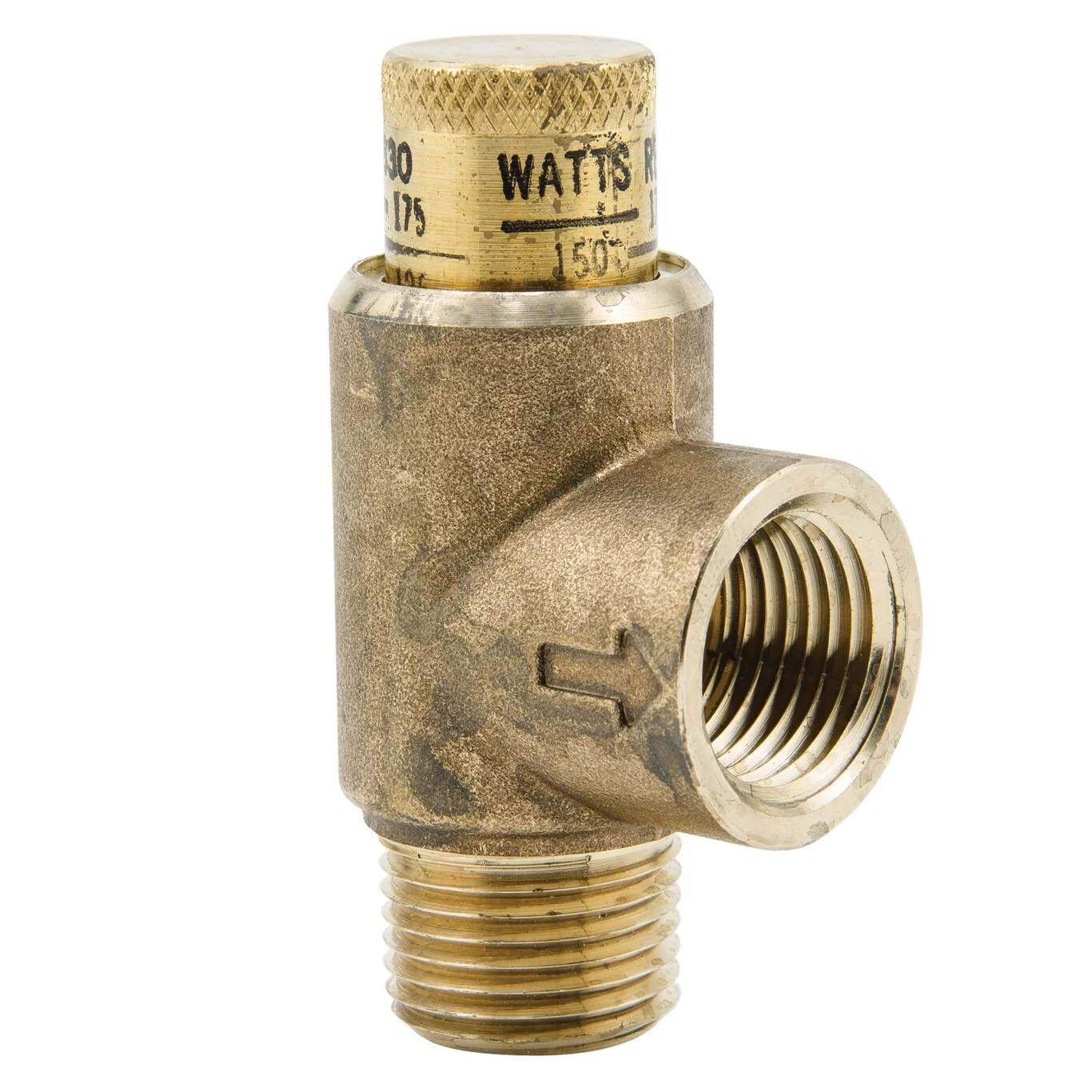

Watts LF530-C 1/2 - Part of the LF530C Series

This 1/2 inch lead free calibrated pressure relief valve is designed for use as protection against excessive pressure build-up in systems containing water, oil and air. It has a lead free brass body, 1/2 inch NPT male inlet and 1/2 inch NPT female (drain) outlet. This valve has an adjustable pressure of 50 to 175 psi (3.4 to 12.1 bar) and maximum working temperature of 180 degrees F.

Features

• Lead free brass body construction
• All stainless steel spring
• Adjustable range 50 to 175 psi
• Maximum temperature 180 degree F

Specifications
Body Material	Lead Free Brass
Brand	Watts
Buy American Act Compliant	YES
EAN	098268435191
Inlet Connection Size	1/2 IN
Inlet Connection Type	Male Threaded
Inlet Thread Type	NPT
Lead Free	YES
Maximum Working Pressure-PSI	300
Outlet Connection Size	1/2 IN
Outlet Connection Type	Female Threaded
Outlet Thread Type	NPT
Part Number	0556035
Pressure Range	50 to 175 PSI
Pressure Relief Setting-PSI	150
Series	LF530C

• Specification Sheet - LF53, LF530C

UPC - 098268435191
