Watts LF3L-150 3/4 - Part of the LF3L Series

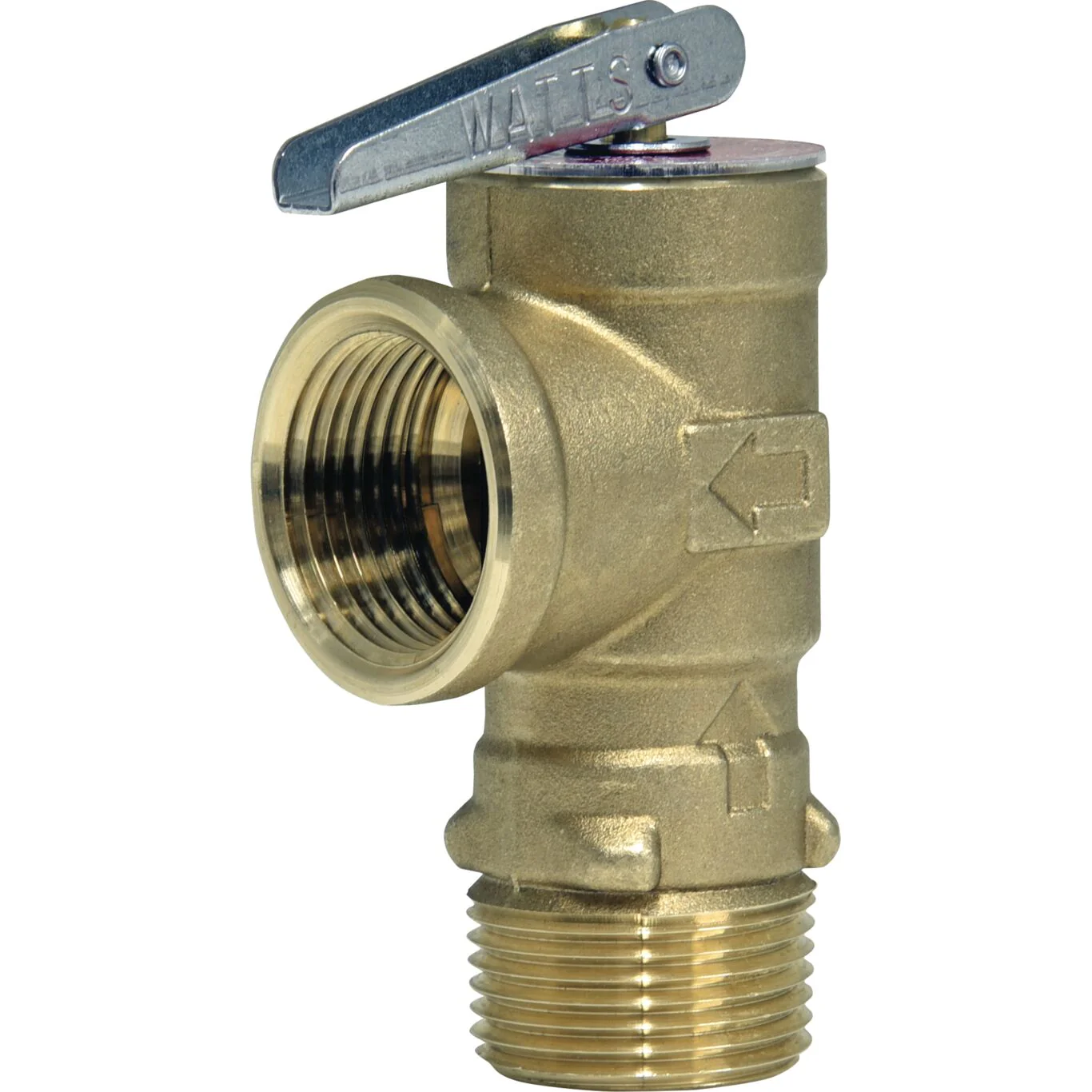

This 3/4 inch lead free pressure relief valve is used in residential applications to protect against excessive pressure on domestic storage tanks and tankless water heaters. It consists of a lead free copper alloy body with 3/4 inch NPT threaded male inlet and 3/4 inch NPT threaded female (drain) outlet, test lever, and stainless steel spring. It is ASME rated. The pressure relief is set at 150 psi (10.3 bar).

Features

• Lead free copper alloy body construction
• Test lever included
• Relieves excessive pressure on tankless water heaters
• ASME approved

Specifications
Body Material	Lead Free Copper Alloy
Brand	Watts
Buy American Act Compliant	YES
EAN	098268435184
Inlet Connection Size	3/4 IN
Inlet Connection Type	Male Threaded
Inlet Thread Type	NPT
Lead Free	YES
Maximum Working Pressure-PSI	150
Outlet Connection Size	3/4 IN
Outlet Connection Type	Female Threaded
Outlet Thread Type	NPT
Part Number	0556034
Pressure Range	75 to 150 PSI
Pressure Relief Setting-PSI	150
Series	LF3L

• Specification Sheet - LF3L, LF53L

UPC - 098268435184
