Watts LF301 2 - Part of the LF301 Series

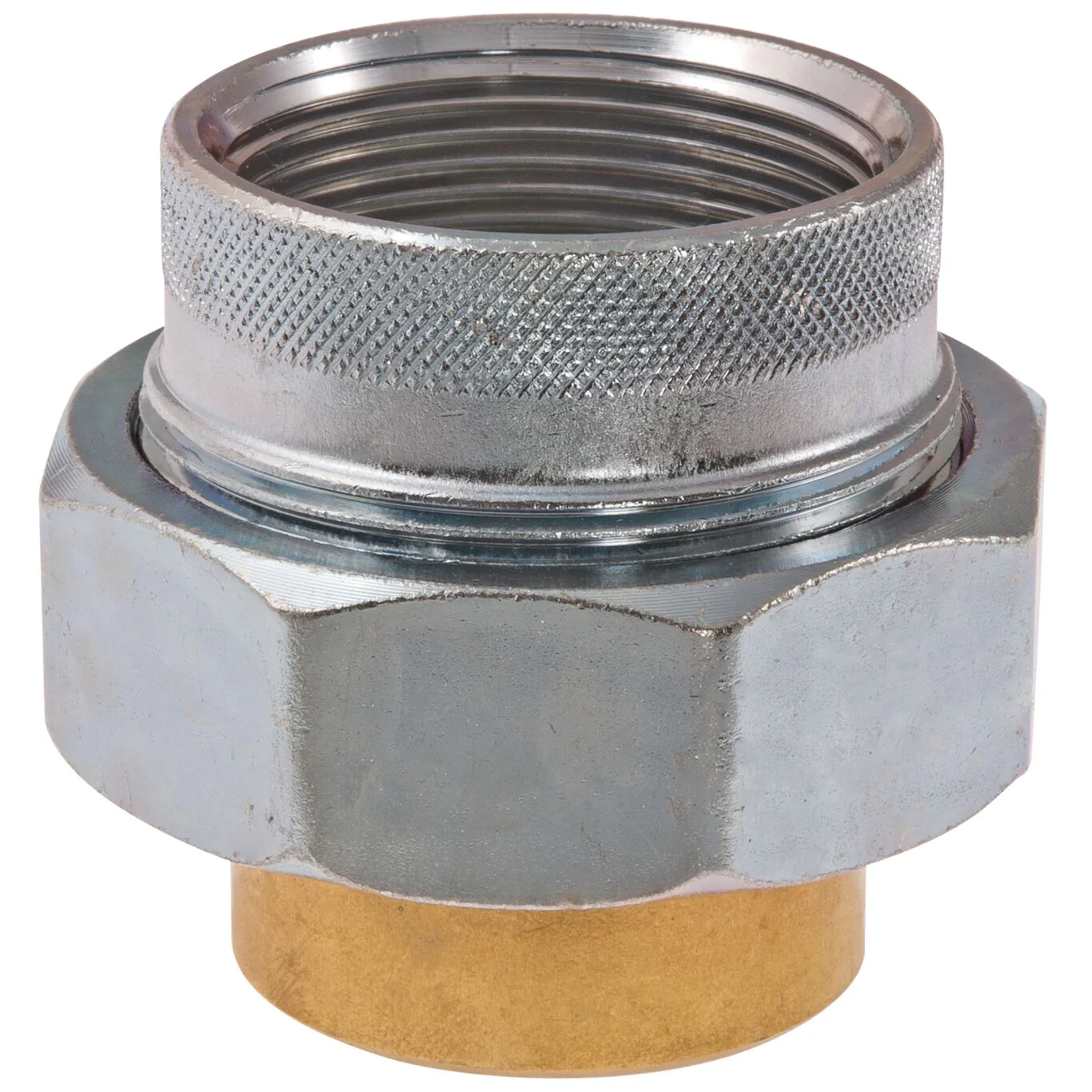

This 2 inch lead free dielectric union is used in commercial and residential applications to prevent accelerated corrosion and deterioration in the piping system due to galvanic and stray current. It is installed between pipes made from dissimilar metals and is used on applications such as hot water storage tanks, water and air conditioners, processing tanks, steam, gas, and water piping. It consists of a female iron pipe thread to solder connection, union nut, two tailpieces, and a Buna-N gasket that separates the tailpieces to prevent an electric current from occurring. The maximum temperature is rated up to 180 degrees F (82 degrees C) at 250 psi (17.2 bar).

Features

• Buna-N gasket
• Maximum pressure is 250 psi (17.2 bar)
• Maximum temperature 180 degrees F (82 degrees C)
• FIP thread to solder connections

Specifications
Adapter Material	Steel
Brand	Watts
Buy American Act Compliant	NO
Class Rating	Does Not Apply To Product
EAN	098268430509
Gasket Material	EPDM
Gasket Maximum Pressure	250 PSI
Gasket Maximum Pressure-BAR	17.20
Gasket Maximum Temperature	250 Degree F
Inlet Connection Size	2 IN
Inlet Connection Size-Metric	50 MM
Inlet Connection Type	Female Threaded
Inlet Material	Steel
Inlet Thread Type	IPS
Insulator Material	Plastic
Lead Free	YES
Maximum Working Pressure-PSI	250
Maximum Working Temperature-Fahrenheit	250
Nut Material	Steel
Outlet Connection Size	2 IN
Outlet Connection Type	Socket
Outlet Material	Lead Free Brass
Outlet Thread Type	Does Not Apply To Product
Part Number	0009895
Series	LF301

• Specification Sheet - LF301

UPC - 098268430509
