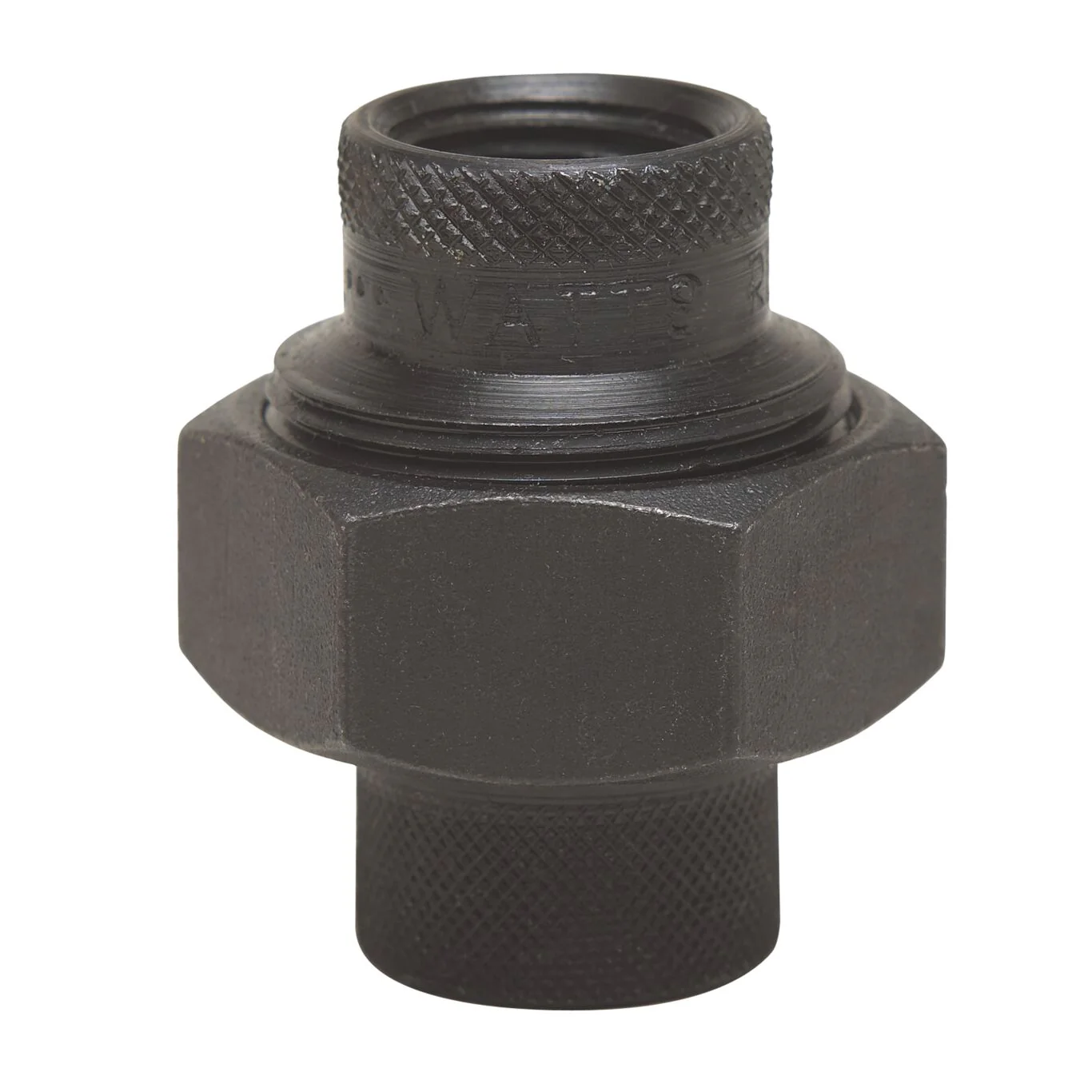

Watts LF3006 1 1/4 - Part of the LF3006 Series

This 1 1/4 inch lead free dielectric union is used in commercial and residential applications to prevent accelerated corrosion and deterioration in the piping system due to galvanic and stray current. It is installed between pipes made from dissimilar metals and is used on applications such as hot water storage tanks, water and air conditioners, processing tanks, steam, gas, and water piping. It consists of a female iron pipe thread to female iron pipe thread (black) connections, union nut, two tailpieces, and a Buna-N gasket that separates the tailpieces to prevent an electric current from occurring. The maximum temperature is rated up to 180 degrees F (82 degrees C) at 250 psi (17.2 bar).

Features

• Buna-N gasket
• Maximum pressure is 250 psi (17.2 bar)
• Maximum temperature 180 degrees F (82 degrees C)
• FIP thread to FIP thread (black) connections

Specifications
Adapter Material	Steel
Brand	Watts
Buy American Act Compliant	NO
Class Rating	Does Not Apply To Product
EAN	098268786279
Gasket Material	Buna-N
Gasket Maximum Pressure	250 PSI
Gasket Maximum Pressure-BAR	17.20
Gasket Maximum Temperature	180 Degree F
Inlet Connection Size	1 1/4 IN
Inlet Connection Size-Metric	32 MM
Inlet Connection Type	Female Threaded
Inlet Material	Steel
Inlet Thread Type	NPT
Insulator Material	Polysulfone
Lead Free	YES
Maximum Working Pressure-PSI	250
Maximum Working Temperature-Fahrenheit	180
Nut Material	Steel
Outlet Connection Size	1 1/4 IN
Outlet Connection Type	Female Threaded
Outlet Material	Steel
Outlet Thread Type	NPT
Part Number	0821789
Series	LF3006
Type	Kit

• Specification Sheet - LF3006

UPC - 098268786279
