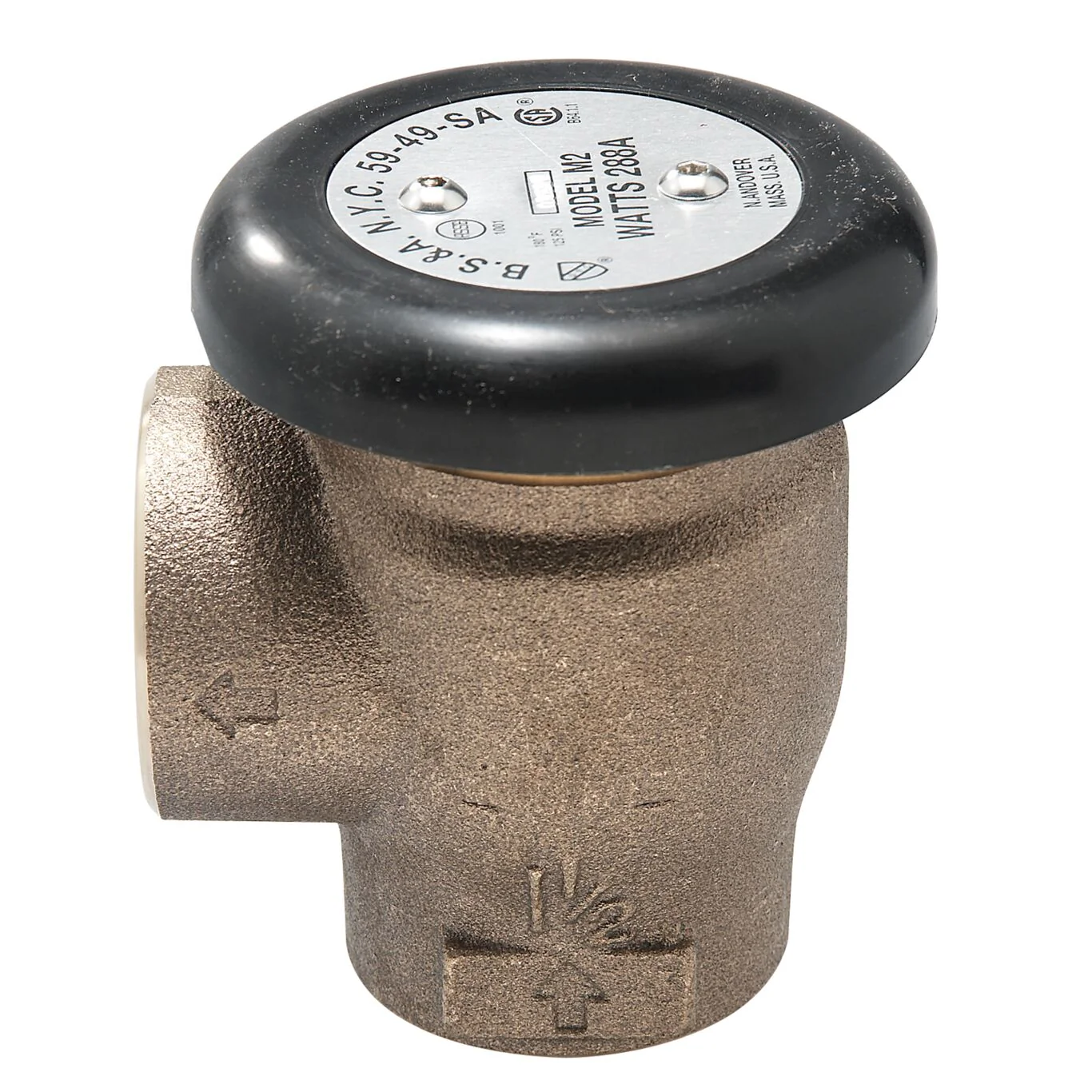

Watts LF288AM2 2 1/2 - Part of the LF288A Series

This 2 1/2 inch lead free anti-siphon vacuum breaker backflow preventer for hot or cold water prevents the reverse flow of polluted water from entering into the potable water supply due to backsiphonage. It consists of lead free construction, chemical resistant silicone seat disc, chrome hood, and an atmospheric vent to prevent spilling. It has a full size orifice to assure pipe size capacity and maximum flow. It is ideal for low flow, non-continuous hot or cold water health hazard applications such as on laboratory equipment.

Features

• Lead free construction
• Full size orifice for maximum flow
• Female NPT inlet and outlet
• Hot or cold water

Specifications
Backflow Preventer Type	Vacuum Breaker
Body Finish	Brass
Body Material	Lead Free Brass
Body Pattern	Does Not Apply To Product
Brand	Watts
Buy American Act Compliant	YES
Bypass	No
Cap And Tether	No
Disc Material	Silicone
EAN	098268434309
Elbow Fitting	No
Hazard Protection Level	Health Hazard
Hot And Harsh Water	No
Hydrant Connection	No
Inlet Connection Size	2 1/2 IN
Inlet Connection Size-Metric	65 MM
Inlet Connection Type	Female Threaded
Inlet Shutoff Valve Type	No Shutoff Valve
Inlet Thread Type	NPT
Lead Free	YES
Maximum Temperature-Fahrenheit	180
Maximum Working Pressure-BAR	8.60
Maximum Working Pressure-PSI	125
Meter Type	No Meter
Minimum Temperature - Celsius	0.50
Minimum Temperature-Fahrenheit	33
Outlet Connection Size	2 1/2 IN
Outlet Connection Type	Female Threaded
Outlet Shutoff Valve Type	No Shutoff Valve
Outlet Thread Type	NPT
Part Number	0792044
Polymer Coating	No
Pressure Operation	Non Continuous
Protection Type	Backsiphonage
Seat Material	Silicone
Series	LF288A
Strainer	No
Technologies	Does Not Apply To Product

• Specification Sheet - LF288A

UPC - 098268434309
