Watts LF263A-G 1-25 1/2 - Part of the LF263A Series

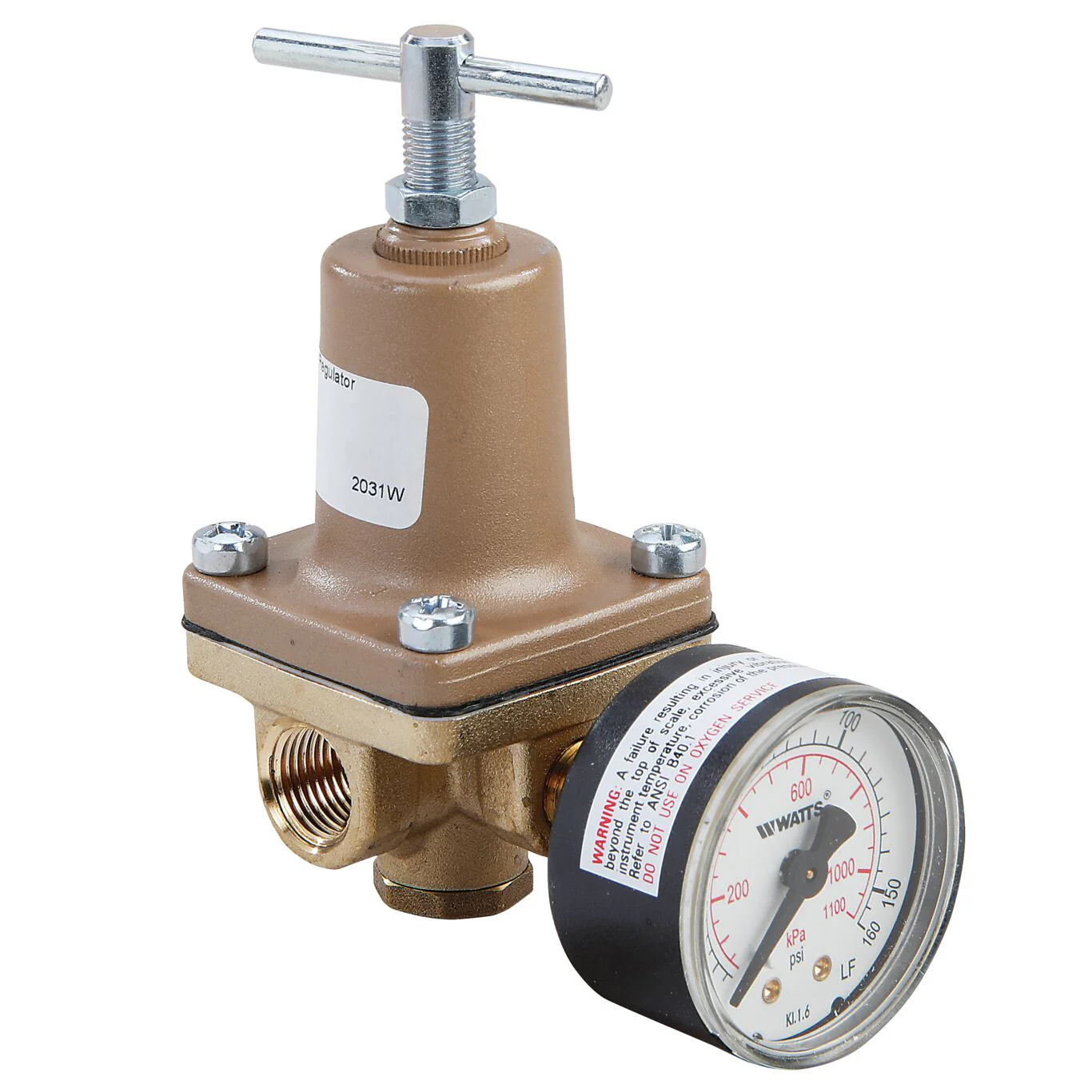

This 1/2 inch lead free brass small water pressure regulator is used in small general purpose applications to regulate water pressure in piping systems using water and No. 2 fuel oil. It has an oversized orifice and is ideally used on beverage dispensing and paint spraying equipment, ice cube machines, humidifiers, drinking fountains, and other small process applications. It consists of a brass body with an adjusting tee handle, NPT threaded female connections, three way low-water pressure gauge port with gauge, aluminum spring cage, Buna-N stainless steel disc, and a reinforced Buna-N diaphragm. The temperature range is 0 to 140 degrees F (-18 to 60 degrees C). The reduced water pressure range is 1 to 25 psi (0.1 to 1.7 bar) and the water pressure is set at 10 psi (0.7 bar).

Features

• Lead free brass body
• 1/4 IN (8mm) low pressure gauge port with gauge
• Oversized orifice
• Tee handle adjustment

Specifications
Adjustable Reduced Pressure Range	1 to 25
Body Material	Lead Free Brass
Brand	Watts
Corrosion Resistant Coating	No
EAN	098268860986
Gauge Option	Gauge Tapping
Inlet Connection Size	1/2 IN
Inlet Connection Type	Female Threaded
Inlet Thread Type	FPT
Lead Free	YES
Maximum Operating Temperature-Fahrenheit	140
Maximum Working Pressure-BAR	20.70
Maximum Working Pressure-PSI	300
Minimum Temperature - Celsius	-18.00
Minimum Temperature-Fahrenheit	0
Outlet Connection Size	1/2 IN
Outlet Connection Type	Female Threaded
Outlet Thread Type	FPT
Part Number	0125347
Series	LF263A
Standard Reduced Pressure Setting-BAR	0.70
Standard Reduced Pressure Setting-PSI	10
Strainer	No
Strainer Material	Does Not Apply To Product
Thermal Expansion Bypass	No
Valve Style	3-way

• Specification Sheet - LF26A, LF263A

UPC - 098268860986
