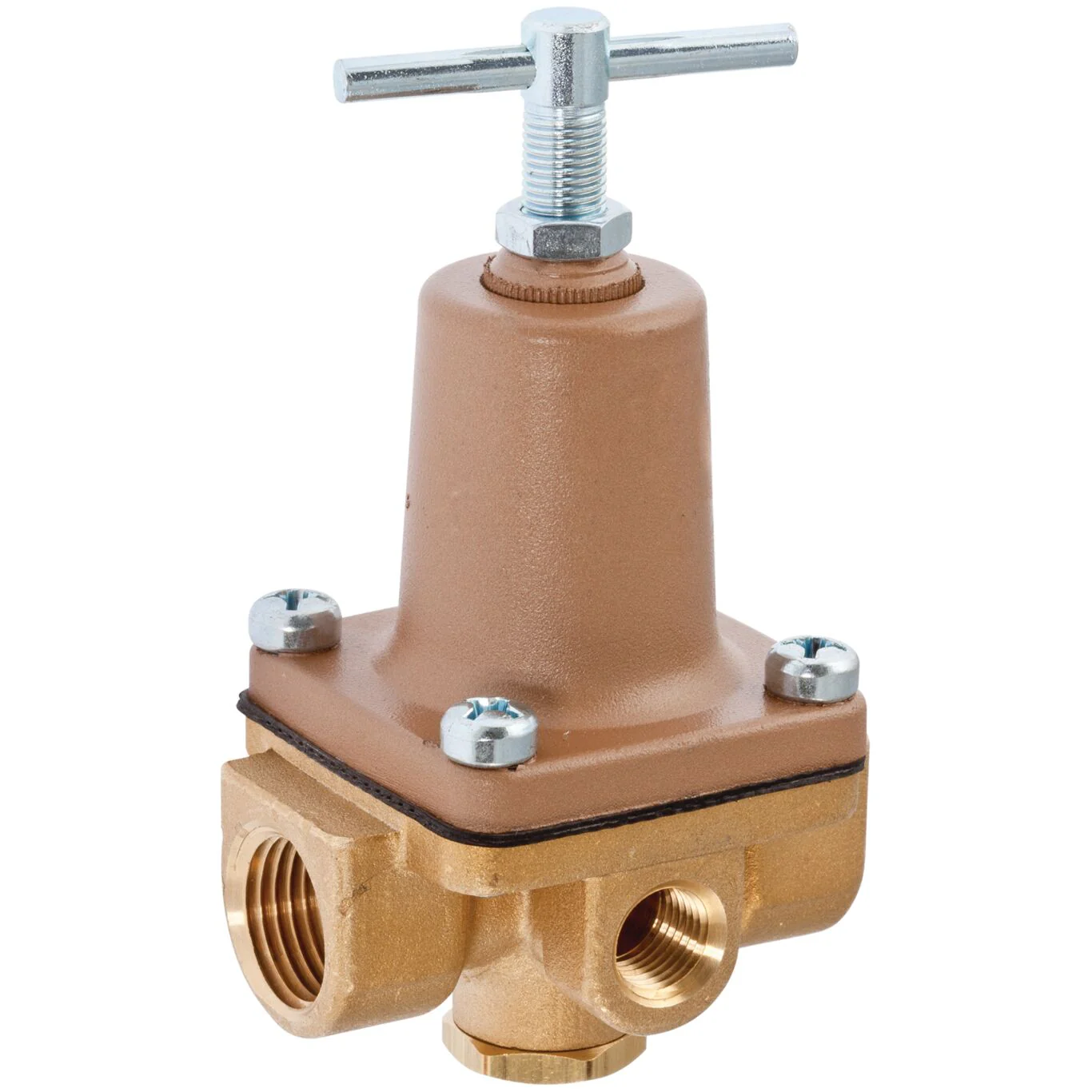

Watts LF263A 10-125 3/8 - Part of the LF263A Series

This 3/8 IN lead free small water pressure regulator is used in small general purpose applications to regulate water pressure in piping systems using water and No. 2 fuel oil. It has an oversized orifice and is ideally used on beverage dispensing, ice cube machines, paint spraying equipment, drinking fountains, humidifiers, and other small process applications. It consists of a lead free brass body, adjusting tee handle, NPT threaded female connections, three-way low water pressure gauge port, Buna-N stainless steel disc, aluminum spring cage, and a reinforced Buna-N diaphragm. The reduced water pressure range is 10 to 125 psi (0.7 to 8.6 bar). It is factory set at 25 psi (1.7 bar).

Features

• Lead free brass body
• Stainless steel stem and spring
• Oversized orifice
• Tee handle adjustment
• NPT threaded female inlet and outlet connections
• Temperature range is 0 to 140 degrees F (-18 to 60 degrees C)
• Maximum working pressure is 300 psi (21 bar)

Specifications
Adjustable Reduced Pressure Range	10 to 125
Adjustable Reduced Pressure Range-BAR	0.7 to 8.6
Body Material	Brass
Brand	Watts
Corrosion Resistant Coating	No
Disc Material	Buna-N
EAN	098268428858
Gauge Option	No Gauge
Inlet Connection Size	3/8 IN
Inlet Connection Type	Female Threaded
Inlet Thread Type	NPT
Lead Free	YES
Maximum Operating Temperature-Fahrenheit	140
Maximum Working Pressure-BAR	20.70
Maximum Working Pressure-PSI	300
Minimum Temperature - Celsius	-18.00
Minimum Temperature-Fahrenheit	0
Outlet Connection Size	3/8 IN
Outlet Connection Type	Female Threaded
Outlet Thread Type	NPT
Part Number	0009828
Series	LF263A
Standard Reduced Pressure Setting-BAR	1.70
Standard Reduced Pressure Setting-PSI	25
Strainer	No
Strainer Material	Does Not Apply To Product
Thermal Expansion Bypass	No
Valve Style	3-way

• Specification Sheet - LF26A, LF263A

UPC - 098268428858
