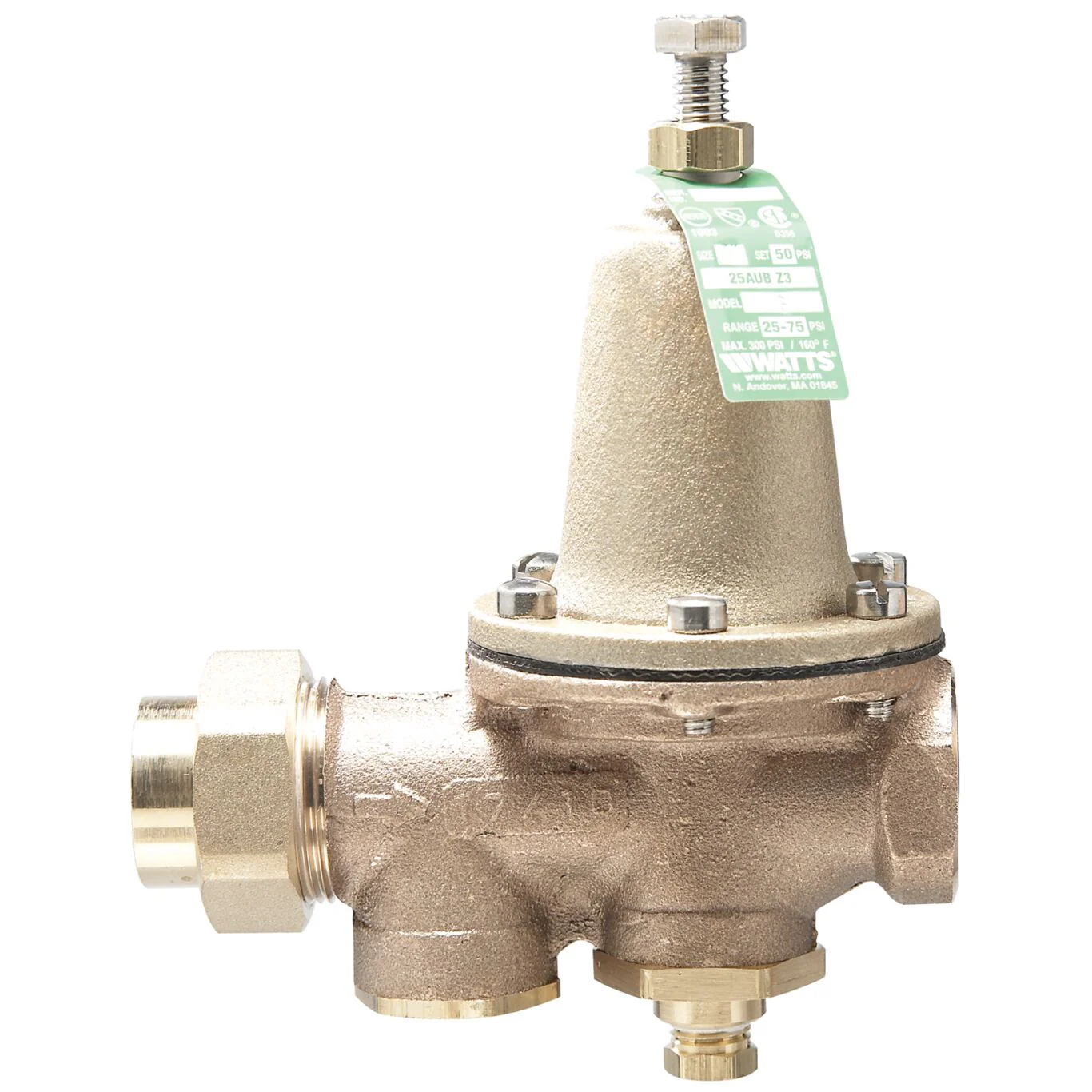

Watts LF25AUB-G-HP-Z3 1/2 - Part of the LF25AUB-Z3 Series

This 1/2 inch lead free brass water pressure reducing valve is designed to reduce incoming water pressure to protect plumbing systems and reduce water consumption for commercial, industrial, and residential applications. The easy maintenance assembly consists of a replaceable seat module, NPT threaded female union inlet by NPT female outlet connections, stainless steel strainer, a thermal expansion bypass, and a gauge port tapping furnished with a pipe plug. The temperature range is 33 to 180 degrees F (0.5 to 82 degrees C). Suitable for up to 300 psi (20.7 bar), the pressure range can be adjusted from 75 to 125 psi (5.2 to 8.6 bar).

Features

• Sealed spring cage with stainless steel cage screws
• Integral stainless steel strainer removable for cleaning
• Replaceable seat
• Gauge port tapping allows downstream pressure measurements

Specifications
Adjustable Reduced Pressure Range	75 to 125
Adjustable Reduced Pressure Range-BAR	5.2 to 8.6
Body Material	Lead Free Copper Silicon Alloy
Brand	Watts
Corrosion Resistant Coating	No
Disc Material	EPDM
EAN	098268329360
Gauge Option	Gauge Tapping
High Pressure Reduced Pressure Range	75 to 125 PSI
High Pressure Reduced Pressure Setting	90 PSI
Inlet Connection Size	1/2 IN
Inlet Connection Type	Union Joint
Inlet Thread Type	NPT
Lead Free	YES
Maximum Operating Temperature-Fahrenheit	180
Maximum Working Pressure-BAR	20.70
Maximum Working Pressure-PSI	300
Minimum Temperature - Celsius	0.50
Minimum Temperature-Fahrenheit	33
Outlet Connection Size	1/2 IN
Outlet Connection Type	Female Threaded
Outlet Thread Type	NPT
Part Number	0009232
Series	LF25AUB-Z3
Standard Reduced Pressure Setting-BAR	3.40
Standard Reduced Pressure Setting-PSI	50
Strainer	Yes
Strainer Material	Stainless Steel
Thermal Expansion Bypass	Yes
Trim Material	Does Not Apply To Product
Valve Style	Standard

• Specification Sheet - LF25AUB-Z3
• Specification Sheet - LF25AUB-Z3 (French)
• Specification Sheet - LF25AUB-Z3 (Spanish)

UPC - 098268329360
