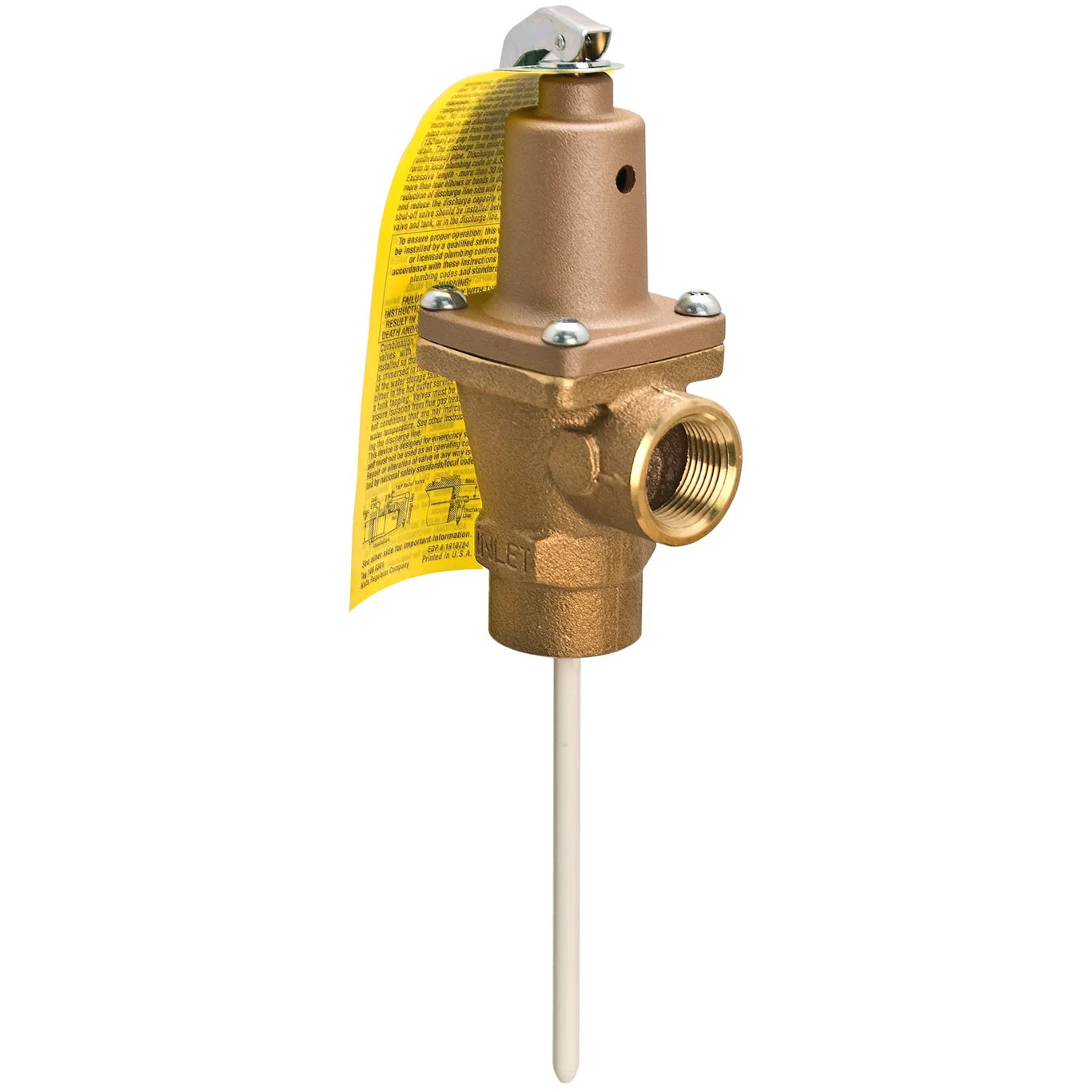

Watts LF140X6 150-210 3/4 - Part of the LF140 Series

This 3/4 inch lead free automatic reseating temperature and pressure relief valve with a 6 inch thermostat is installed directly in tank tappings and is used in commercial applications to provide automatic temperature and pressure protection for hot water supply tanks and hot water heaters. It features a lead free construction brass body with NPT male inlet and NPT female outlet connections, thermo-bonded coated thermostat, tamper resistant bonnet screws, automatic reseating feature, and test lever. The temperature relief is 210 degrees and the pressure relief is 150 psi.

Features

• Lead free brass body construction
• Tamper resistant bonnet screws
• 6 Inch thermostat length
• Non-mechanical seat to disc alignment

Specifications
Body Material	Lead Free Brass
Brand	Watts
Buy American Act Compliant	YES
EAN	098268585346
Inlet Connection Size	3/4 IN
Inlet Connection Type	Female Threaded
Inlet Thread Type	FPT
Lead Free	YES
Maximum Temperature-Fahrenheit	210
Outlet Connection Size	3/4 IN
Outlet Connection Type	Female Threaded
Outlet Thread Type	FPT
Part Number	0121453
Pressure Range	75 to 150 PSI
Pressure Relief Setting-PSI	150
Protection Type	Temperature And Pressure
Series	LF140
Temperature Relief-Fahrenheit	210
Thermostat Material	Stainless Steel

• Specification Sheet - Flood Sensor for Relief Valve Discharge Line
• Specification Sheet - Flood Sensor for Relief Valve Discharge Line (French)
• Specification Sheet - Flood Sensor for Relief Valve Discharge Line (Spanish)
• Specification Sheet - LF40, LF140, LFN240, LF340
• Specification Sheet - LF40, LF140, LFN240, LF340 (French)
• Specification Sheet - LF40, LF140, LFN240, LF340 (Spanish)
• Specification Sheet - Relief Valve Flood Sensor Retrofit Connection Kit
• Specification Sheet - Relief Valve Flood Sensor Retrofit Connection Kit (French)
• Specification Sheet - Relief Valve Flood Sensor Retrofit Connection Kit (Spanish)

UPC - 098268585346
