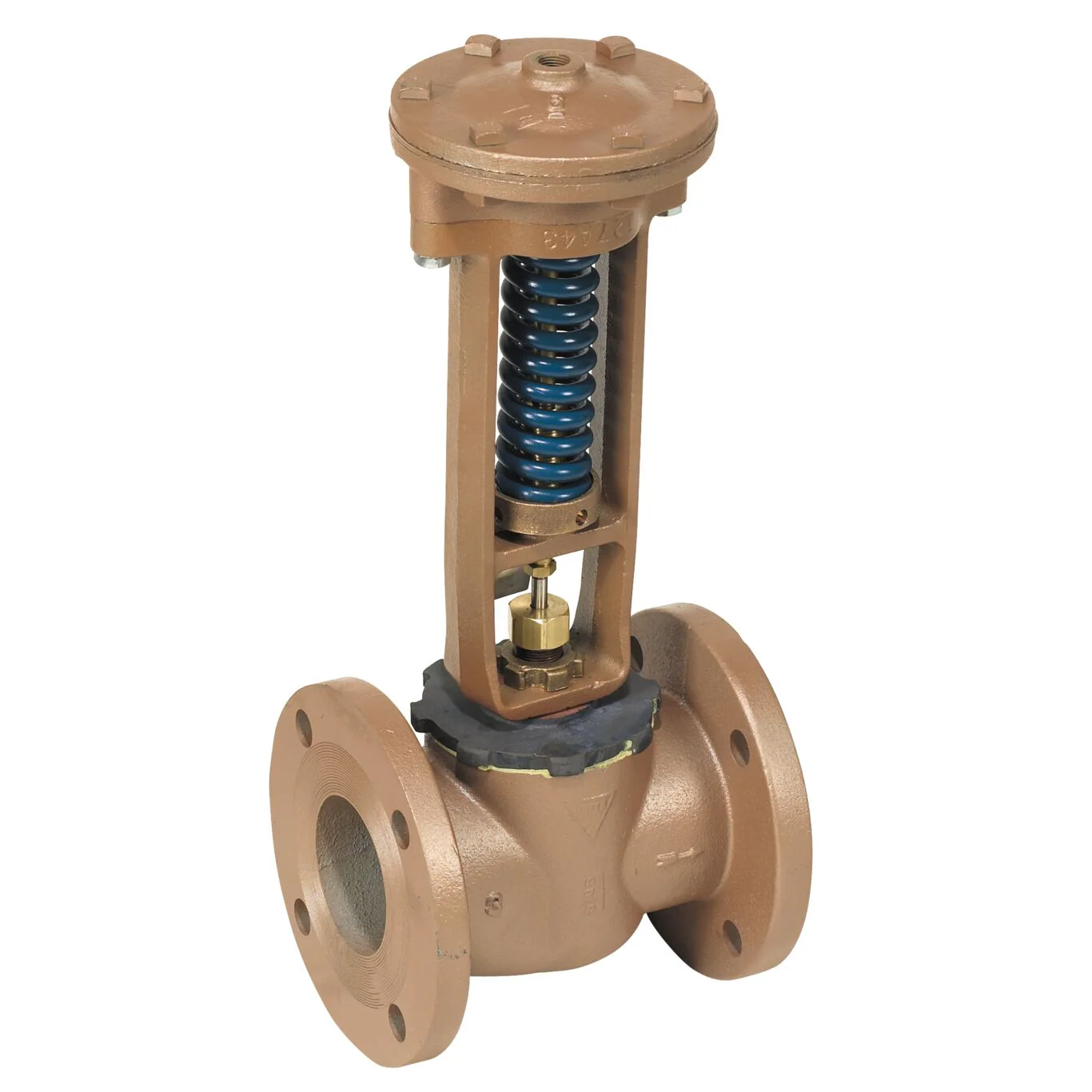

Watts LF127W-208 3 - Part of the LF127W Series

This 3 inch lead free high capacity water pressure reducing valve is used in commercial and industrial applications to reduce incoming water pressure for protection of plumbing system components and reduce water consumption. It features a triple coated corrosion preventative iron body, NPT threaded inlet and outlet connections, replaceable disc, interchangeable 8 inch diaphragm chamber, #2 spring, replaceable stainless steel seat, and stainless steel stem. The maximum working pressure is 175 psi (12.06 bar) and the adjustable reduced pressure range is 25 to 100 psi (1.7 to 7.0 bar). The temperature range is 33 to 160 degrees F (0.5 to 71 degrees C).

Features

• Iron body triple coated with special corrosion preventative materials that is superior to hot dip galvanizing
• Remote control type regulator
• Replaceable stainless steel seat
• High temperature resisting 8 IN diaphragm

Specifications
Brand	Watts
Buy American Act Compliant	YES
EAN	098268860993
Lead Free	YES
Part Number	0125348
Series	LF127W

UPC - 098268860993
