Watts LF10L-2 75-210 3/4 - Part of the LF10L Series

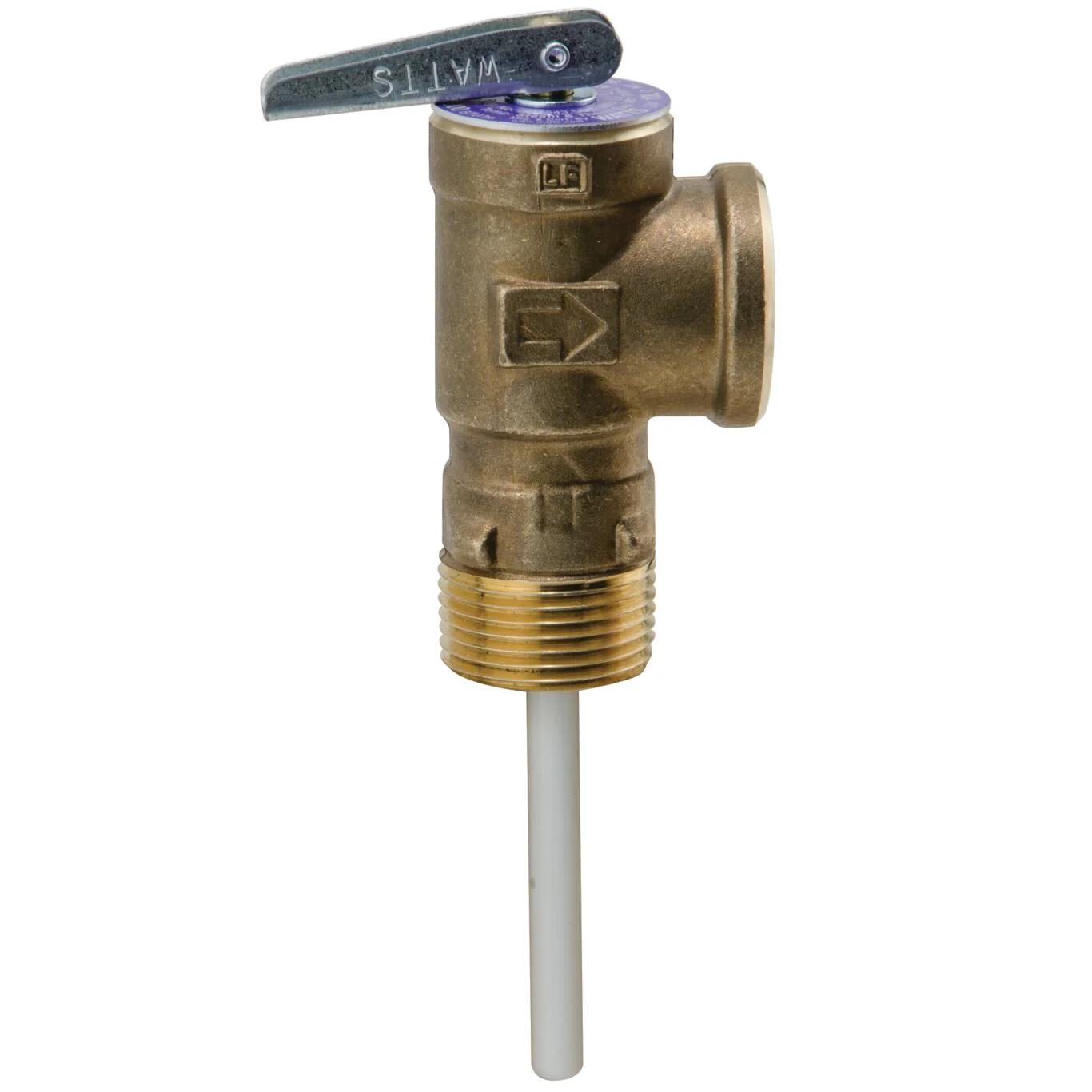

This 3/4 inch lead free temperature and pressure relief valve is designed to provide automatic temperature and pressure protection to hot water supply tanks and hot water heaters up to 80,000 BTU per hour. This two in one relief valve provides a proven and cost effective means to protect against excessive temperature and pressure emergency conditions. It features a lead free copper alloy body with NPT male inlet and NPT female outlet connections, thermo-bonded coating thermostat and test lever. The temperature relief is 210 degrees (99 degrees C) and the pressure relief is set at 75 psi (5.2 bar).

Features

• Lead free copper alloy body construction
• Stainless steel spring
• Protects against excessive temperature and pressure during emergency conditions
• ASME rated and CSA listed

Specifications
Body Material	Lead Free Copper Alloy
Brand	Watts
EAN	098268583076
Inlet Connection Size	3/4 IN
Inlet Connection Type	Male Threaded
Inlet Thread Type	NPT
Lead Free	YES
Maximum Temperature-Fahrenheit	210
Outlet Connection Size	3/4 IN
Outlet Connection Type	Female Threaded
Outlet Thread Type	FPT
Part Number	0121335
Pressure Range	75 to 150 PSI
Pressure Relief Setting-PSI	75
Protection Type	Temperature And Pressure
Series	LF10L
Shank Length	1 3/16 IN
Temperature Relief-Fahrenheit	210

• Specification Sheet - LF1L, LF1XL, LF10L, LF100XL

UPC - 098268583076
