Watts LF100XL 175-210 3/4 - Part of the LF100XL Series

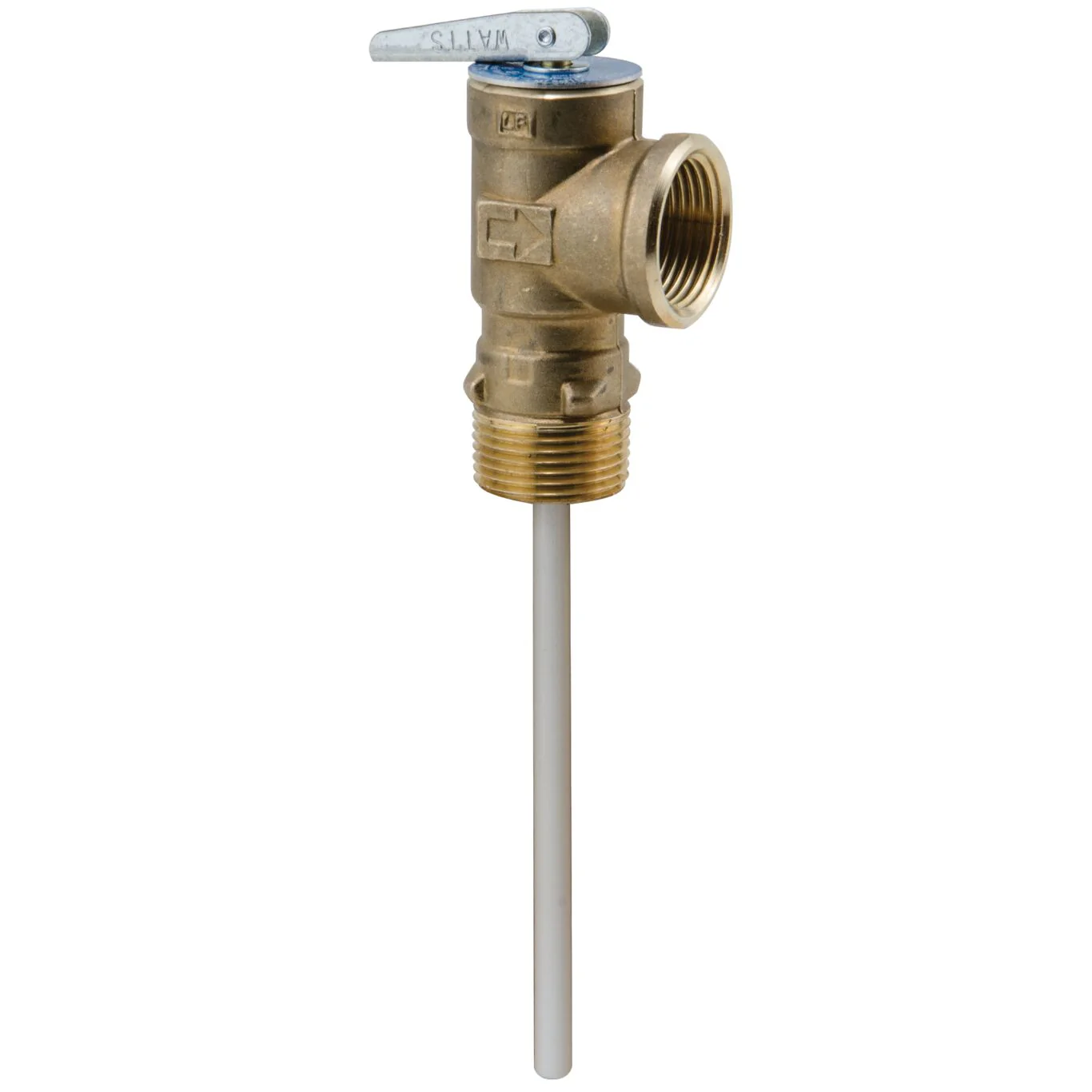

This 3/4 inch lead free temperature and pressure relief valve is designed to provide automatic temperature and pressure protection to hot water supply tanks and hot water heaters up to 105,000 BTU/hr. This two-in-one relief valve provides a proven and cost effective means to protect against excessive temperature and pressure emergency conditions. It features a lead free copper alloy body with NPT male inlet and NPT female outlet connections, a unique thermostat with special thermo-bonded coating with 4 inch extension, and test lever. The temperature relief is 210 degrees F (99 degrees C) and the pressure relief is set at 175 psi (12.07 bar).

Features

• Lead free copper alloy body construction
• Unique thermostat with special thermo-bonded coating
• Protects against excessive temperature and pressure during emergency conditions
• ASME rated and CSA listed

Specifications
Body Material	Lead Free Copper Silicon Alloy
Brand	Watts
Buy American Act Compliant	YES
EAN	098268583175
GPM-When Relieved	Does Not Apply to Product
Inlet Connection Size	3/4 IN
Inlet Connection Type	Male Threaded
Inlet Thread Type	NPT
Lead Free	YES
Maximum Temperature-Fahrenheit	210
Maximum Working Pressure-PSI	131
Outlet Connection Size	3/4 IN
Outlet Connection Type	Female Threaded
Outlet Thread Type	NPT
Part Number	0121344
Pressure Range	Does Not Apply To Product
Pressure Relief Setting-PSI	175
Protection Type	Temperature And Pressure
Series	LF100XL
Shank Length	1 1/8 IN
Temperature Relief-Fahrenheit	210
Thermostat Material	Copper
Thermostat Probe Length	4 IN

• Specification Sheet - LF1L, LF1XL, LF10L, LF100XL

UPC - 098268583175
