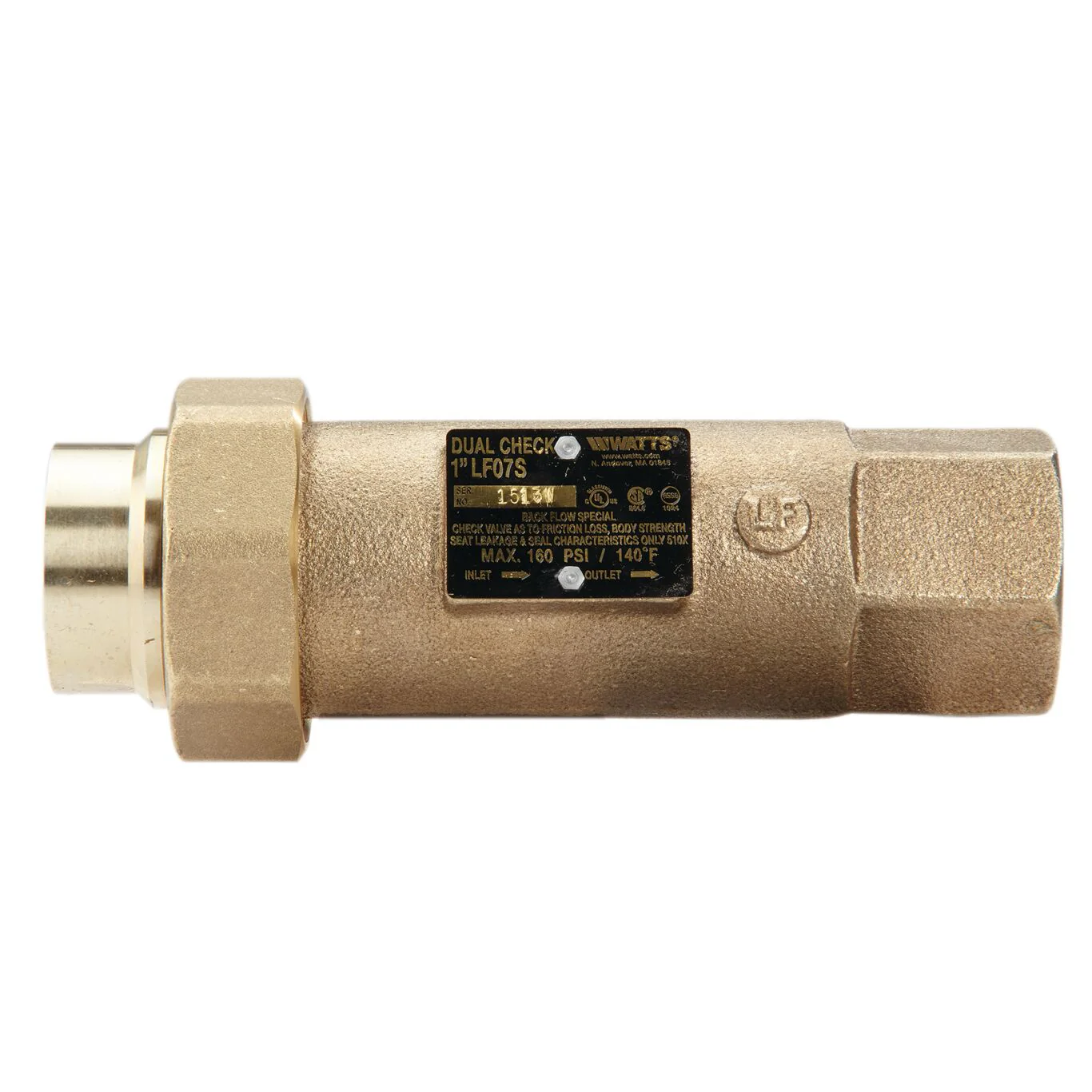

Watts LF07S-U2-3 1 1/4 - Part of the LF07S Series

This 1 1/4 IN lead free dual check valve backflow preventer helps prevent the reverse flow of polluted water from entering into the potable water supply. It consists of a bronze body construction with dual check valve backflow preventers, silicone seat discs, and identification tag. The valve offers low pressure drop, easy maintenance and service, and is designed for non-health hazard systems at the water meter or service entrance. Check with local inspection authorities for installation requirements.

Features

• Lead free construction
• Low pressure drop
• Install horizontally or vertically
• Easy to maintain and service

Specifications
Backflow Preventer Type	Dual Check
Body Finish	Bronze
Body Material	Lead Free Bronze
Body Pattern	Inline
Brand	Watts
Bypass	No
Cap And Tether	No
Disc Material	Silicone
EAN	098268638691
Elbow Fitting	No
Hazard Protection Level	Non Health Hazard
Hot And Harsh Water	No
Hydrant Connection	No
Inlet Connection Size	1 1/4 IN
Inlet Connection Size-Metric	32 MM
Inlet Connection Type	Female Threaded
Inlet Shutoff Valve Type	No Shutoff Valve
Inlet Thread Type	NPT
Lead Free	YES
Maximum Temperature-Fahrenheit	140
Maximum Working Pressure-BAR	11.03
Maximum Working Pressure-PSI	160
Meter Type	No Meter
Minimum Temperature - Celsius	0.50
Minimum Temperature-Fahrenheit	33
Outlet Connection Size	1 1/4 IN
Outlet Connection Type	Female Threaded
Outlet Shutoff Valve Type	No Shutoff Valve
Outlet Thread Type	NPT
Part Number	0122592
Polymer Coating	No
Pressure Operation	Continuous
Protection Type	Backsiphonage
Seat Material	Silicone
Series	LF07S
Strainer	No

• Specification Sheet - LF07S

UPC - 098268638691
