Watts IPF-PRESS-M1 1 1/4 - Part of the IPF Series

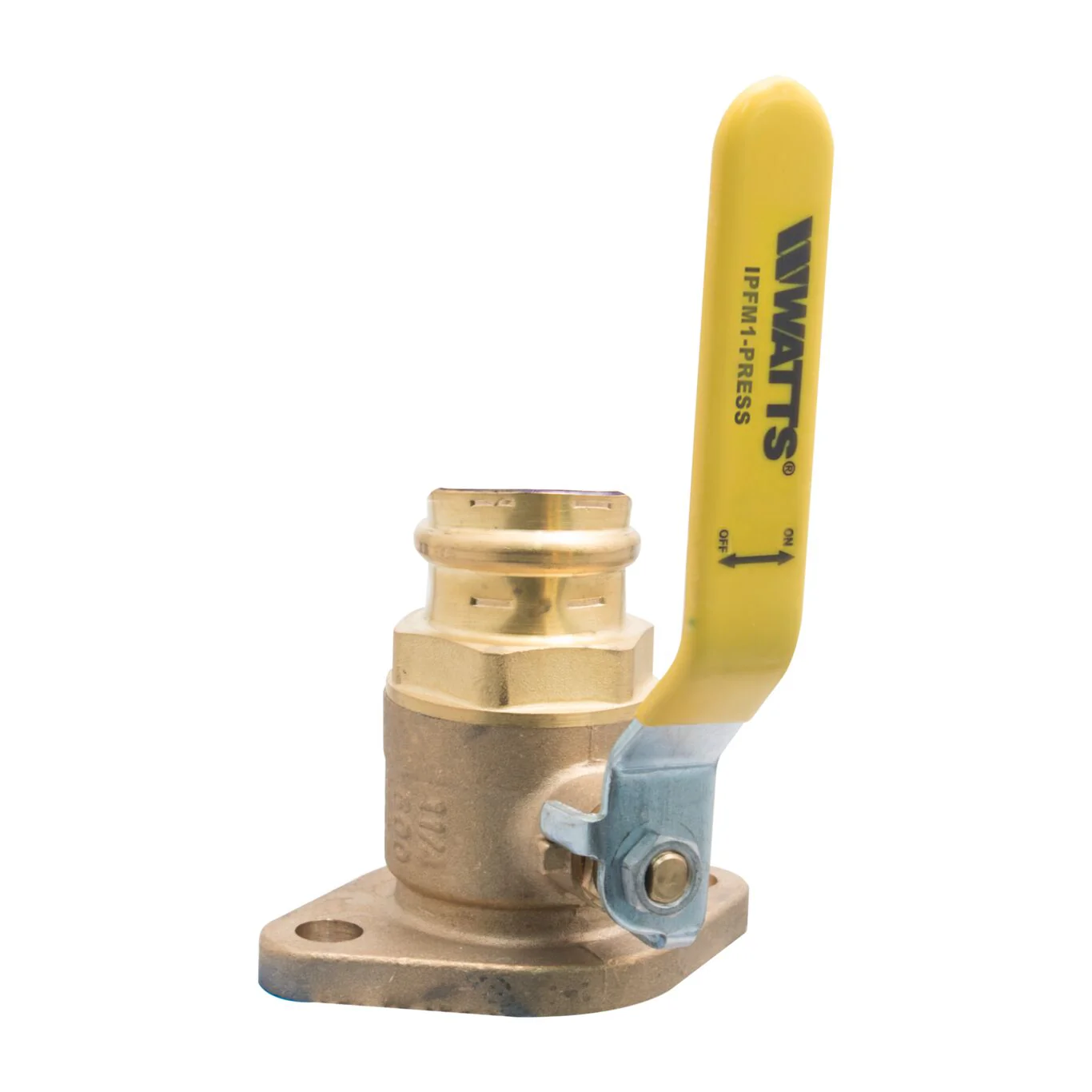

This 1 1/4 inch isolation pump flange is designed to isolate circulator pumps to facilitate circulator pump replacement or repairs. It features a brass body and flange with bottom loaded blowout proof stem, Buna-N stem O-Ring seal, virgin PTFE seat, integral press fitting end connection, and optional T-handle included.

Features

• Brass body and flange
• Buna-N stem O-ring seal
• Press end connection
• Virgin PTFE seats

Specifications
Actuation	No
Assembled Dry	Yes
Balance Stop Plate	No
Ball Material	Chrome Plated Brass
Body Finish	Brass
Body Material	Brass
Brand	Watts
Buy American Act Compliant	NO
Class Rating	Does Not Apply To Product
Control Type	Lever Handle
CV Rating	Does Not Apply To Product
EAN	098268141184
Electrical Rating	Does Not Apply To Product
Inlet Connection Size	1 1/4 IN
Inlet Connection Size-Metric	Does Not Apply To Product
Inlet Connection Type	Press
Inlet Thread Type	Does Not Apply To Product
Lead Free	Not In Scope
Maximum Temperature-Fahrenheit	406
Minimum Temperature - Celsius	38.00
Minimum Temperature-Fahrenheit	100
Operating Torque	Does Not Apply To Product
Outlet Connection Size	1 1/4 IN
Outlet Connection Type	Press
Outlet Thread Type	Does Not Apply To Product
Part Number	0068089
Port Type	Does Not Apply To Product
Seat Material	Virgin PTFE
Series	IPF
Stem Packing Material	Virgin PTFE
Stem Shaft Material	Brass
Stem Type	Bottom Loaded Blowout Proof
Thrust Washer Material	Does Not Apply To Product
Valve Style	2-piece
WOG Rating	600 PSI

• Specification Sheet - IPF

UPC - 098268141184
