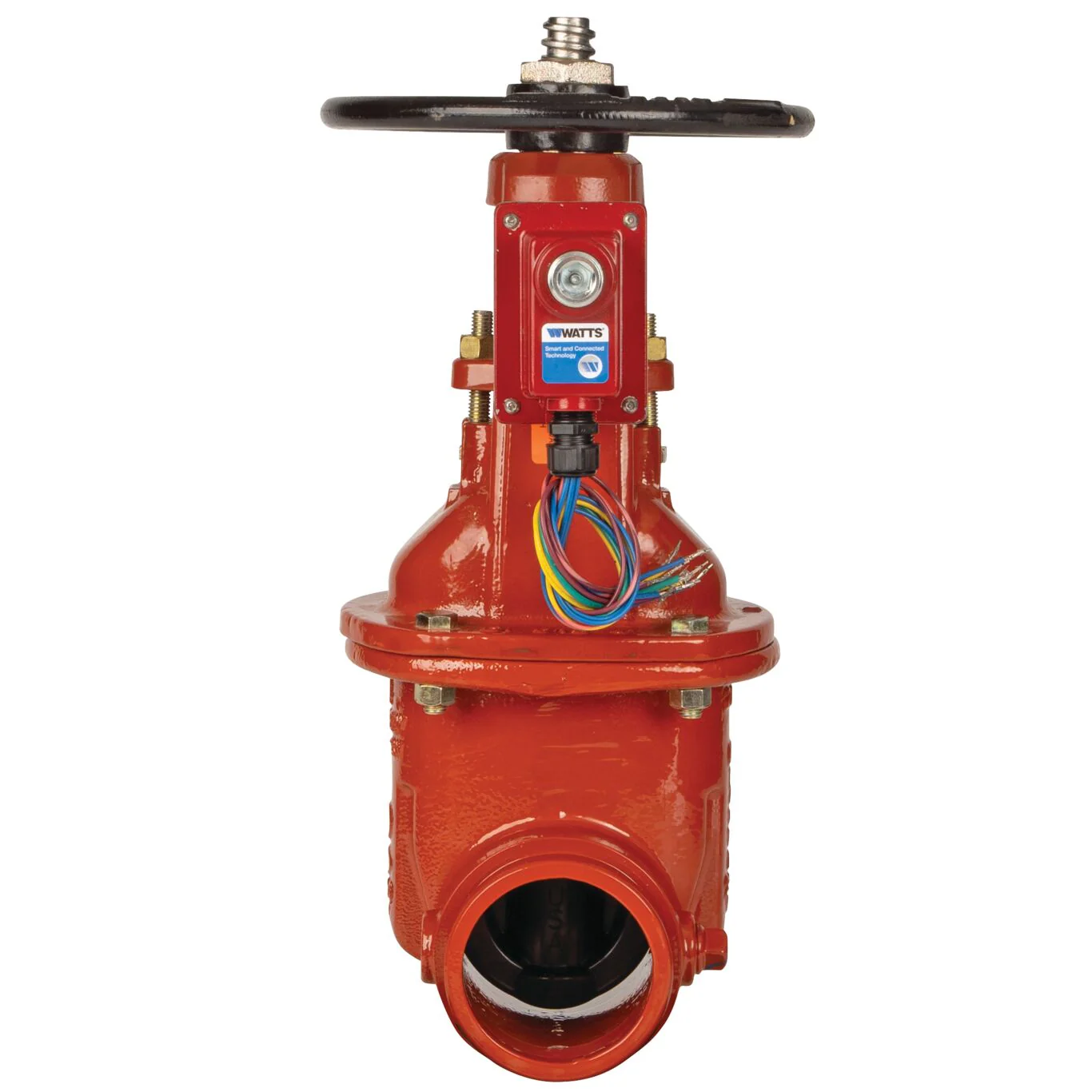

Watts GATE VALVE-TS-OSY GxG 8 - Part of the Gate Valve TS-OSY Series

This 8 IN OSY gate valve with groove by groove end connections includes a supervisory tamper switch to indicate the open or closed position of the OSY gate valve. This gate valve can be used in fire-service systems with fire protection backflow preventers.

Features

• Supervisory tamper switch indicates the open or closed position of the OSY gate valve
• Groove x Groove end connections
• For use in fire-service systems
• Factory calibrated to eliminate field calibration

Specifications
Body Material	Ductile Iron
Body Pattern	Straight
Bonnet Type	Flanged
Brand	Ames Fire & Waterworks
Class Rating	Does Not Apply To Product
Control Type	Handwheel
Disc Material	Cast Iron
EAN	098268571301
Epoxy Coating Type	None
Inlet Connection Size	8 IN
Inlet Connection Size-Metric	200 MM
Inlet Connection Type	Flanged Joint
Inlet Thread Type	Does Not Apply To Product
Lead Free	NO
Maximum Pressure-PSI	250
Maximum Temperature-Fahrenheit	140
Minimum Temperature - Celsius	0.00
Minimum Temperature-Fahrenheit	32
Outlet Connection Size	8 IN
Outlet Connection Type	Flanged Joint
Outlet Thread Type	Does Not Apply To Product
Part Number	7020395
Series	Gate Valve TS-OSY
Stem Shaft Material	Bronze
Stem Type	Rising
Valve Style	OSY
WOG Rating	250 PSI

• Specification Sheet - Gate Valve TS-OSY
• Specification Sheet - Gate Valve TS-OSY (French)
• Specification Sheet - Gate Valve TS-OSY (Spanish)

UPC - 098268571301
